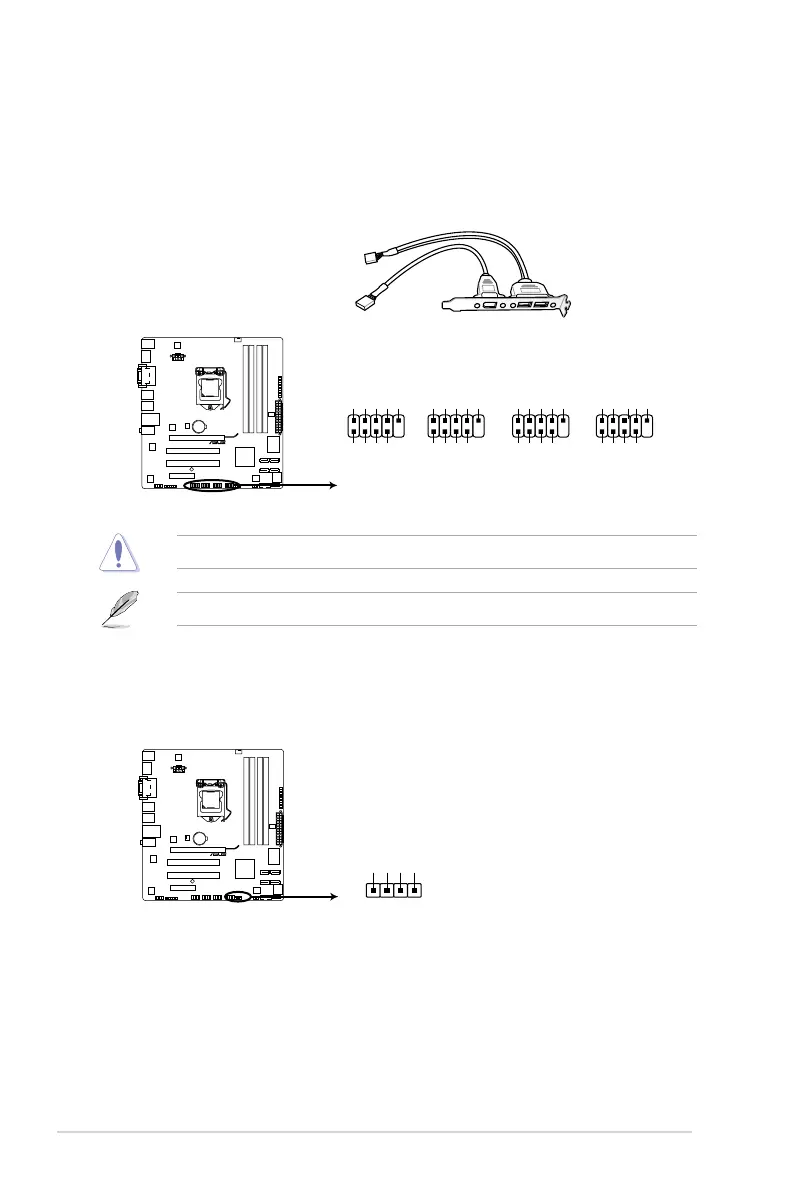

12. Speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
P8Q67-M DO/USB3/TPM
P8Q67-M DO/USB3/TPM Speaker connector
+5V GND GND Speaker Out
SPEAKER
PIN 1
11. USB connectors (10-1 pin USB78, USB910, USB1112, USB1314)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!
The USB module cable is purchased separately.
P8Q67-M DO/USB3/TPM
P8Q67-M DO/USB3/TPM USB2.0 connectors
PIN 1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
USB910
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
USB78USB1314
PIN 1
USB+5V USB_P12- USB_P12+ GND NC
USB+5V
USB_P11-
USB_P11+
GND
PIN 1
USB+5V USB_P14- USB_P14+ GND NC
USB+5V
USB_P13-
USB_P13+
GND
USB1112
