Asus P8Z77-V DELUXE User Manual

4-18
Chapter 4: Software support
Chapter 4

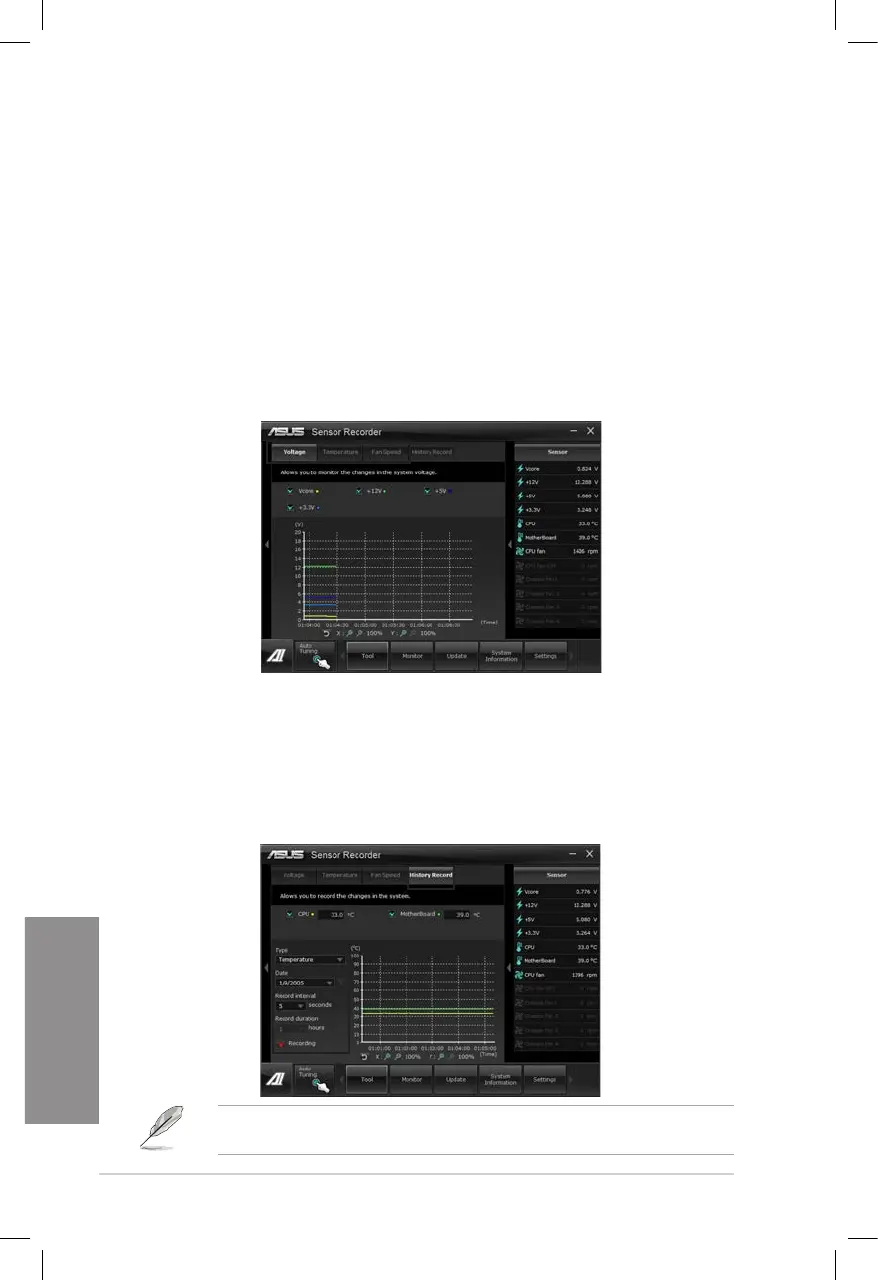

4.3.9 Sensor Recorder
Sensor Recorder monitors the changes in the system voltage, temperature, and fan speed on
a timeline. The History Record function allows you to designate specic time spans on record
to keep track of the three system statuses for certain purposes.
Launching Sensor Recorder
After installing AI Suite II from the motherboard support DVD, launch Sensor Recorder by
clicking Tool > Sensor Recorder on the AI Suite II main menu bar.
Using Sensor Recorder
Click on Voltage/ Temperature/ Fan Speed tabs for the status you want to monitor. Colored
lines will automatically appear on the diagram to indicate the immediate changes in the
system status.
Using History Record
1. Click on the History Record tab and adjust the settings on the left for Record Interval
and Record Duration according to need.
2. Click on Start Recording to start measurement and recording of each sensor.
3. To stop recording, click on Recording again.
4. To track the recorded contents, set Type/ Date/ Select display items to display the
history details.
Click on Monitor > Sensor on the AI Suite II main menu bar and a highlight of the system
statuses will appear on the right panel.

Asus P8Z77-V DELUXE Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Number of EATX power connectors	1
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Headphone outputs	5
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Audio chip	Realtek ALC898
Component for	PC
Motherboard chipset	Intel Z77
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	2560 x 1600 pixels
Parallel processing technology support	Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 slots	3
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
