Chapter 3: BIOS setup
Chapter 3
Graphics Conguration
Primary Display [Auto]
Allows you to select a primary display from IGPU, PCIe or PCI graphic devices, or select SG
for switchable GFX. Conguration options: [Auto] [IGFU] [PCIe] [PCI]
iGPU Memory [64M]
Allows you to set the iGPU memory size. Conguration options: [32M] [64M] [96M] [128M] ~
[448M] [480M] [512M] [1024M]
Render Standby [Enabled]
Allows you to enable or disable Render Standby by internal graphics devices. Conguration
options: [Disabled] [Enabled]
Initiate iGPU [Enabled]
Allows you to enable or disable the Internal Graphics Device Multi-Monitor Support for add-on
VGA devices.The iGPU shared memory size will be xed at 64MB. Conguration options:
[Disabled] [Enabled]
NB PCIe Conguration
Allows you to congure the NB PCI Express settings.
PCIE x16_1 [Auto]
Allows you to set the PCIE x16_1 link speed. Conguration options: [Auto] [Gen1] [Gen2]
[Gen3]
3.5.5 USB Conguration
The items in this menu allow you to change the USB-related features.
The USB Devices item shows the auto-detected values. If no USB device is detected, the
item shows None.
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit
Enables Legacy USB support. AUTO
option disables legacy support if no
USB devices are connected. DISABLE
option will keep USB devices
available only for EFI applications.
Back Advanced\ USB Conguration >

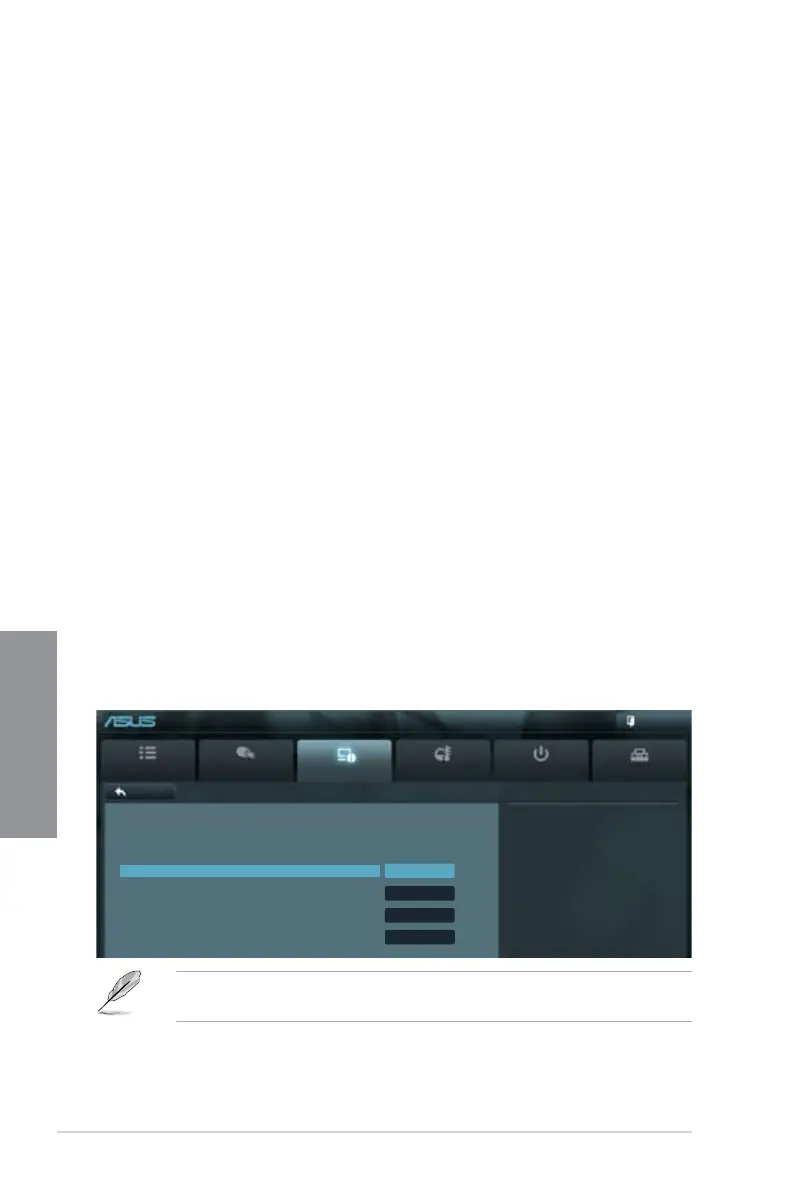

EFI BIOS Utility - Advanced Mode
USB Conguration
USB Devices:
1 Keyboard, 1 Mouse, 2 Hubs
Legacy USB Support Enabled
Legacy USB3.0 Support Enabled
Intel xHCI Mode Smart Auto
EHCI Hand-off Disabled

Asus P8Z77-V LX Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	-
Component for	PC
Motherboard chipset	Intel Z77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
Cables included	SATA
LAN controller	Realtek RTL8111E
Wi-Fi standards	Not supported
Networking features	10/100/1000 Mbit/sec
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	218 mm
Width	305 mm
