Asus Prime H270-Plus User Manual

1-8
Chapter 1: Product introduction

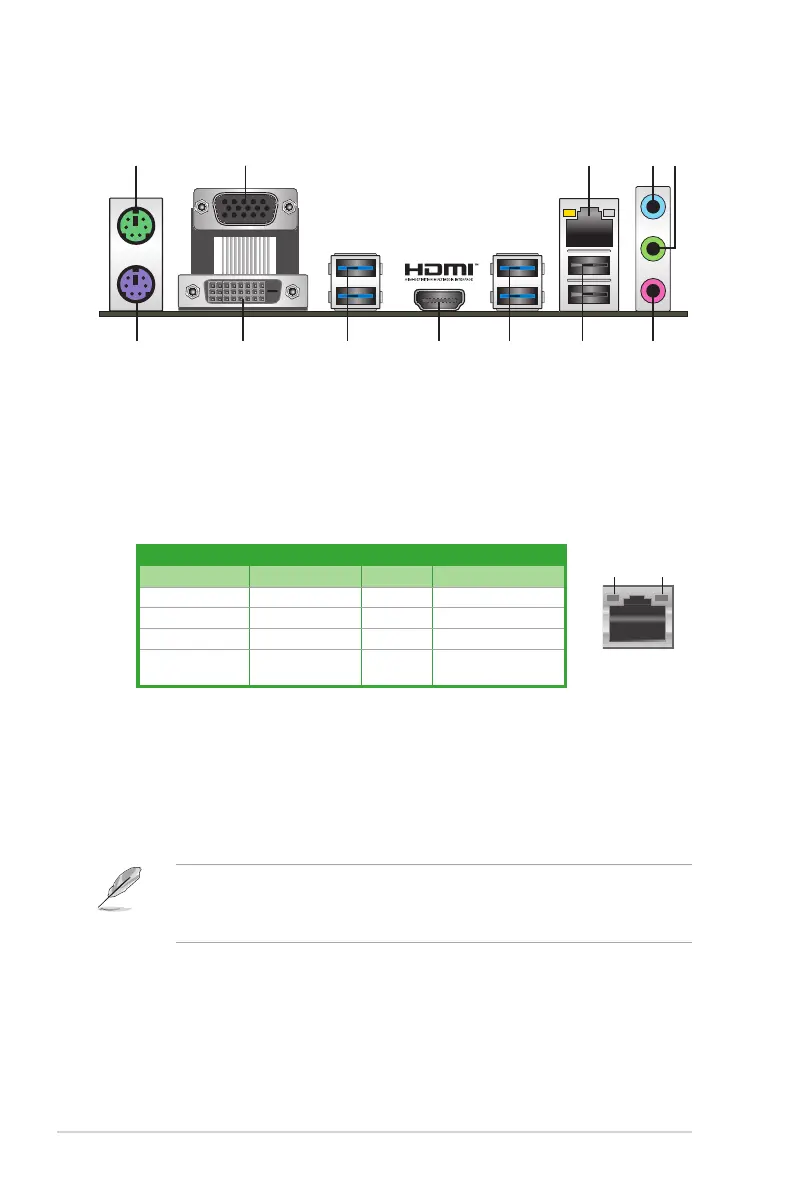

1.2.2 Rear panel connectors
4. Line In port (light blue).Thisportconnectsthetape,CD,DVDplayer,orotheraudio
sources.
5. Line Out port (lime).Thisportconnectsaheadphoneoraspeaker.In4.1-channel,
5.1-channel,and7.1-channelcongurations,thefunctionofthisportbecomesFront
SpeakerOut.
6. Microphone port (pink). This port connects a microphone.
To congure a 7.1-channel audio output:
 UseachassiswithHDaudiomoduleinthefrontpaneltosupporta7.1-channelaudio
output.
LAN port
Speed
LED
Activity Link
LED
Activity/Link LED Speed LED
Status Description Status Description
Off Nolink OFF 10Mbpsconnection
Orange Linked ORANGE 100Mbpsconnection
Orange(Blinking) Dataactivity GREEN 1Gbps connection
Orange(Blinking
thensteady)
Readytowake
upfromS5mode
10 68 7
2 4 53
8
1
11 9
1. PS/2 Mouse port (green).ThisportisforaPS/2mouse.
2. Video Graphics Adapter (VGA) port.This15-pinportisforaVGAmonitororother
VGA-compatibledevices.
3. LAN (RJ-45) port.ThisportallowsGigabitconnectiontoaLocalAreaNetwork(LAN)
throughanetworkhub.RefertothetablebelowfortheLANportLEDindications.
LAN port LED indications

Asus Prime H270-Plus Specifications

General

Form Factor	ATX
Chipset	Intel H270
CPU Socket	LGA 1151
Memory Slots	4
Maximum Memory	64GB
Memory Type	DDR4
Memory Speed	2400/2133 MHz
SATA 6Gb/s Ports	6
M.2 Slots	1
USB 3.0 Ports (Rear)	4
USB 3.0 Ports (Front)	2
USB 2.0 Ports (Rear)	2
USB 2.0 Ports (Front)	4
USB 2.0 Ports	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Realtek RTL8111H
Video Outputs	HDMI, DVI-D
