Asus Prime H270-Plus User Manual

1-10
Chapter 1: Product introduction
1.3 Central Processing Unit (CPU)
ThismotherboardcomeswithasurfacemountLGA1151socket
designedforthe7th/6thGenerationIntel®Core™i7/Core™i5/
Core™i3,Pentium®andCeleron®processors.
UnplugallpowercablesbeforeinstallingtheCPU.
• EnsurethatyouinstallthecorrectCPUdesignedforthe
LGA1151socketonly.DONOTinstallaCPUdesignedfor
LGA1150,LGA1155andLGA1156socketsontheLGA1151socket.
• Uponpurchaseofthemotherboard,ensurethatthePnPcapisonthesocketand
thesocketcontactsarenotbent.ContactyourretailerimmediatelyifthePnPcap
ismissing,orifyouseeanydamagetothePnPcap/socketcontacts/motherboard
components.
• Keepthecapafterinstallingthemotherboard.ASUSwillprocessReturnMerchandise
Authorization(RMA)requestsonlyifthemotherboardcomeswiththecaponthe
LGA1151socket.
• Theproductwarrantydoesnotcoverdamagetothesocketcontactsresultingfrom
incorrectCPUinstallation/removal,ormisplacement/loss/incorrectremovalofthePnP
cap.

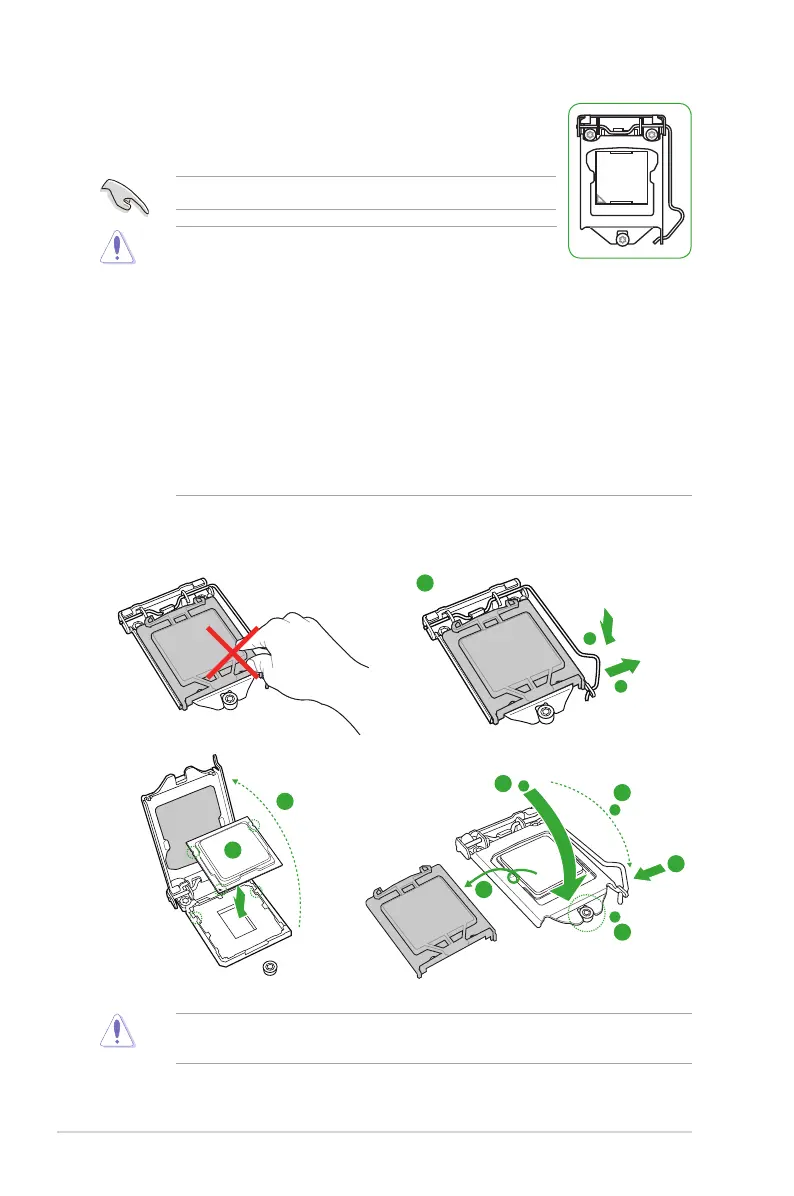

Installing the CPU
1
4
ApplytheThermalInterfaceMaterialtotheCPUheatsinkandCPUbeforeyouinstallthe
heatsink and fan if necessary.
2
3
A
B
A
B
C
D
5
4
4
5

Asus Prime H270-Plus Specifications

General

Form Factor	ATX
Chipset	Intel H270
CPU Socket	LGA 1151
Memory Slots	4
Maximum Memory	64GB
Memory Type	DDR4
Memory Speed	2400/2133 MHz
SATA 6Gb/s Ports	6
M.2 Slots	1
USB 3.0 Ports (Rear)	4
USB 3.0 Ports (Front)	2
USB 2.0 Ports (Rear)	2
USB 2.0 Ports (Front)	4
USB 2.0 Ports	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Realtek RTL8111H
Video Outputs	HDMI, DVI-D
