2.1 Building your PC system
The diagrams in this section are for reference only. The motherboard layout may vary with
models, but the installation steps are the same for all models.
Chapter 2: Basic Installation

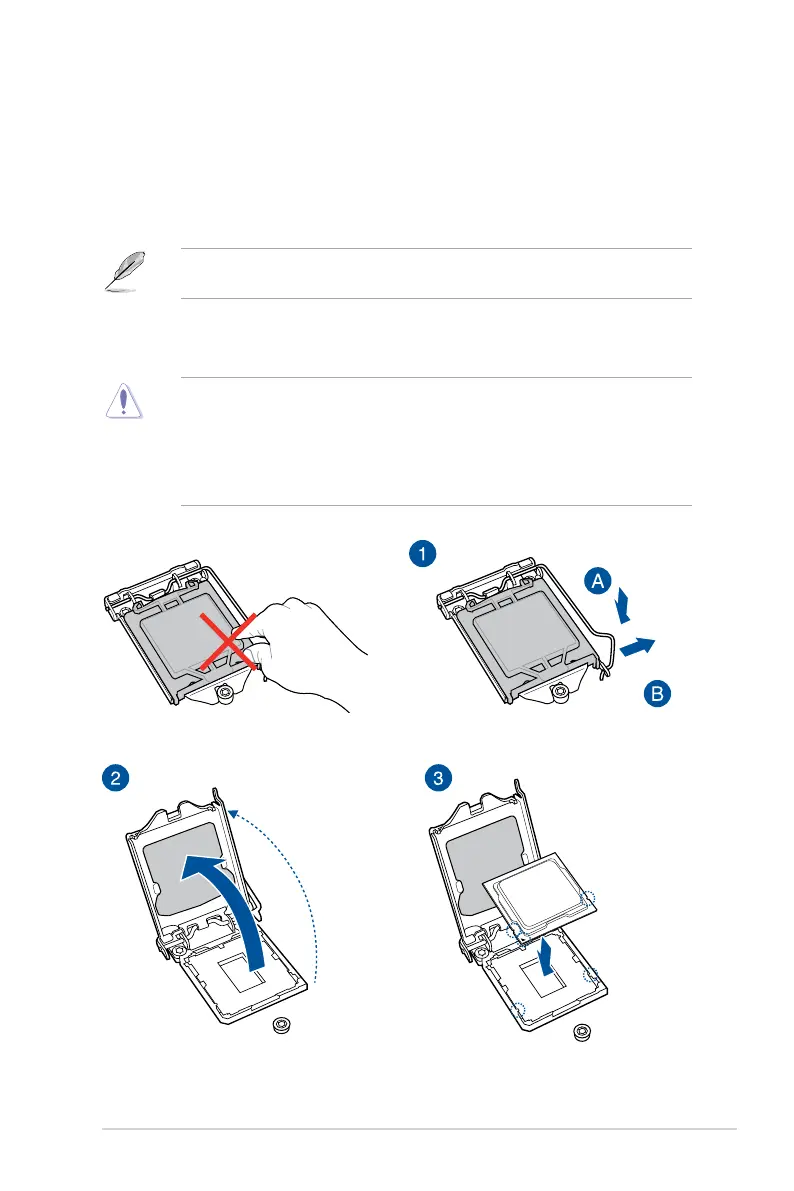

2.1.1 CPU installation
• Ensure that you install the correct CPU designed for LGA1200 socket only. DO
NOT install a CPU designed for LGA1155, LGA1156, and LGA1151 sockets on the
LGA1200 socket.
• ASUS will not cover damages resulting from incorrect CPU installation/removal,
incorrect CPU orientation/placement, or other damages resulting from negligence by
the user.

Asus ROG MAXIMUS XII FORMULA Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium, Intel Pentium G
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800 MHz
Supported storage drive interfaces	M.2, PCI Express, SATA
Parallel processing technology support	-
Number of SATA connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
S/PDIF out port	Yes
USB 2.0 ports quantity	0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.1
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel Z490
Audio output channels	7.1 channels
PCI Express x16 (Gen 3.x) slots	2
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
