Chapter 2: Basic Installation
Chapter 2

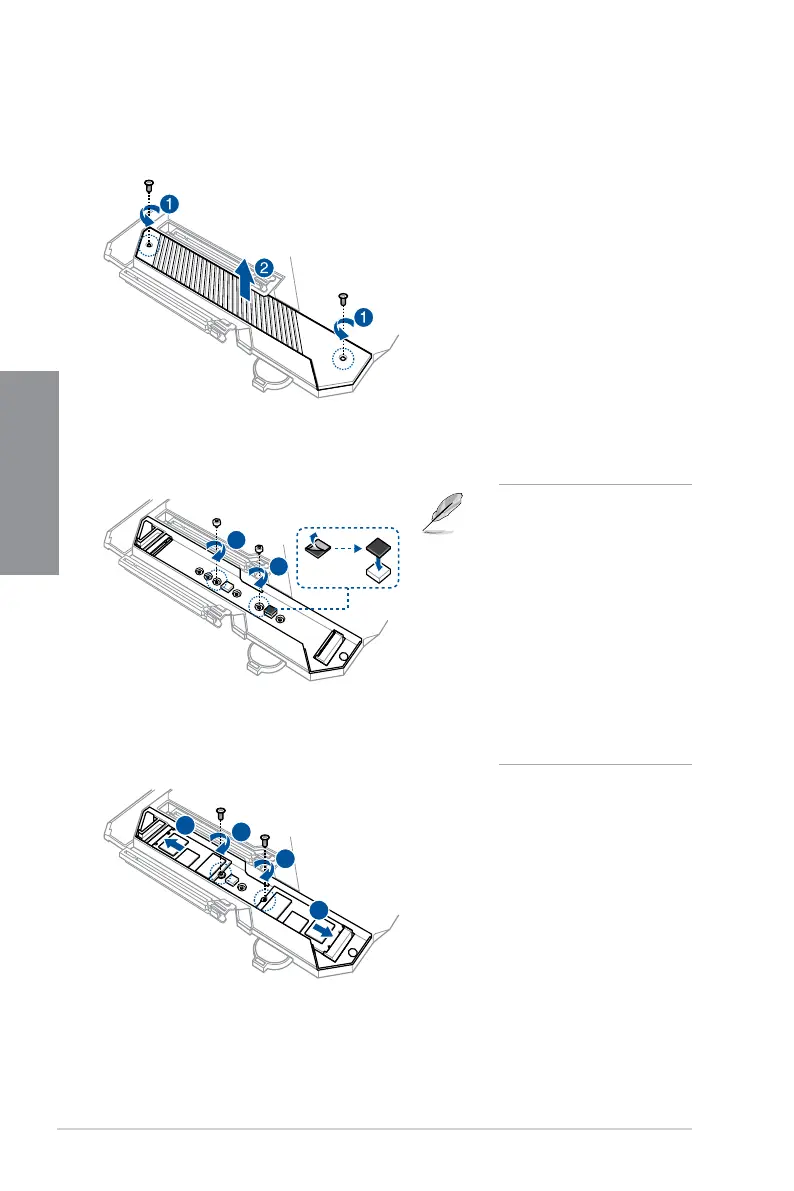

2.1.4 M.2 installation
M.2_1 and M.2_2 slot (Top side)
5
4
4
5
3
3
OPTIONAL
• The M.2 rubber pad is
optional for when installing
a single sided M.2 storage
device. Ensure to install the
bundled M.2 rubber pad
before installing your single
sided M.2 storage device.
• DO NOT install the bundled
M.2 rubber pads when
installing a double-sided
M.2 storage device. The
rubber pad installed by
default is compatible with
double sided M.2 storage
devices.

Asus ROG MAXIMUS XII FORMULA Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium, Intel Pentium G
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800 MHz
Supported storage drive interfaces	M.2, PCI Express, SATA
Parallel processing technology support	-
Number of SATA connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
S/PDIF out port	Yes
USB 2.0 ports quantity	0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.1
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel Z490
Audio output channels	7.1 channels
PCI Express x16 (Gen 3.x) slots	2
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
