Asus RT-AC86U Quick Start Guide

English
3

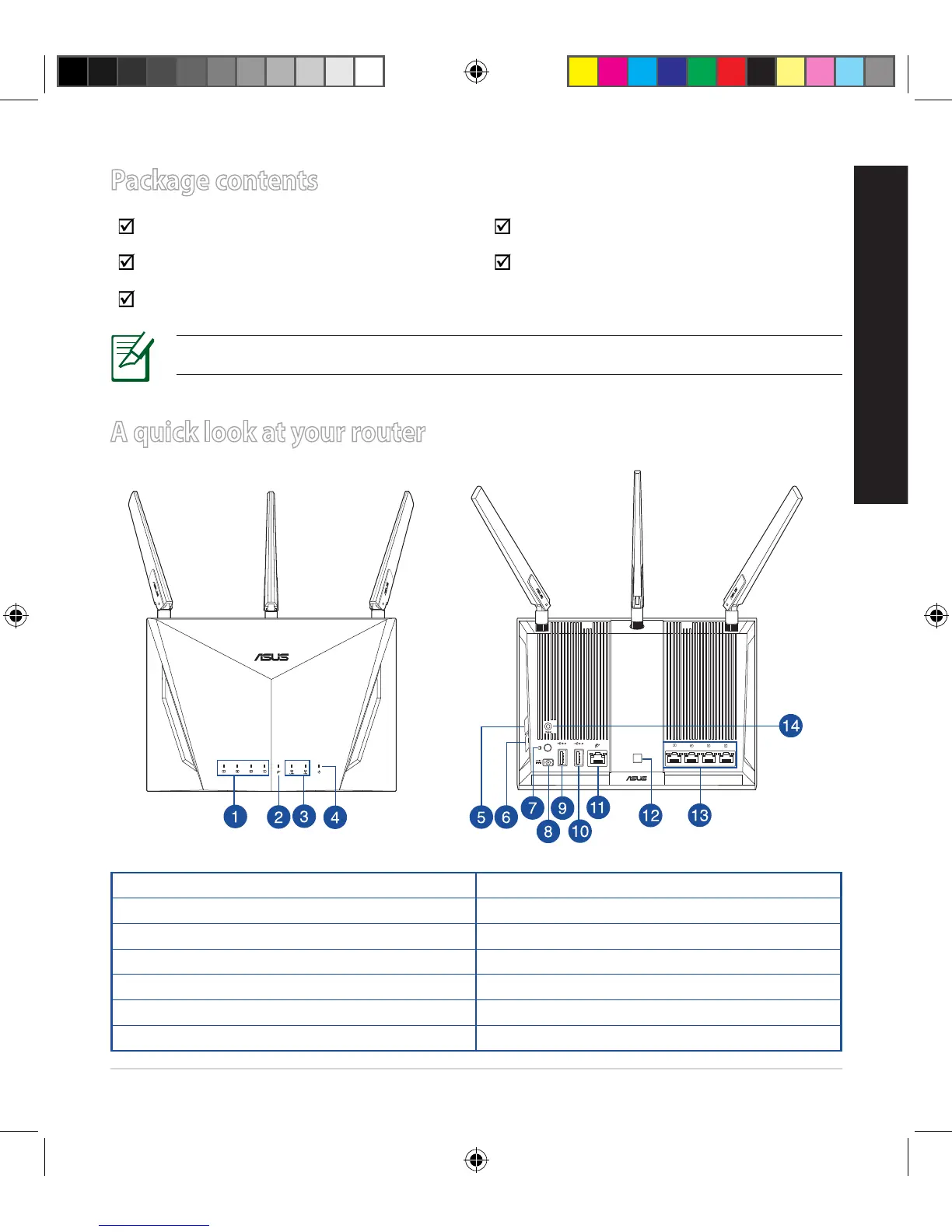

A quick look at your router
NOTE: If any of the items is damaged or missing, contact your retailer.
Package contents
RT-AC86U Wireless Router 3 * wireless antennas
AC adapter Network cable (RJ-45)
Quick Start Guide
1. LAN LED
8.
Power (DC-IN) port
2. WAN (Internet) LED
9.
USB 2.0 port
3. 2.4GHz / 5GHz Wi-Fi LED
10.
USB 3.0 port
4. Power LED
11.
WAN (Internet) port
5. WPS button
12.
LED On/O button
6. Wi-Fi On/O button
13.
LAN ports
7.
Power button
14.
Reset button
Q12549_RT-AC86U_QSG_172x144mm_EJT.indb 3 2017/5/16 15:39:21

Asus RT-AC86U Specifications

General

Modulation	1024-QAM
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Channel bandwidth	80 MHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	2917 Mbit/s
WLAN data transfer rate (first band)	750 Mbit/s
WLAN data transfer rate (second band)	2167 Mbit/s
VPN support	IPSec, PPTP, L2TP, PPTP, OpenVPN
Port forwarding	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Antennas quantity	4
Antenna gain level (max)	3 dBi
Certification	Event
Processor cores	2
Processor frequency	1800 MHz
Memory card slot(s)	No
USB 2.0 ports quantity	1
Security algorithms	64-bit WEP, 128-bit WEP, IPSec, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, WAN, WLAN, WPS
Output current	1.75 A
Output voltage	19 V
AC input voltage	110 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Cables included	LAN (RJ-45)
Storage temperature (T-T)	0 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	50 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	83.3 mm
Width	220 mm
Height	160 mm
Weight	872 g
