Asus RT-N12E User Manual

21
Chapter 4: Conguring via the web GUI RT-N12 LX
4
Conguring the
advanced settings

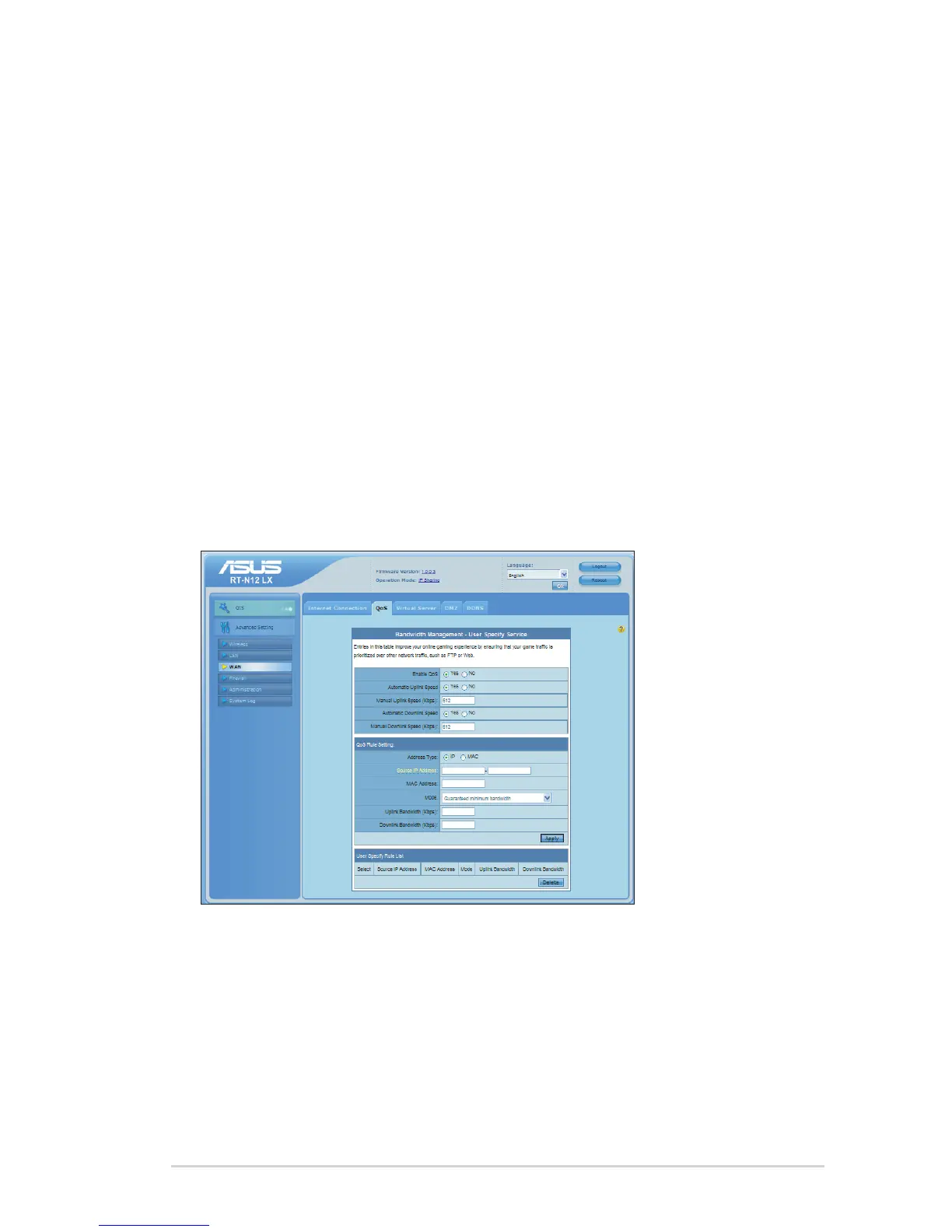

Managing bandwidth with QoS
QoS enables you to set the bandwidth priority and manage the network trafc.
To set up the bandwidth priority:
1. From the left navigation menu, click Advanced Setting > WAN > QoS tab.
2. Tick Yes in the Enable QoS eld.
3. To manage the network trafc, select IP or MAC in the Address Type eld.
4. Click Apply to save the settings.

Asus RT-N12E Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Input current	0.5 A
Rack mounting	-
WLAN data transfer rates supported	1, 2, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Antenna gain level (max)	2 dBi
Security algorithms	WEP, WPA, WPA2, WPS
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, Metallic
LED indicators	LAN, Power, WAN

Weight and Dimensions

Depth	168 mm
Width	124 mm
Height	30 mm
Weight	210 g
