2-2 Chapter 2: Setup
2.3 Detaching the arm/base
(for VESA wall mount)
The detachable arm/base of the VW202xR/VW202B LCD monitor is specially
designed for VESA wall mount.
To detach the arm/base:

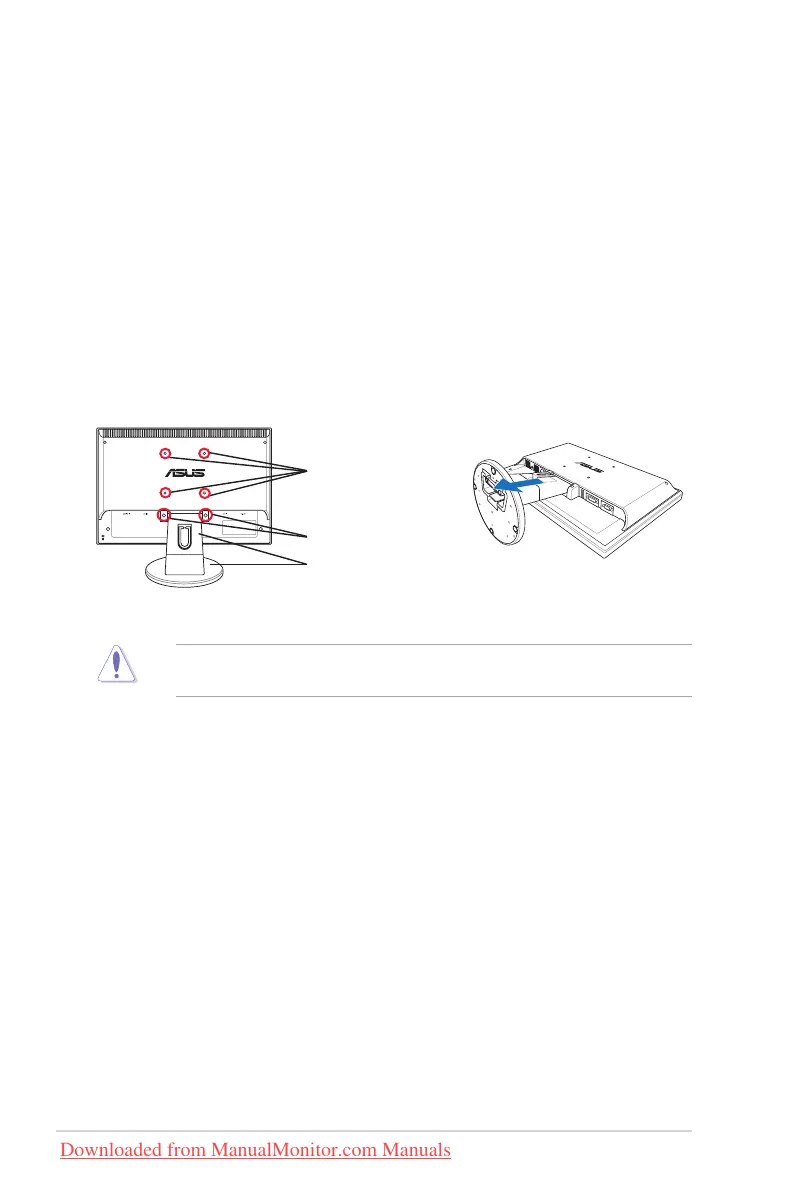

1. Have the front of the monitor face down on a table.
2. Remove the rubbers in the four screw holes (Figure 1).
3. Use a screwdriver to remove the two screws on the arm (Figure 1), then slide
out the arm/base to detach it from the monitor (Figure 2).
We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
Arm/base
Rubbers in the
screw holes
Two screws
Figure 1
Figure 2
