7.4. Assembly Procedure
Information in this section is to perform the assembly procedure of the LCD monitor.
ASUS VW224U LCD monitor consists of various subsystems. This section describes the procedures for LCD
monitor assembly. In addition, the detailed assembly procedures of individual modules will be provided for your
service needs.
The assembly procedure consists of the following steps:
Bezel Subsystem
Main Subsystem
Stand Subsystem
7.4.1 Bezel Subsystem

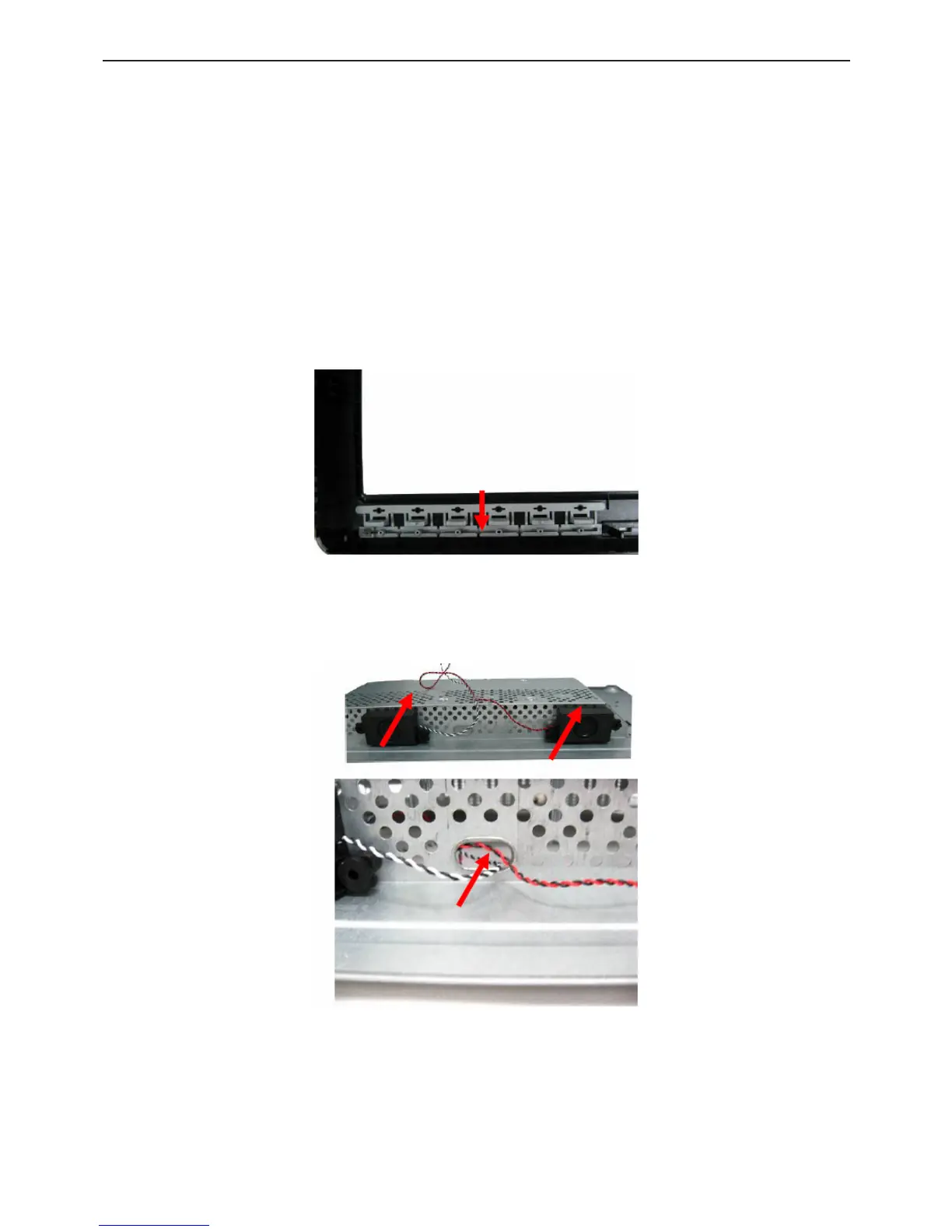

1. Assemble the KEY PAD onto the LCD BEZEL.
7.4.2 Main Subsystem
Speaker Module
1. Install the SPEAKER and spread the SPEAKER CABLE through the hole.
