Service Manual ASUS VW224U&VW224S
59
8. ISP Instruction
8.1 The tool for ISP
1) An i486 (or above) personal computer or compatible.
2) Microsoft operation system Windows 95/98/2000/XP.
3) “ISP_Tool V4.1.5” program
4) Software ISP SN Alignment kits
The kit contents:
a) ISP BOARD x1
b) Printer cablex1
c) VGA CABLE X1

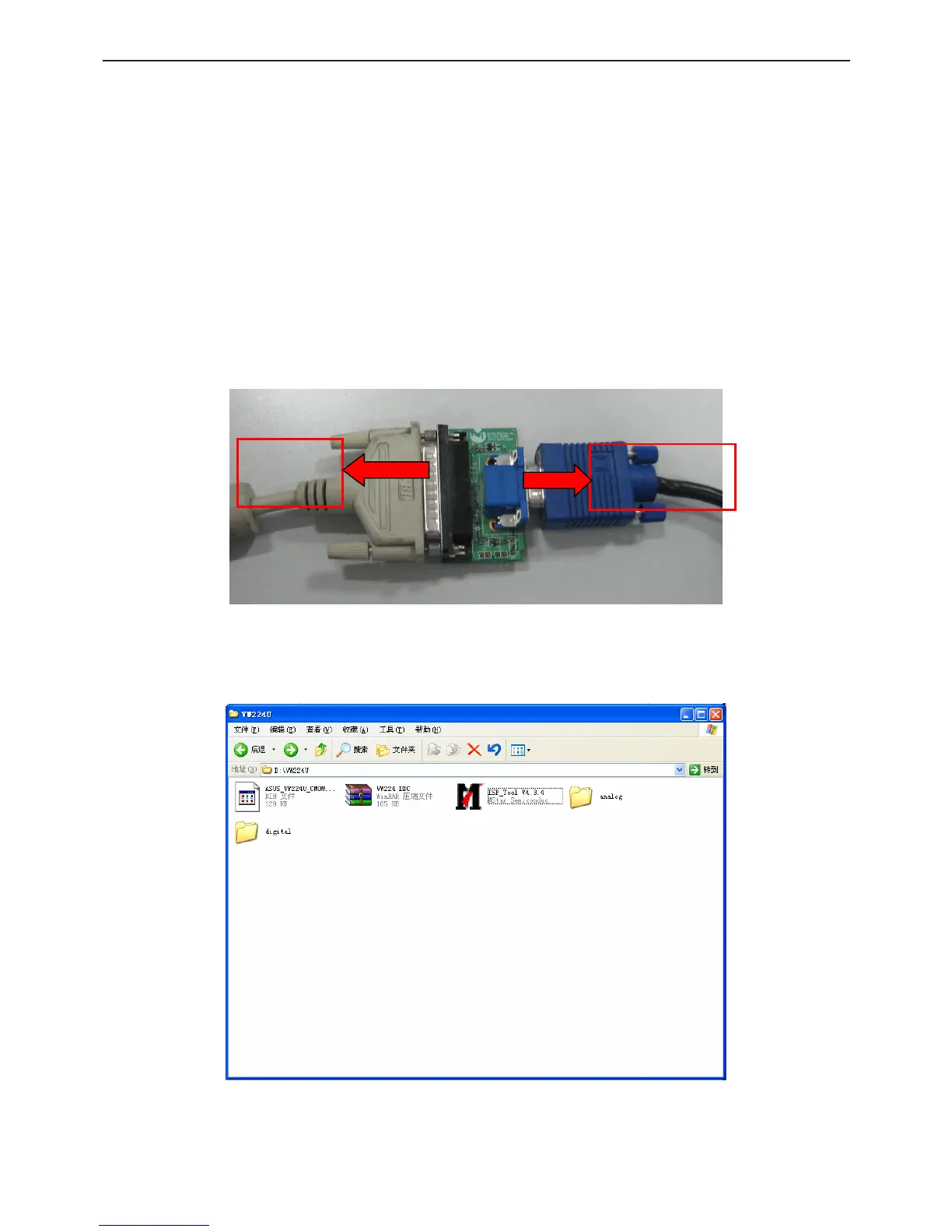

8.2 Connect the ISP board as follow:
8.3 The process of ISP write is as follows:
Connect to
the PC LPT
Connect to the
ASUS VW224U
To Next Page
