Water Pump Max. Duty Cycle (%) [100]
Use the <+> or <-> keys to adjust the maximum Extension Fan 1-3 duty
cycle. The values range from 20% to 100%. When the CPU temperature
reaches the upper limit, the Water Pump will operate at the maximum duty
cycle.
Water Pump Middle Temperature [45]
Use the <+> or <-> keys to adjust the middle limit of the Water Pump
temperature. The values range from 20 to 75.
Water Pump Middle. Duty Cycle (%) [20]
Use the <+> or <-> keys to adjust the maximum Water Pump duty cycle.
The values range from 20% to 100%. When the CPU temperature reaches
the upper limit, the Water Pump will operate at the maximum duty cycle.
Water Pump Lower Temperature [20]
Use the <+> or <-> keys to adjust the lower limit of the Water Pump
temperature. The values range from 20 to 75. The Water Pump will operate
at the minimum duty cycle when the temperature is lower than the limit.
Water Pump Min. Duty Cycle(%) [20]
Use the <+> or <-> keys to adjust the minimum Water Pump duty cycle.
The values range from 0% to 100%. When the CPU temperature is under
the limit, the Water Pump will operate at the minimum duty cycle.
Anti Surge Support [On]
Enable this item for Over Voltage Protection (OVP) and Under Voltage Protection (UVP)
functions.
Conguration options: [On] [Off]

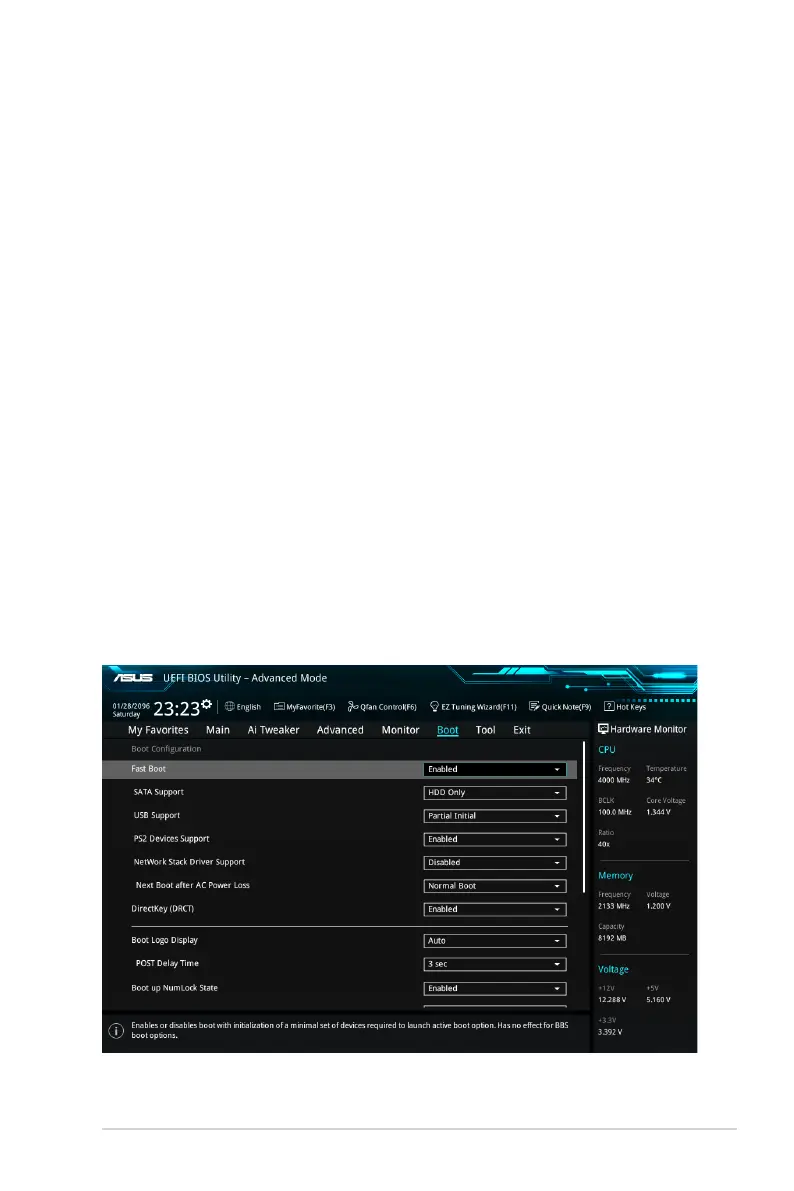

2.8 Boot menu
The Boot menu items allow you to change the system boot options.

Asus Z170-E Specifications

General

Chipset	Intel Z170
Socket	LGA 1151
Form Factor	ATX
Memory Slots	4
Memory Type	DDR4
Maximum Memory	64 GB
Memory Speed	DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz
PCI Express x16 Slots	2
PCI Express x1 Slots	3
SATA Ports	6 x SATA 6Gb/s
M.2 Slots	1
USB 3.0 (Gen 1)	6
USB 2.0	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Intel I219V, 1 x Gigabit LAN Controller(s)
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	AMD CrossFireX
USB 3.1 (Gen 2)	2 (1 x Type-A + 1 x Type-C)
