ASUS Z170-E Series
2-35
CPU C6 Report [Enabled]
This item allows you to disable or enable the CPU C6 report to the
operating system.
Conguration options: [Enabled] [Disabled]
Package C State Limit [Auto]
This item allows you to set the a C-state limit for the CPU package.
Conguration options: [C0/C1] [C2] [C3] [C6] [C7] [C7s] [Auto]
CFG Lock [Enabled]
This item allows you to disable or enable the CFG Lock.
Conguration options: [Enabled] [Disabled]

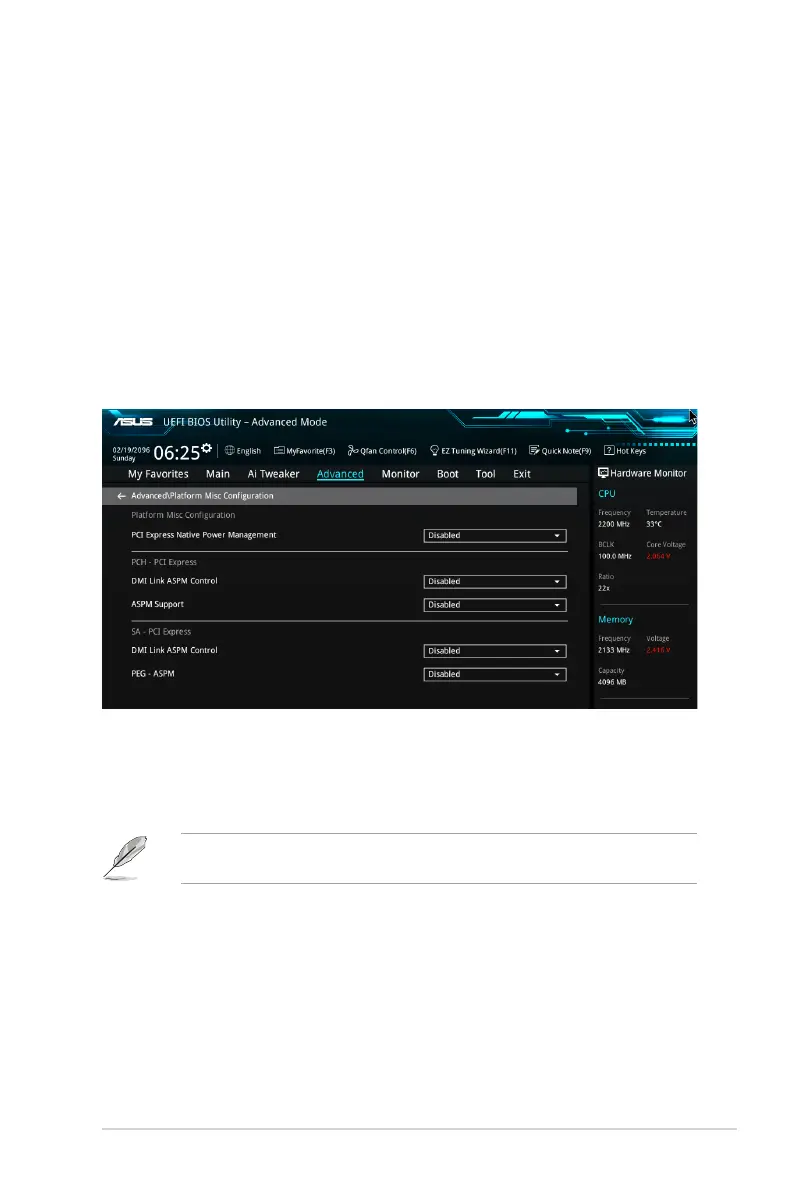

2.6.2 Platform Misc Configuration
The items in this menu allow you to congure the platform-related features.
PCIE Native Power Management [Disabled]
This item allows you to enhance the power saving feature of PCI Express and perform ASPM
operations in the operating system.
Conguration options: [Disabled] [Enabled]
The following item appears only when you set the PCI Express Native Power Management
to [Enabled].
Native ASPM [Disabled]
[Enabled] Windows
®
Vista OS controls the ASPM (active state power
management) support for devices.
[Disabled] BIOS controls the ASPM support for the device.

Asus Z170-E Specifications

General

Chipset	Intel Z170
Socket	LGA 1151
Form Factor	ATX
Memory Slots	4
Memory Type	DDR4
Maximum Memory	64 GB
Memory Speed	DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz
PCI Express x16 Slots	2
PCI Express x1 Slots	3
SATA Ports	6 x SATA 6Gb/s
M.2 Slots	1
USB 3.0 (Gen 1)	6
USB 2.0	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Intel I219V, 1 x Gigabit LAN Controller(s)
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	AMD CrossFireX
USB 3.1 (Gen 2)	2 (1 x Type-A + 1 x Type-C)
