ASUS Z170-E Series
2-67

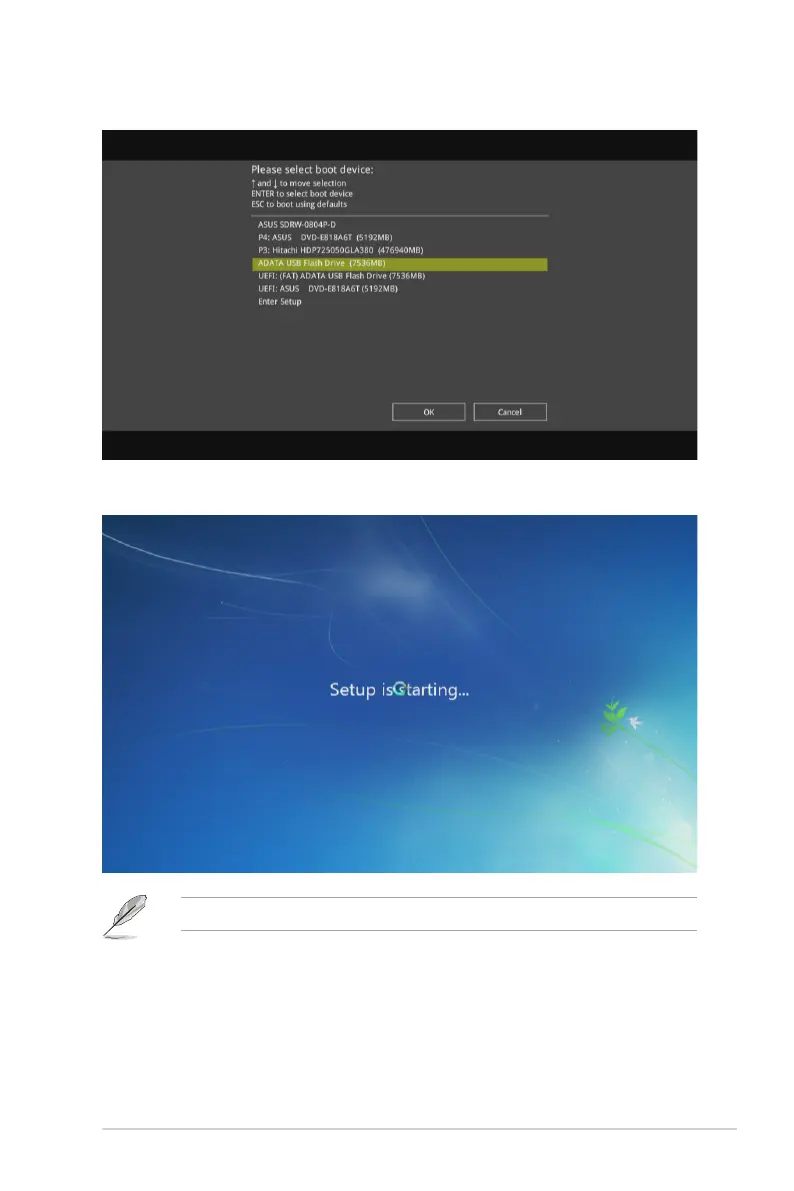

6. The USB 3.0 driver will be loaded automatically during installation startup.
The “Setup is starting...” screen will show up if the USB 3.0 driver is loaded correctly.
7. Follow the onscreen instructions to complete the Windows
®
7 installation.
5. Select the USB ODD or USB storage device as the boot device.

Asus Z170-E Specifications

General

Chipset	Intel Z170
Socket	LGA 1151
Form Factor	ATX
Memory Slots	4
Memory Type	DDR4
Maximum Memory	64 GB
Memory Speed	DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz
PCI Express x16 Slots	2
PCI Express x1 Slots	3
SATA Ports	6 x SATA 6Gb/s
M.2 Slots	1
USB 3.0 (Gen 1)	6
USB 2.0	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Intel I219V, 1 x Gigabit LAN Controller(s)
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	AMD CrossFireX
USB 3.1 (Gen 2)	2 (1 x Type-A + 1 x Type-C)
