Instruction book
2.3 Control piping
CR 2 to 15 hp
Air drawn through the air filter and inlet silencer into cylinders is compressed, then discharged through the
cooler piping and “and check valve / unloader valve” into the air receiver.

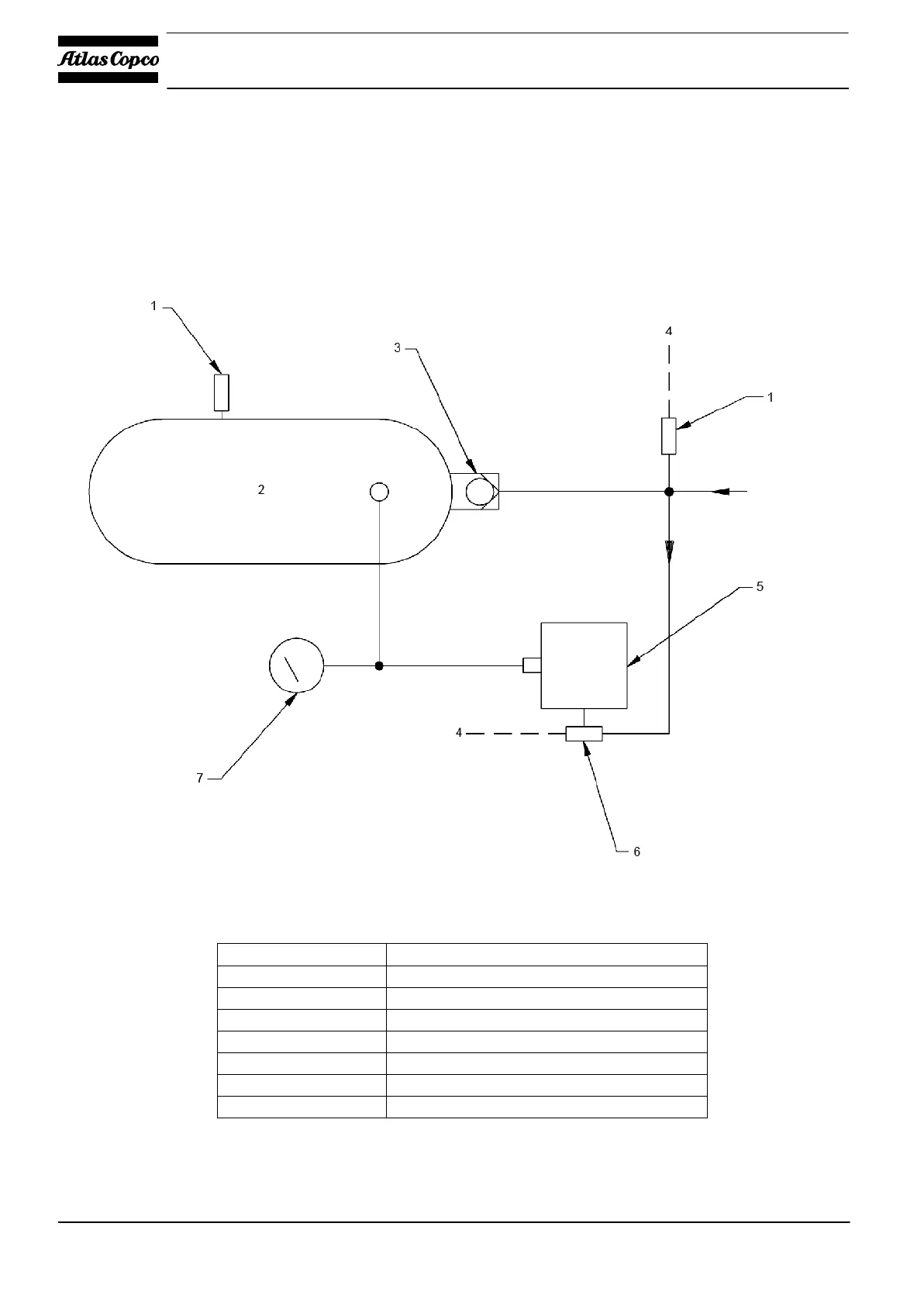

Control piping and regulating system with automatic start/stop
Reference
Description
1
Pressure relief valve
2
Air receiver
3
Discharge line check valve
4
Vent
5
Pressure switch
6
Pressure release valve on pressure switch
7
Pressure gauge
From
compressor
discharge
