Reference Description
A Air inlet
B Air outlet
1 Compressor
2 Hot gas valve (on F18-400)
3 High pressure switch (on F45-400)
4 Air condenser
5 Fan motor
6 Filter dryer
7 Expansion valve (on F6-11)
Expansion capillary (on F18-400)
8 Evaporator
9 Liquid separator (on F200-400)
10 Air-air exchanger
11 Separator
12 Drain valve
13 Digital controller
Description
Compressor (1) delivers hot, high-pressure refrigerant gas which flows through condenser (4)
where most of the refrigerant condenses.
The liquid flows through the refrigerant filter (6) to Expansion valve/capillary (7). The refrigerant
leaves the capillary tube at evaporating pressure.
The refrigerant enters evaporator (8) where it withdraws heat from the compressed air by further
evaporation at constant pressure. The heated refrigerant leaves the evaporator and is sucked in by
the compressor (1).
2.4 Automatic regulation system

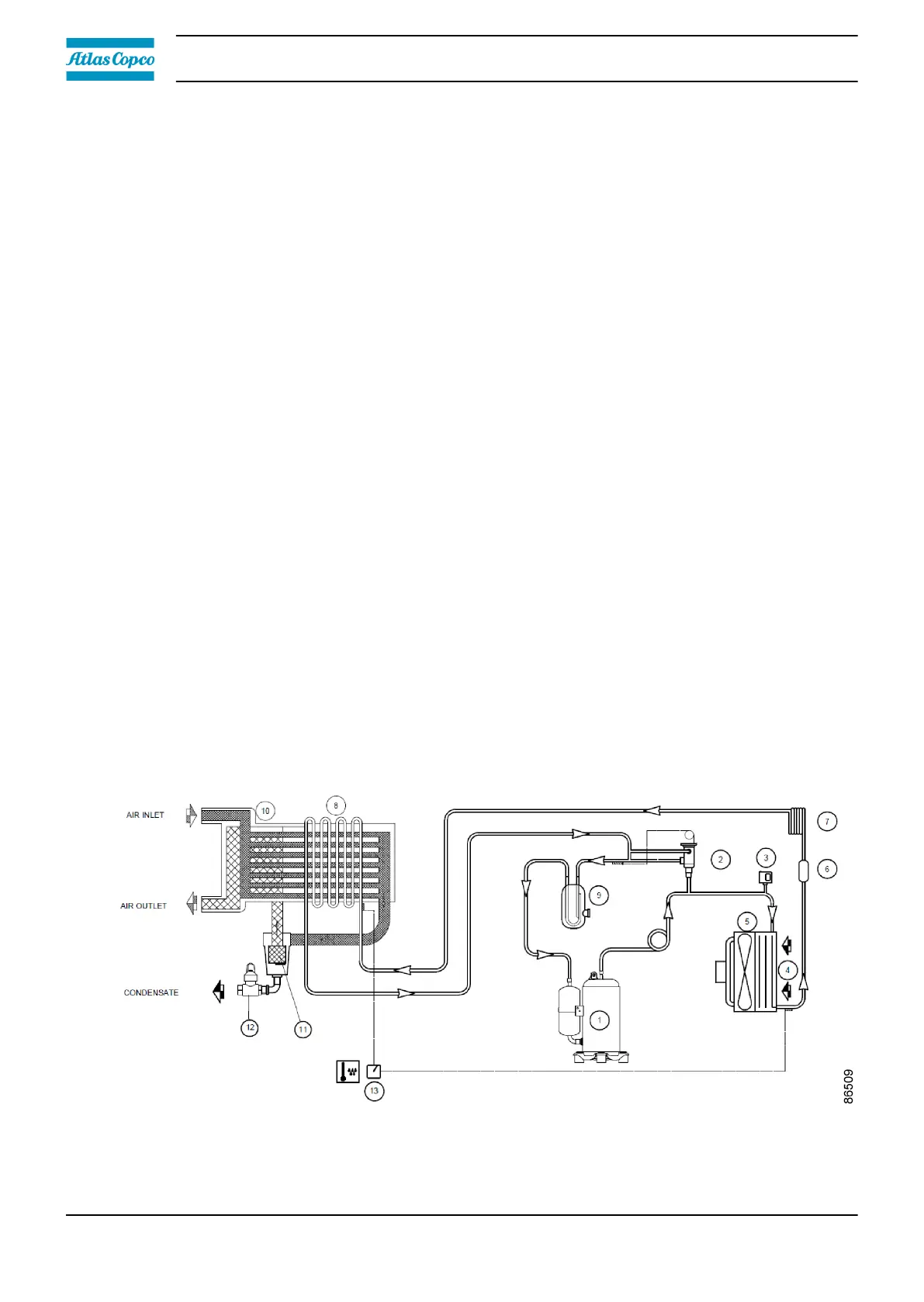

Air and refrigerant flow diagram
Reference Description
A Air inlet
B Air outlet
Instruction book
14 2920 7210 40
