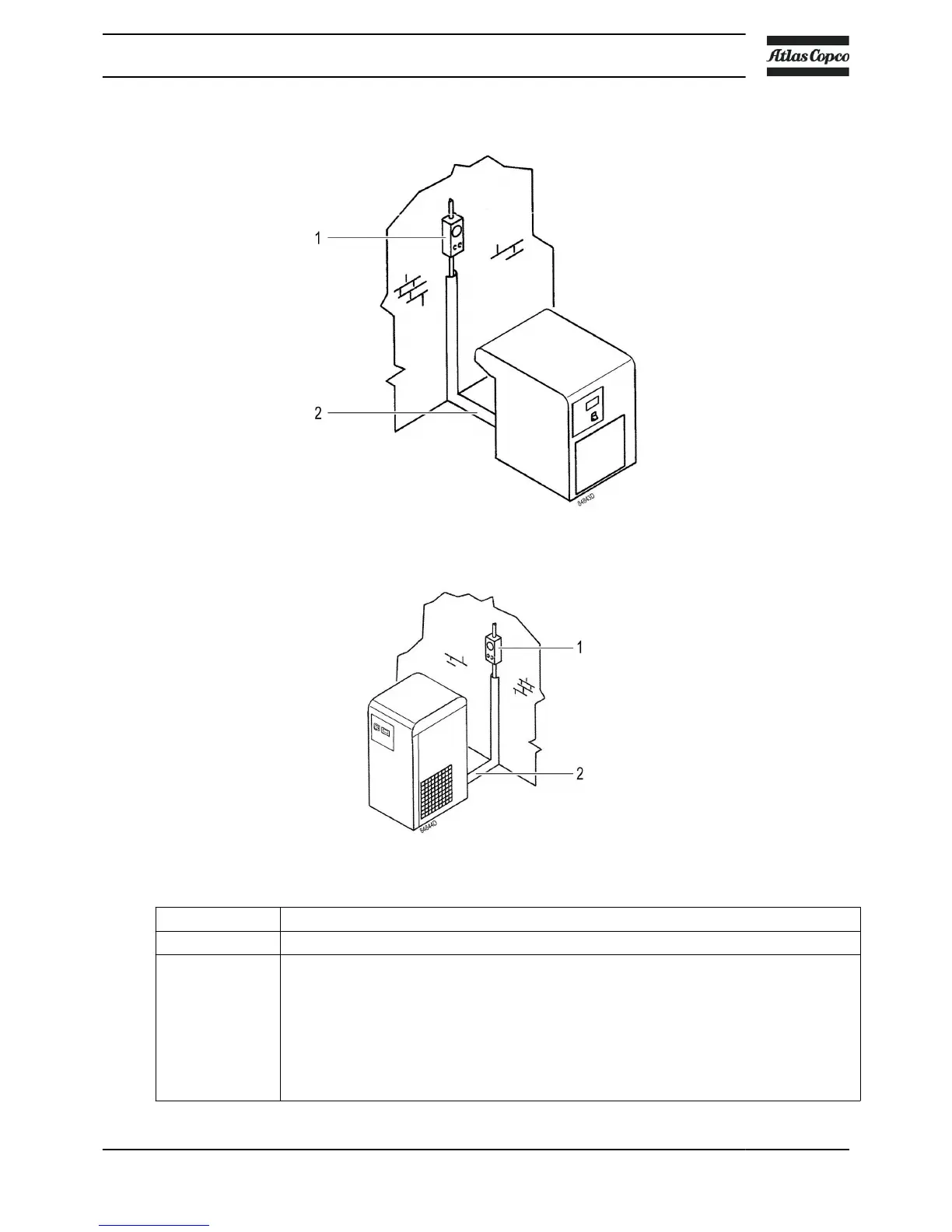

Example of compressor/dryer room
Installation proposal for FX 1 up to FX 5
Installation proposal for FX 6 up to FX 12
Reference Description
- Install the refrigerant air dryer on a level floor, suitable for its weight.
- The recommended minimum distance between the top of the unit and the ceiling is 1.5
m (58.5 in).
The minimum distance between the wall and the back of the dryer must be 1.5 m (58.5
in).
Lay out the condensate drain hose via a funnel towards a drain collector to allow visual
inspection. The hose must slope downwards.
If the condensate drain has been fitted outside the dryer room where it may be exposed
to freezing temperatures, it must be insulated.
Instruction book
2920 7112 40 15
