Reference Description
- The power cable must be connected by a qualified electrician.
Connect the dryer to the correct voltage; if necessary, check the unit data plate.
Check that the electrical installation corresponds to local codes. The dryer must be
earthed and protected against short circuits using an automatic cut-out device with a
differential device.
An isolating switch must be installed near the dryer.
- Connect the compressed air lines to the marked inlet and outlet pipes of the dryer (see
Dimension drawings). Provide an air inlet valve and outlet valve. If a bypass pipe and
valve are installed, the dryer can be serviced while it is bypassed.
1 Location of isolating switch and fuses.
2 Minimum distance 1.5 m (58.5 in).

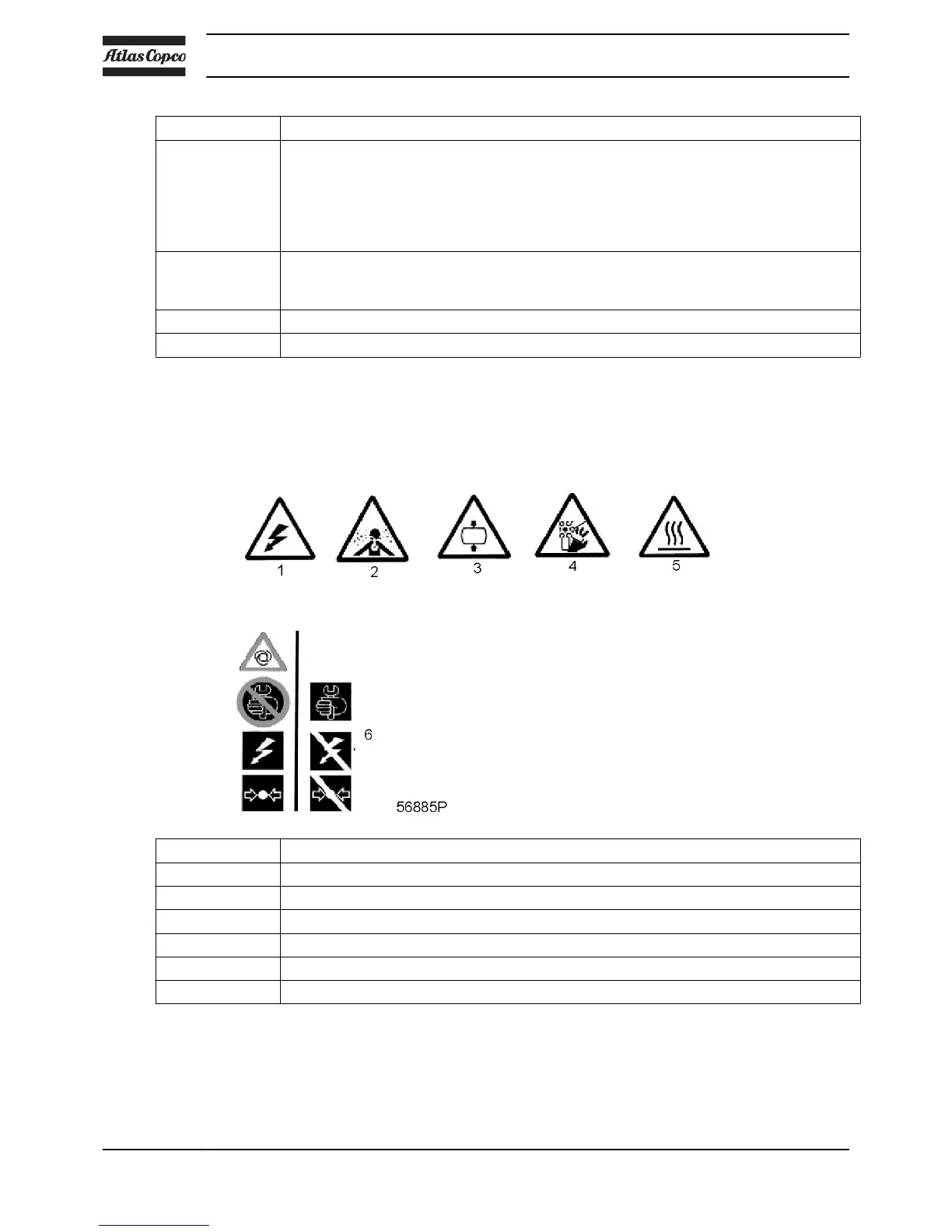

3.3 Pictographs
Pictographs
Reference Name
1 Warning, under tension
2 Warning, air not fit for breathing
3 Warning, high pressure
4 Warning, rotating fan
5 Warning, hot surface
6 Switch off the voltage and depressurize the dryer before maintenance or repair
Instruction book
16 2920 7112 40
