Instruction book

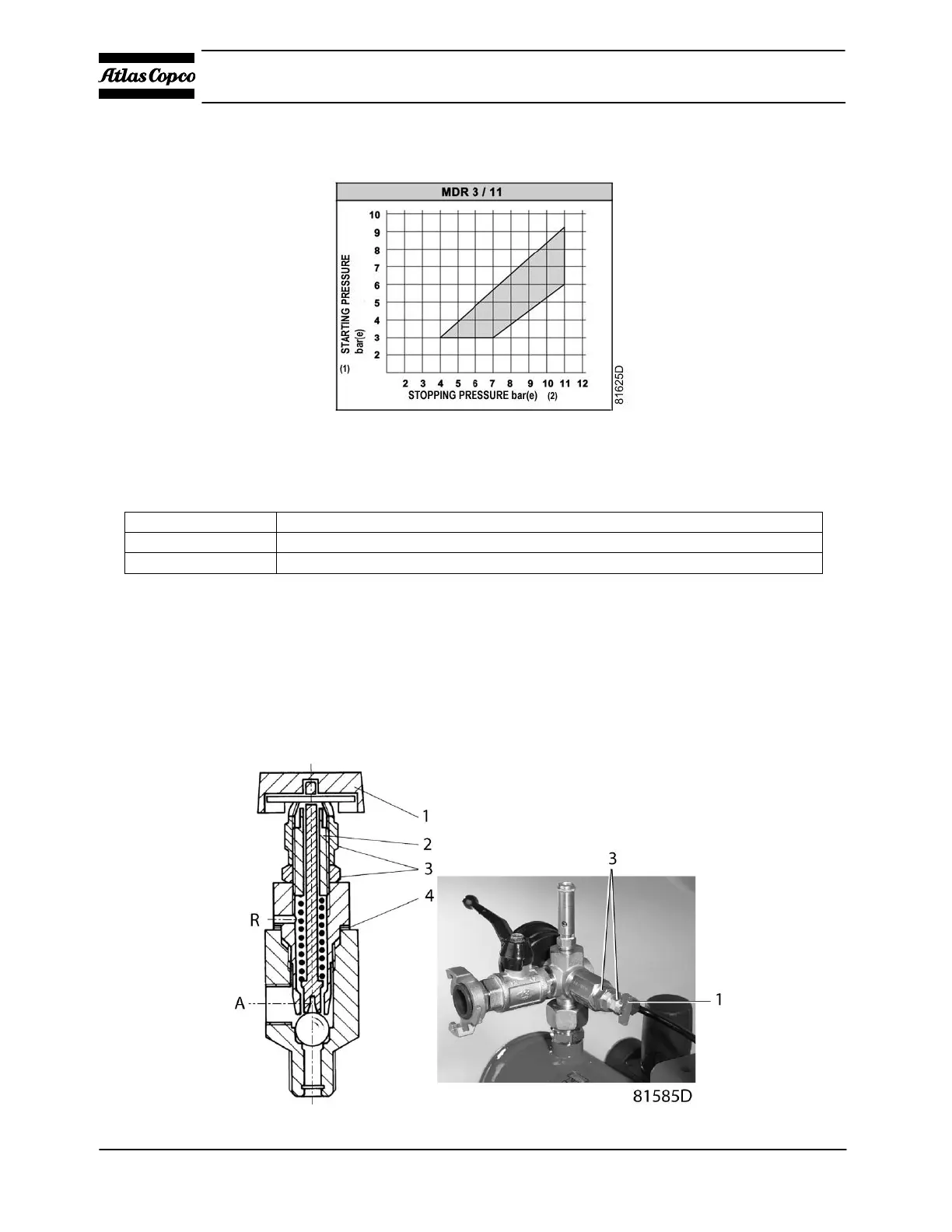

Pressure difference diagram, MDR3/11 (10 bar units)
Example:
 Stopping pressure: 7 bar(e)
 Starting pressure: adjustable between 3 and 5.7 bar(e)
Ref Name
1
Starting pressure - bar(e)
2
Stopping pressure - bar(e)
6.6 Adjustment of pilot valve on Trolley
The adjustment of the maximum or unloading pressure of the compressor is effected by means of pilot valve
(RV) The valve also controls the difference between the preset maximum pressure and that at which
compression is resumed.
Pilot valve on Trolley
