3.2 Installation proposal
General
Install the oilless compressor in a cool, frost-free and well-ventilated place. The air should be clean and
preferably at normal room temperature. Keep the inlet and outlet openings of the unit free.

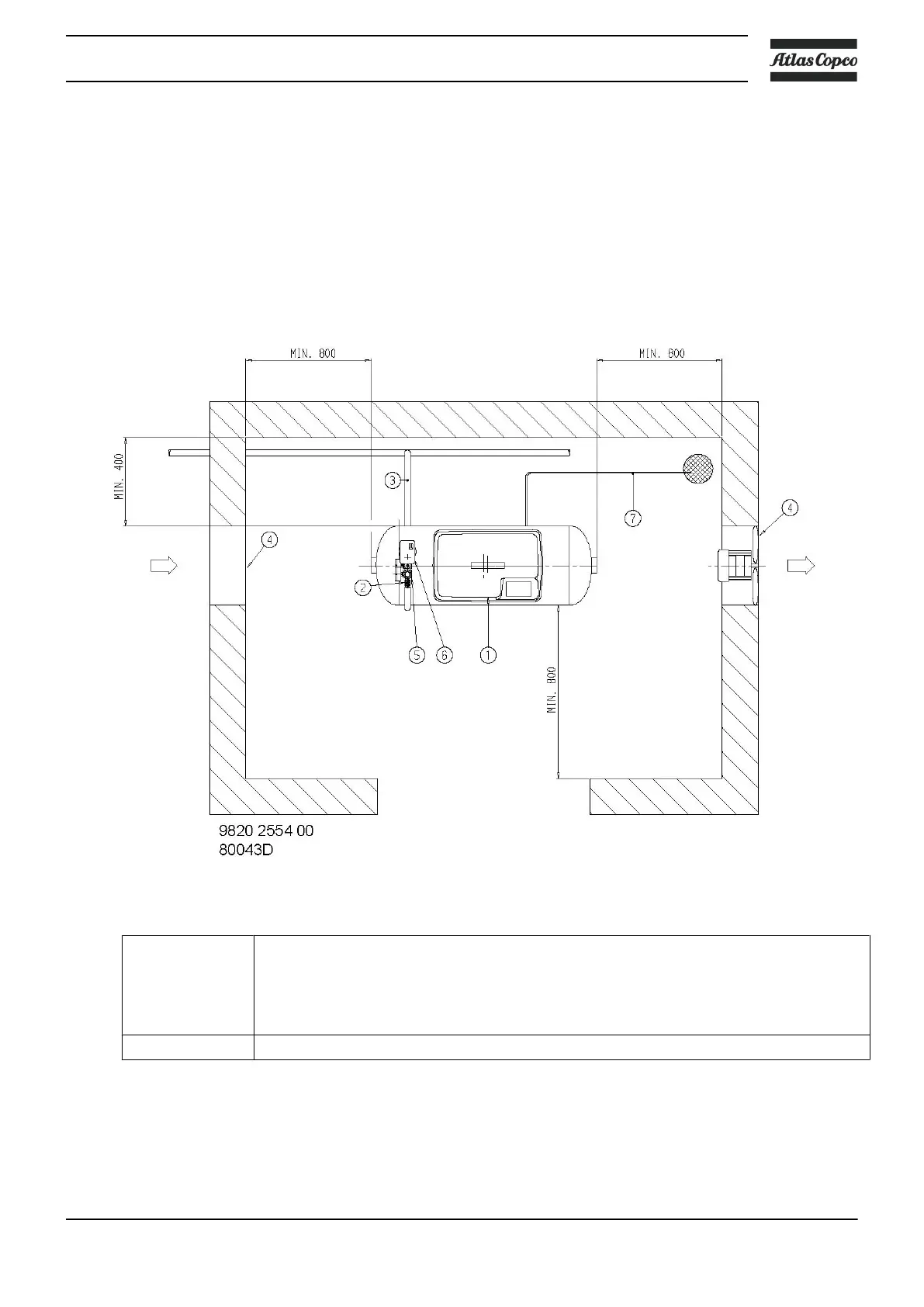

Compressor room example
Description
1 The unit should be installed on a level floor capable of taking the weight of the compressor.
Recommended minimum distance between top of the unit and ceiling is 1100 mm. (42.9
in.)
Distances between unit and walls stated are minimum.
The air receiver may not be bolted to the floor.
2 Position of the compressed air outlet valve.
Instruction book
2920 7002 03 19
