5. Reassemble the fan duct:
• Put the fan duct in place.
• Fit the 3 bolts and the clip.
The unit is now again ready for use.
6.9 Replacement of the outlet pipe
(only applicable to SF 1, SF 2 and SF 4)
Description

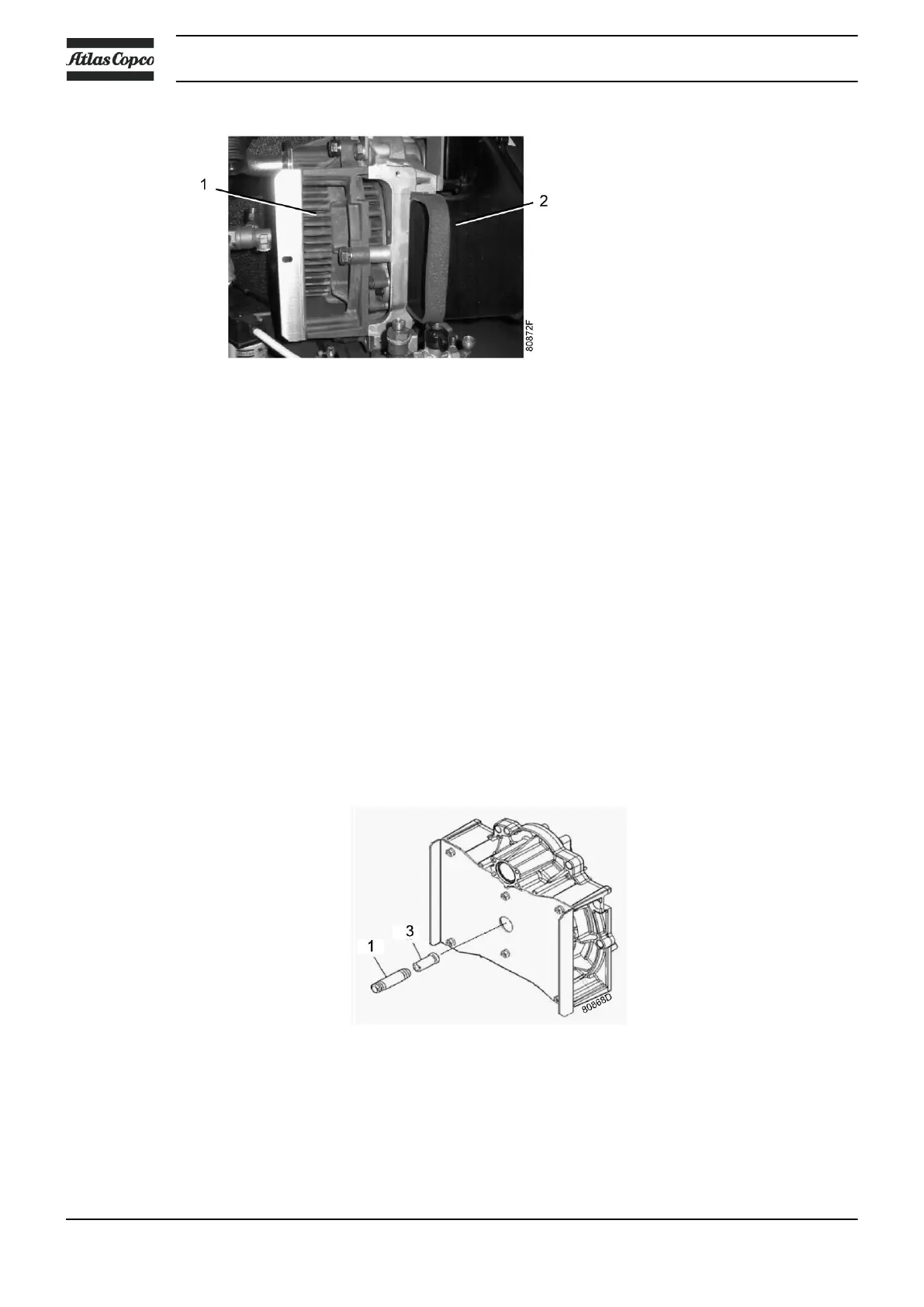

The element outlet pipe (1) of the 2.2 kW and the 3.7 kW elements contains a plastic insert (3). Due to the
heat of the compressed air, the plastic insert can become brittle after time. It is recommended to replace the
outlet pipe together with the insert when that is the case. Both parts are available as a kit (outlet pipe set).
Consult the Spare Parts List for part number.
The outlet pipe set contains two parts:
• The plastic insert (3)
• The metal outlet pipe (1)
Replacement procedure
1. Stop the compressor, depressurize and switch off the voltage.
2. Loosen coupling (3) while immobilizing nipple (2) with a wrench.
Instruction book
36 2920 7110 11
