GENERATOR FUNCTION (XAS 137 DDG - XA(S) 300 DD7G)

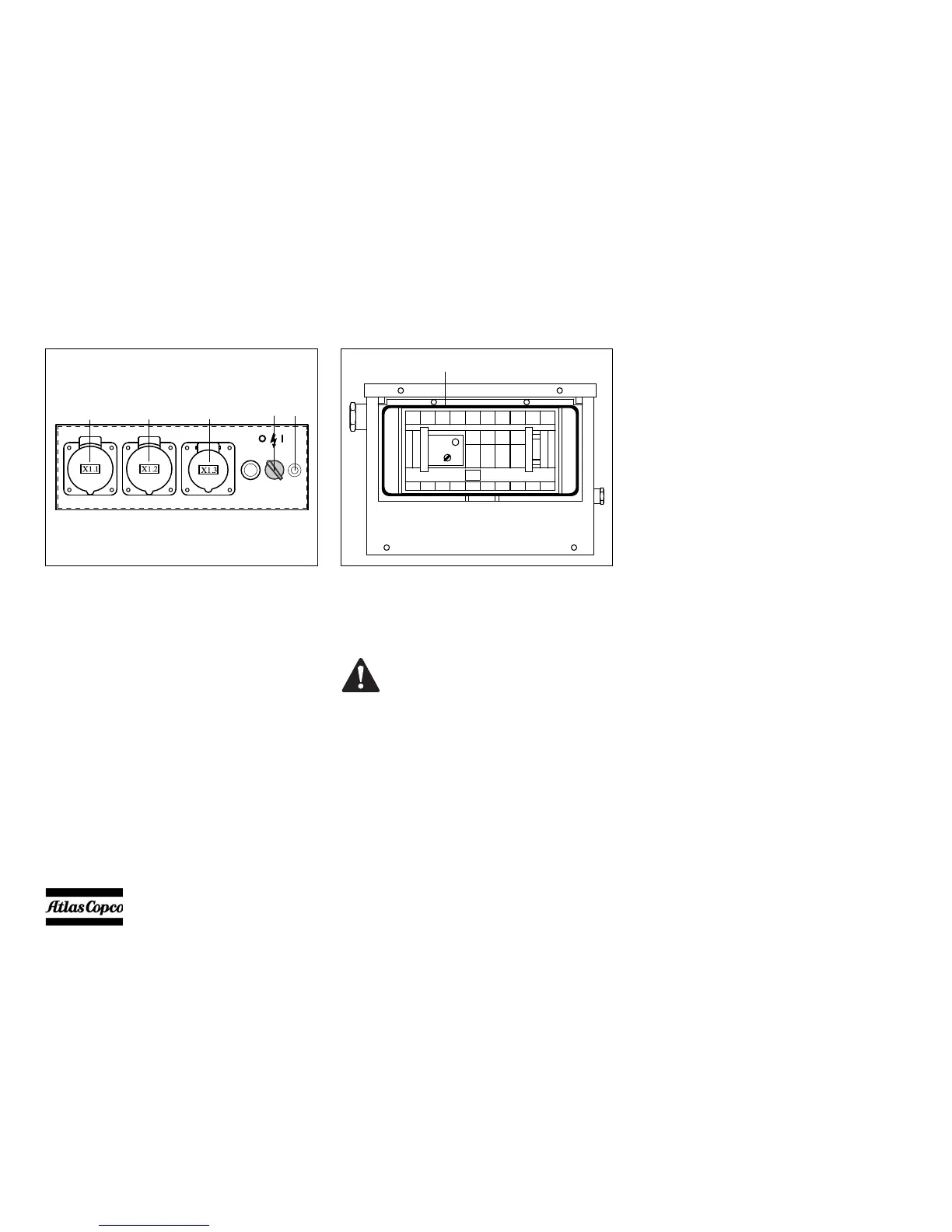

Control panel (generator)
Start the unit in accordance with the normal
procedure. Let the motor warm up until it reaches
operational temperature.
Generator control box
Fault situations and protective devices:
• Open the left machine door and check that the
circuit breakers are up. If the circuit breakers are
down, put them up (switch them on). Circuit
breakers in the up position can be indicative of a
serious electrical fault.
• When the red lamp H9 is activated, it means that a
serious insulation fault has occurred. Reset by first
switching off the motor, then restart it.
• The insulation monitoring relay K8 must be
adjusted to 10 kΩ. This adjustment may not be
changed.
X1.1Socket 400 V/16 A X1.3Socket 230 V/16 A
X1.2Socket 400 V/16 A S1 ON/OFF switch
K1 Earthing clamp
(X1.3)
(S1)
(X1.2)(X1.1)
(K1)
Q1 Main circuit breaker 4-pole
K8 Insulation monitoring relay
Before connecting an electrical device,
always check the data listed on the rating
plate.
(K8)
12345678910
10
20
30
40
50
60
70
80
(Q1)
