Instruction book
2920 1472 03 49

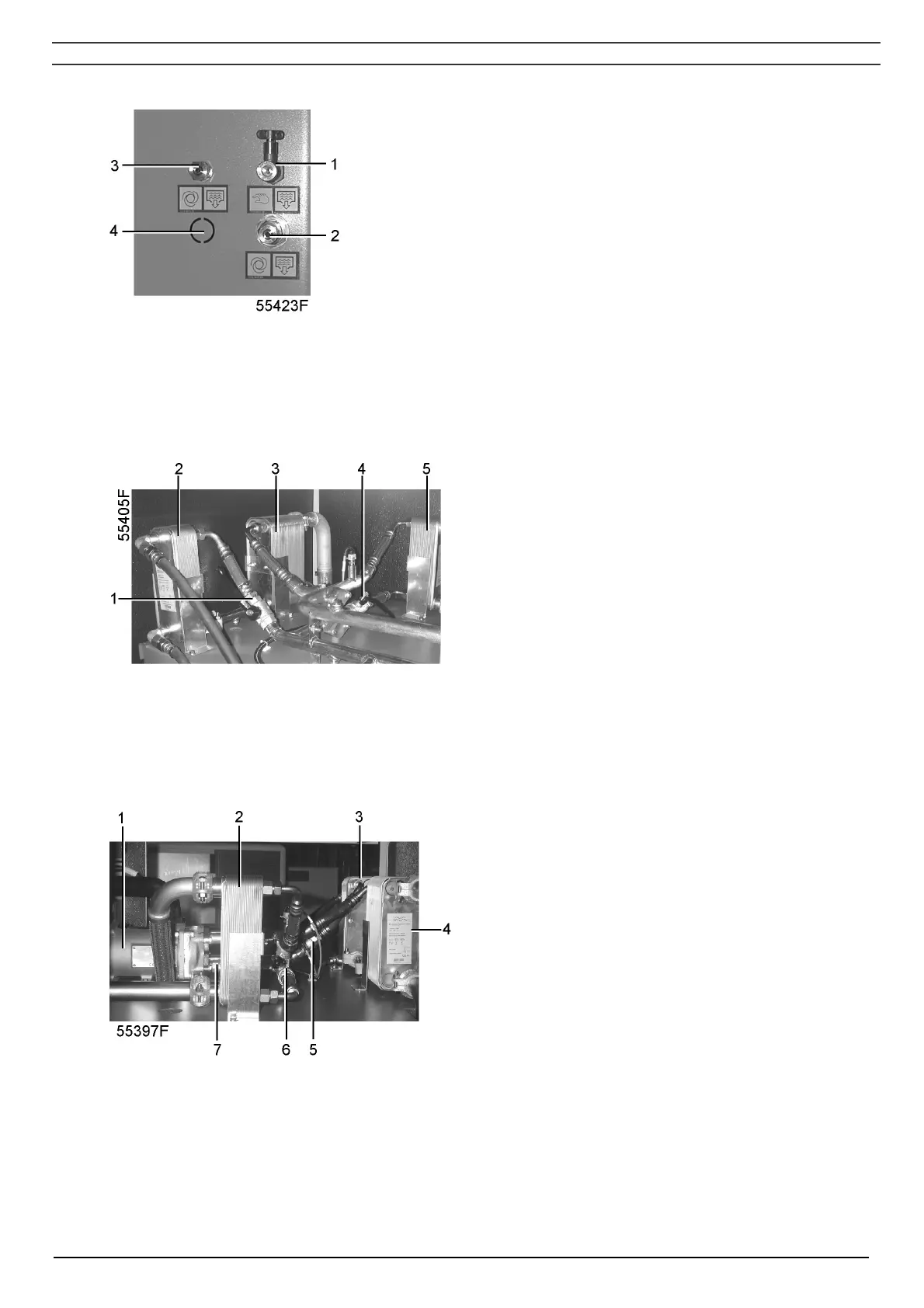

1 Manual condensate drain, aftercooler
2 Electronic condensate drain, intercooler
3 Automatic condensate drain, aftercooler
4 Prepared for electronic drain (only for
IMD)
Fig. 3.5 Condensate drains
1 Water flow regulating valve, oil cooler
and intercooler
2 Oil cooler
3 Intercooler
4 Water flow regulating valve, aftercooler
5 Aftercooler
Fig. 3.6 Water system on ZR compressors
1 Regeneration cooler
2 Aftercooler
3 Oil cooler
4 Intercooler
5 Regulating valve for the oil cooler and
the intercooler
6 Regulating valve for the aftercooler
7 Regulating valve for the regeneration
cooler
Fig. 3.7 Water system on ZR with IMD
