AA60 MIXER AMPLIFIER

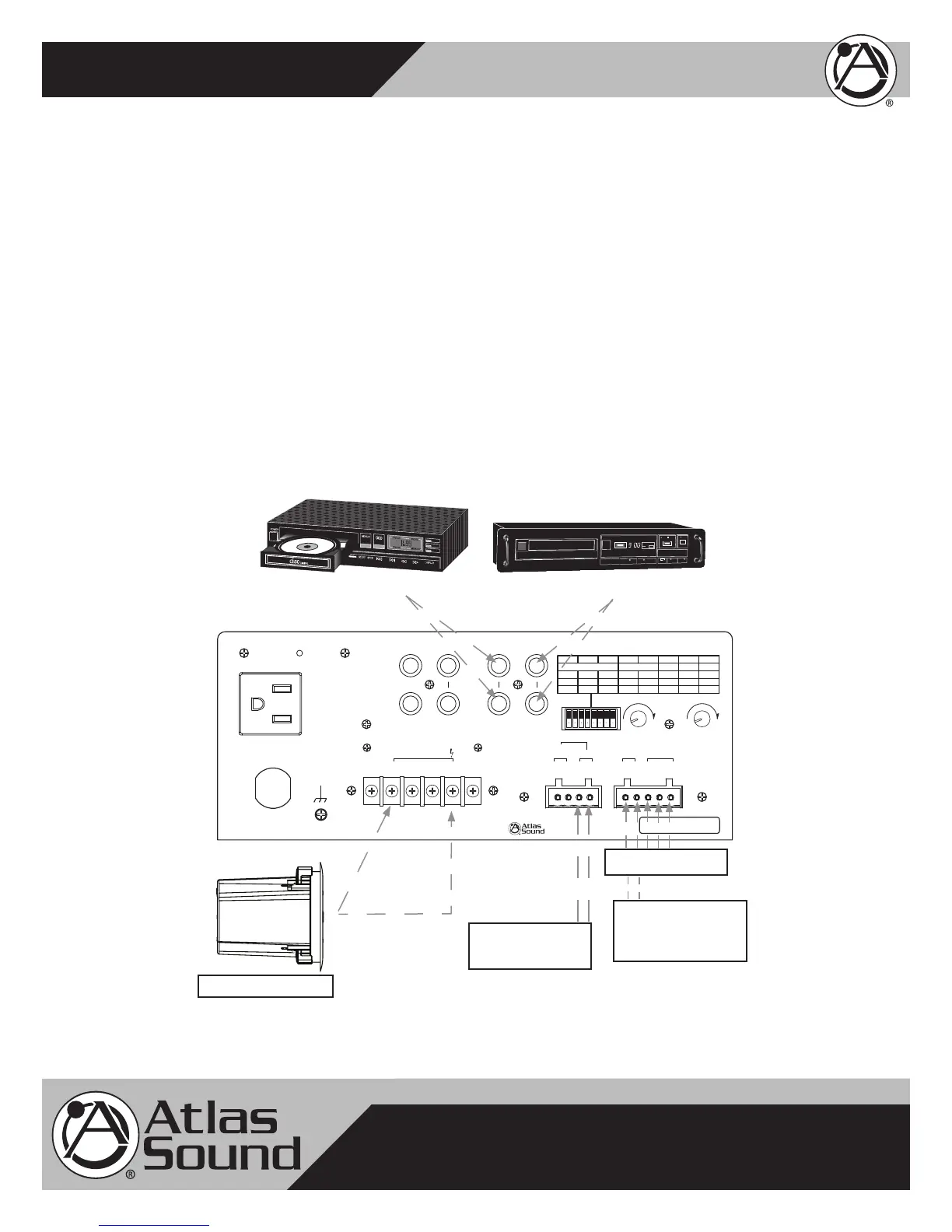

Setup – Example 4: MOH with System BGM and Remote Paging
This example has a separate message repeater routed only to the MOH feature of the customer's phone sys-
tem. While callers are on hold, they hear only custom promotional messages. When a page is present, the
BGM will be muted via remote switch on the mic.
• Connect a digital message repeater to INPUT 2.
• Set Dipswitch 2 to "
ON", allowing the message repeater to be routed to the ZONE 2 output. INPUT 2
volume control must be turned all the way down, so the audio only goes out the ZONE 2 output and
not to the main system.
• Connect a BGM player to INPUT 3 for system background music.
• Connect a paging mic with a switch to INPUT 1.
• Connect the switch wires from the mic to the "RMT MUTE" terminals. Note: The polarity on the
switch to the terminals does not matter.
• Set Dipswitch 7 to the "
MIC" position.
• Set Dipswitch 4 to the "
ON" position. When a page is received via INPUT 1 and the "RMT MUTE"
terminals are shorted, the background music (BGM) will mute, allowing the page to be clearly heard.
Note: The music on hold (MOH) will not be muted.
• The Mute Sensitivity control must be set fully counter-clockwise to prevent false muting action.
Example 4
Power
On
Off
Signal Power Peak
Treble
+
–
Bass
Input 3 Input 2 Input 1
+
–
10
0
AA60 Mixer Amplifier
10
0
10
0
On
Off
Low cut
8
On
Off
4 3
2 1
Phantom
Mute Rcv
Off
On
Off
On
Off
On
Off
On
5
Zone 2 Assign
6
Input 3 Input 2 Input 1
Input1
7
Input 2
Input 3
Line/Tel
Mic
Off
On
Unswitched Outlet
120V AC 60Hz
Max 500W
Outlet Breaker
125V AC 4A
Push Reset
120V AC 60Hz 200W
Amp In
Line Out A
Line Out B
Pre Out
Input 3 Input 2
L
R
Zone2
10 0
Level
Mute
Sens
10 0
Remote
Mute
G - +
Input 1
Ω
8
1W
Ω
600
Zone 2 Out
- + - +
Speaker Output 60W
COM
25V
Ω
4
70V
L
R
1601 Jack McKay Blvd., Ennis, TX 75119
(800) 876-3333 AtlasSound.com
AA60
Atlas Sound AA Series Mixer Amplifier
CLASS 2 WIRING
To 70 V Speakers
To MOH port
on PBX
To Paging Mic
Message Repeater MOH
To "NO" Contacts
on Paging Mic
"Push to talk"
0/7%20/7%2
CD Player - BGM Only
