Atlona AT-HDRP User Manual

5

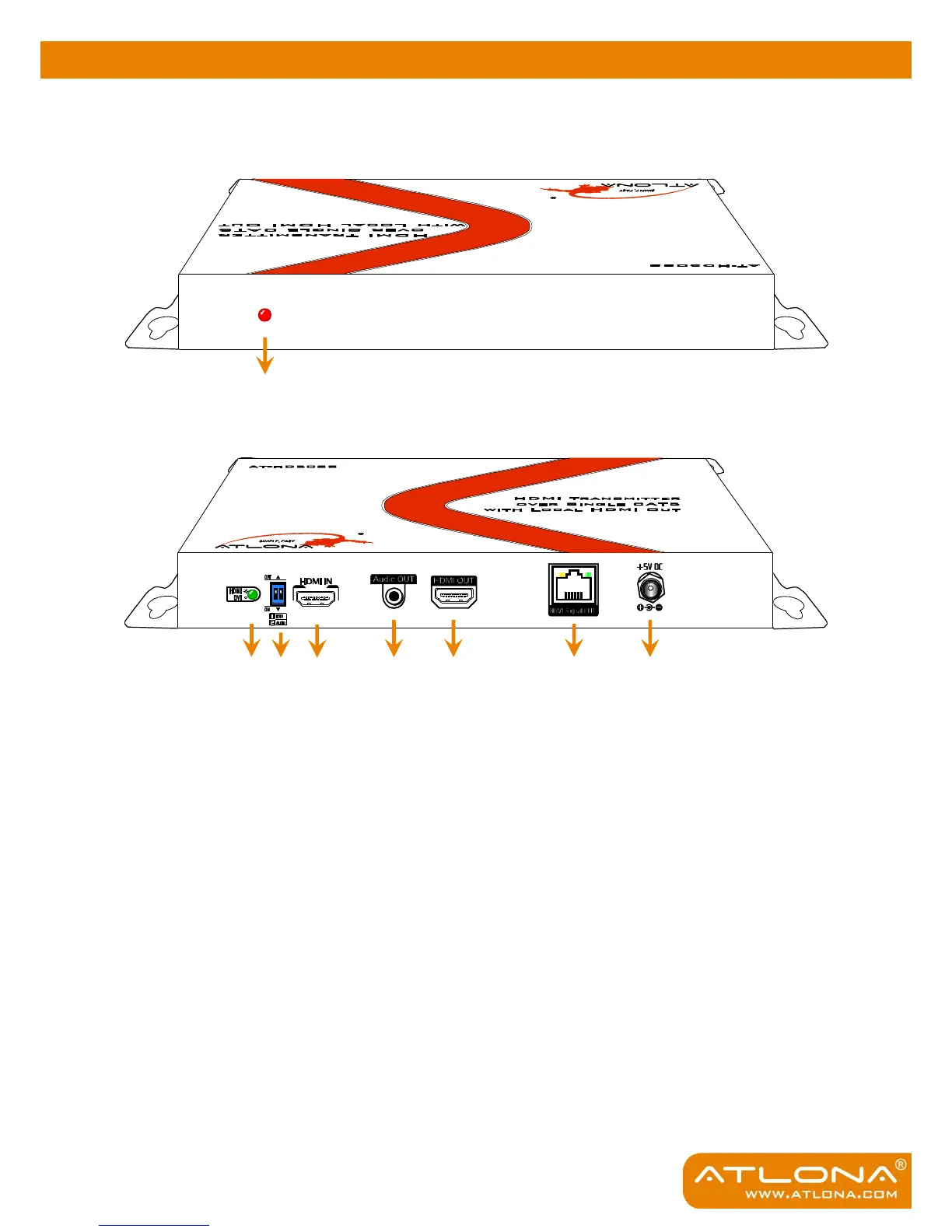

PANEL DESCRIPTIONS
1
2
3
4
5
6
7
8
Sender Unit  AT-HD50SS
Front Panel
Rear Panel
1. Power on/off indicator
2. Input video format indicator (ON: HDMI signal / OFF: DVI signal)
3. DIP switch (see the table in the next page)
4. HDMI IN: Connect to a HDMI source with a HDMI male-male cable
5. Audio OUT: Plug in a local speaker
6. HDMI OUT: Local HDMI for connecting to a HDMI display with a HDMI male-male cable, or
cascade to the HDMI IN of another AT-HD50SS, AT-HD14SS, or AT-HD19SS, or link to a
remote display with AT-HDRS or AT-HD15SRS via a Cat.5e/6 cable
7. HDMI Signal OUT: Link to AT-HD50RSL for cascading; or link to AT-HDRS or AT-HD15SRS
to another HDMI display via a Cat.5e/6 cable
8. +5V DC: Connect to a 5V 4A DC power supply unit
