Page 13 of 19
AudioCodes™ MP-104 Gateway Quick Start Installation Guide
August 2004
6. Advanced Configuration: This page has the Network Settings, Channel Settings, Con-
figuration File, Regional Settings, and Change Password fields.

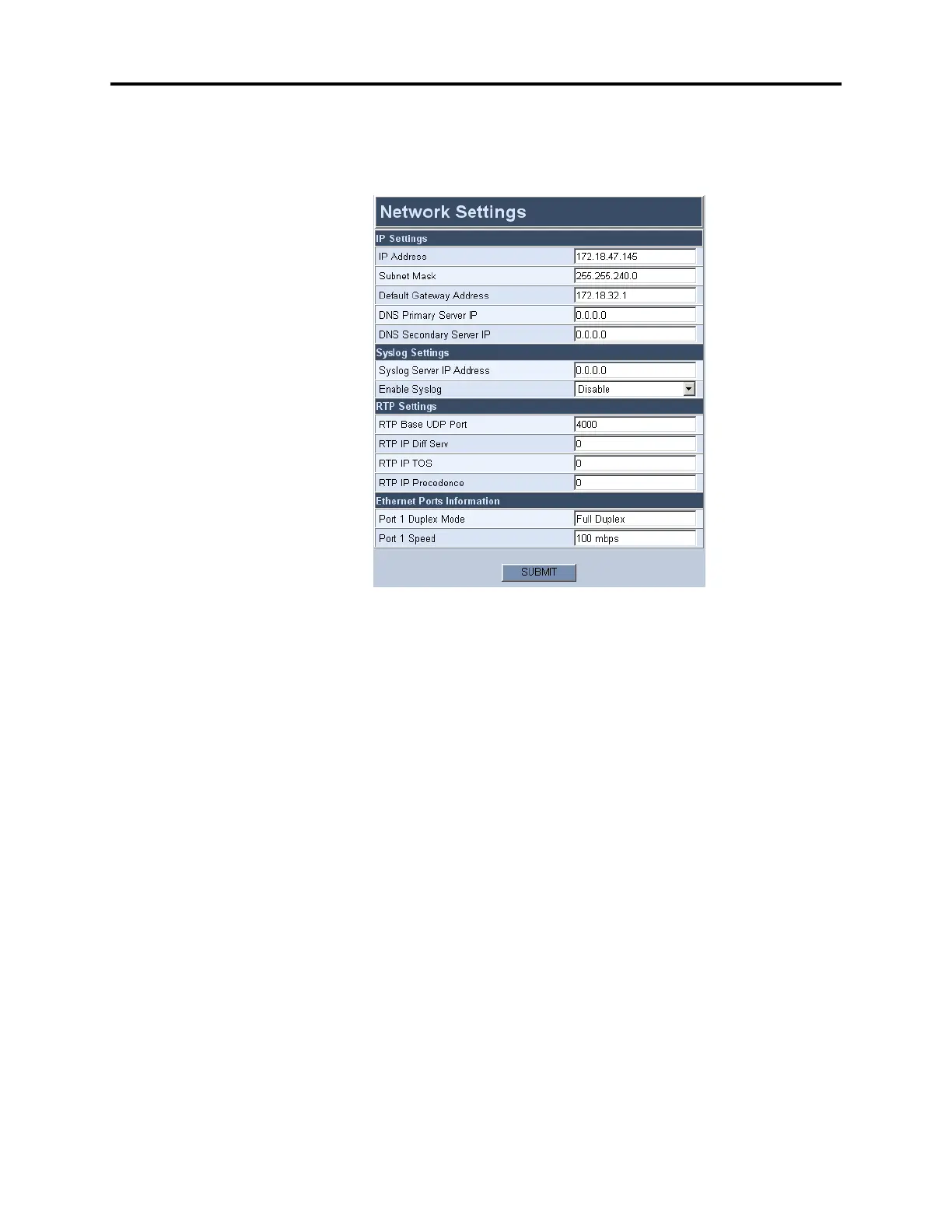

• Network Settings: Configure the Network Settings as described below.
— IP Address: Enter the IP address of the MP-104.
— Subnet Mask: Enter the subnet mask of the MP-104.
— Default Gateway Address: Enter the default gateway address if you are using
a static IP address or need to change the subnet mask or gateway address.
Ensure these values match those on the IPRC Device Configuration page if
using static IP addressing.
— DNS Primary Server IP: Should be set to 255.255.255.255.
— DNS Secondary Server IP: Should be set to 255.255.255.255.
— Syslog Server IP Address: Leave this field at default or enter any IP address
of a system that is equipped with a system logging application.
— Enable Syslog: Should be set to Disable.
— RTP Base UDP Port: Should be set to 4000.
— RTP IP Diff Serv: Should be set to 0.
—RTP IP TOS: Should be set to 0.
— RTP IP Precedence: Should be set to 0.
— Port 1 Duplex Mode: Shows the mode that your system is using.
— Port 1 Speed: Shows the speed that your system is using.
To apply the changes, click SUBMIT.
