Audiofront eDrumin Series User Manual

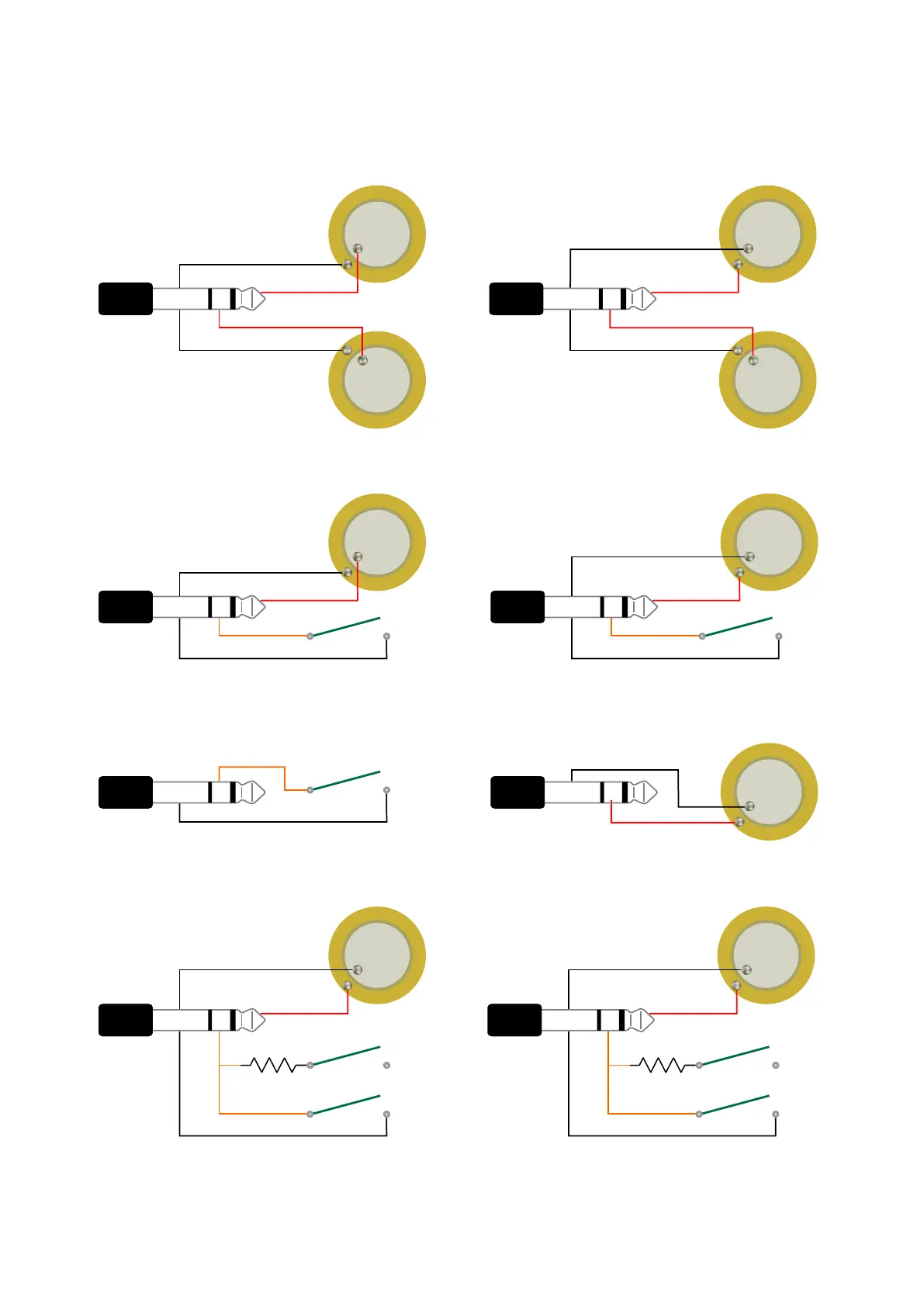

Drum Pad Wiring Diagrams
eDRUMin Manual Page 43 of 45
Drum Head
Drum Rim
Dual Piezo Pad
(Roland Style)
Polarity of rim piezo
doesn't matter
Drum Head
Drum Rim
Dual Piezo Pad
(Yamaha Style)
Polarity of rim piezo
doesn't matter
Drum Head
Piezo / Switch Pad
(Roland Style)
Drum Head
Piezo / Switch Pad
(Yamaha Style)
Edge Switch
Yamaha 3-Zone Cymbal
10k
Bell Switch
Rim Right
Yamaha 3-Zone Pad
10k
Rim Left
Roland 3-Zone Ride Bell Input Metal 3-Zone Ride Bell Input
