AUX ALCA-H**R1AA User Manual

AUX Light Commercial Air Conditioners T1,50Hz, R410a,ON/OFF
53

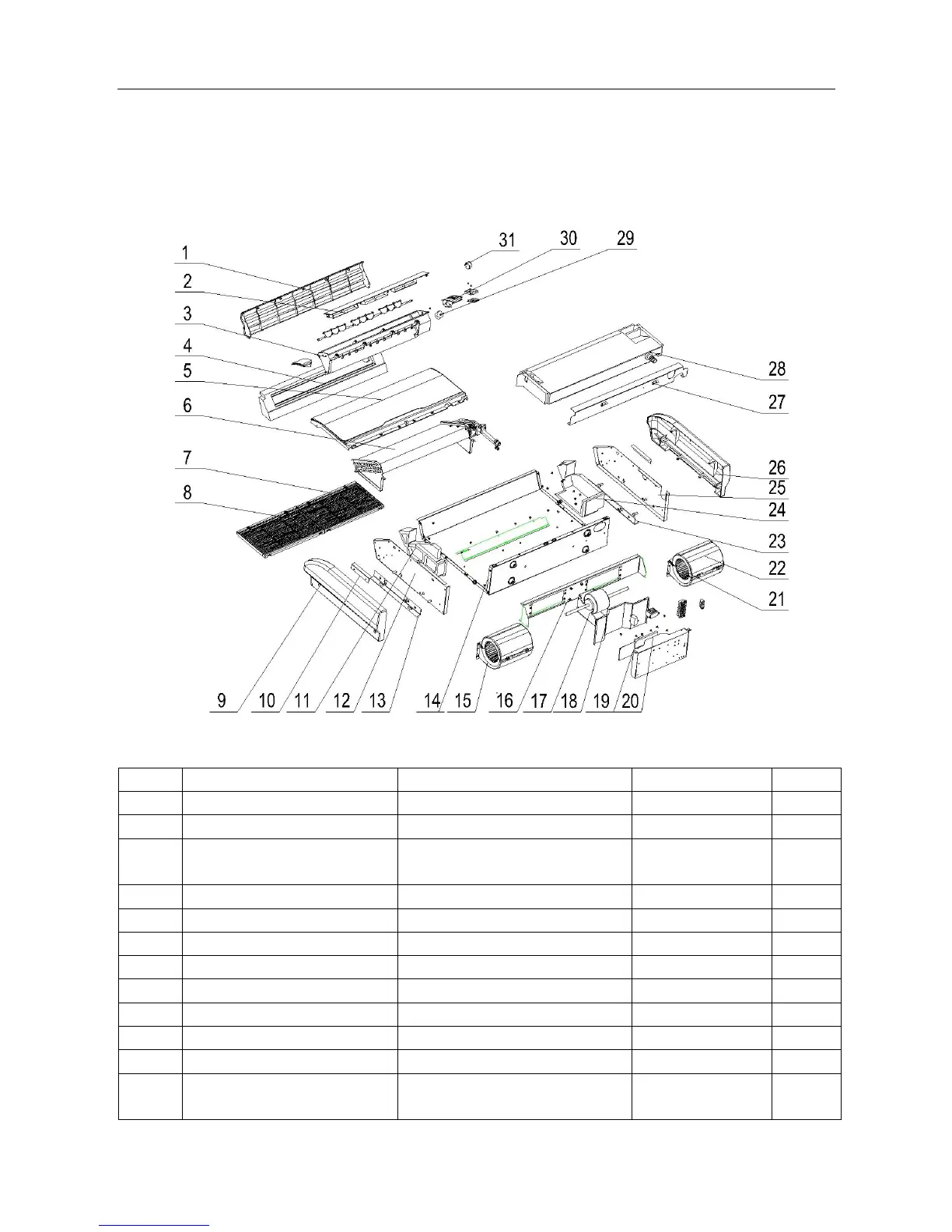

7.Explode view
ALCF-H18/4R1C
N0.
Parts No.
Chinese name
Part Name
Quantity
1
ALCe-H18A4/C5 顶盖板
The top covers
1
2
导风门 ALCe-H18A4/C5
Sway a breeze leaf
1
3
ALCe-H18A4/C5 导风架组件
Air guide louver
assembly
1
4
ALCe-H18A4/C5 顶泡沫
The top foam
1
5
ALCe-H18A4/C5 面板
Panel
1
6
ALCe-H18A4/R1DCC5 蒸发器总成
Evaporator assembly
1
7
ALCe-H24B4/C5 格栅
Air-inlet grill
2
8
ALCe-H24B4/C5 滤网
Air-inlet filter
2
9
ALCe-H24B4/C5 左盖板
The left side covers
1
10
ALCe-H24B4/C5 集水盘压板
Draining tray plate
2
11
ALCe-H24B4/C5 左泡沫(开模)
Left foam
1
12
ALCe-H24B4/C5 左侧板组件
Left side panel
assembly
1
