8.Function Exposition
8-15 Fan speed option
High
Midium Low

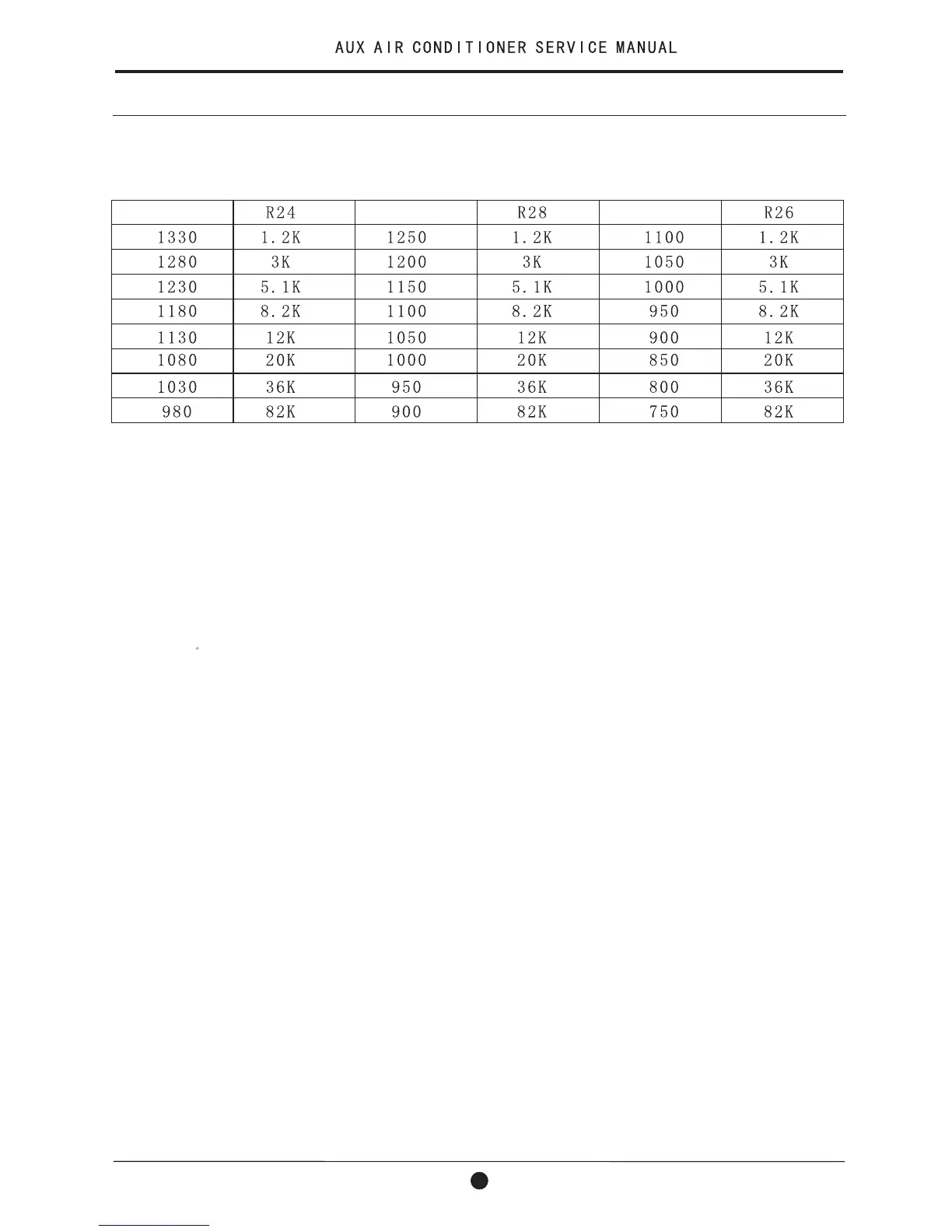

The resistance of blowing option as below
The instruction of contr ller of E series wall mounted type
Remark: Quiet blowing speed, heating mode is 850r/min, while non heating mode is 800r/min;
low speed is 650r/min.
According to different remote control, the cont oller add up some high efficiency blowing,
which will add 100r/min on the basis of high speed blowing.
o
r
8-16. Pre-leave function
The functions hereunder existing in the chip, if there is correspond hardware the function will
be available, e.g.: The power break off memory function need the E2 chip, I feel function
need corresponding remote control, negative ion need corresponding relay.
1). Setting: press the conresponding button on the , the controller will
receive the temperature from the sensor in the remote control??????????????????
remote control
???
,
1) setting: After the controller was filled with power, please press the sleeping button 10
consecutive times in 5s, if it s successfully setting, the buzzer will ring 4 consecutive times,
if you want to quit such function doing the same thing. The buzzer will ring 2 consecutive
times to show it s cancel;
2) The power break off memory can remember: running mode, blowing speed setting, TS,
negative ion, waving state and turn on/off situation.
3) Once the power break off memory function was setting, if the units was turn off naturally,
there will no time-elapse protection, while it was turned off abnormally the compressor
will have 3min time-elapse protection when restart.
1. The power break off memory function
2. The I feel function
