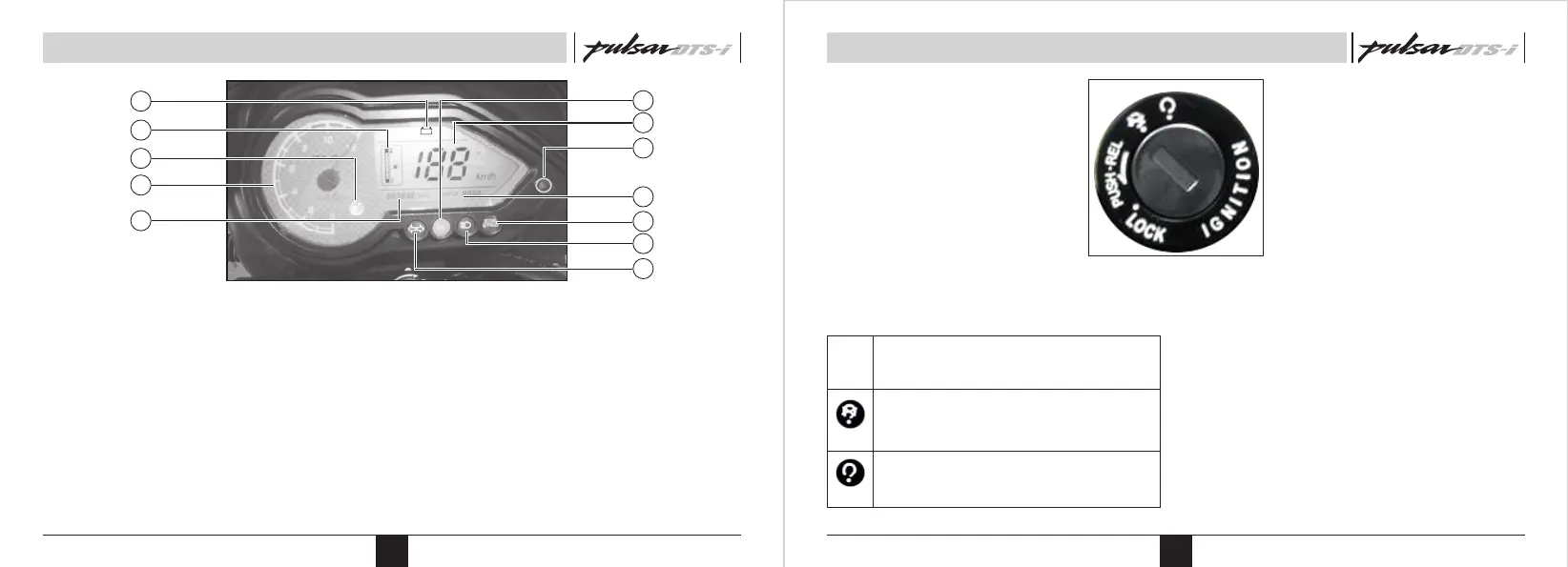

Location of Parts
Steering cum Ignition Lock :
It has three positions.
To Lock the Steering : To lock the steering,
turn the handle bar to the left or right. Push
& release the key. Turn the key to “LOCK”
position and remove the key.
To Unlock the Steering : To unlock the
steering, insert the key in steering cum
ignition lock & turn it clockwise to “OFF” or
“ON” position.
Key : A common key is used for ‘Steering
cum Ignition lock’, ‘Fuel tank cap’ and ‘Side
cover lock’.
LOCK : Steering locked. Ignition
OFF.
OFF : Steering unlock. Ignition
OFF.
ON : Steering unlock. Ignition
ON.
4
1. Battery Indicator : It indicates battery needs charging
2. Fuel Level Indicator : Fuel level indicator shows
available fuel in fuel tank.
3. Reserve/ Engine Rev Indicator : It glows when fuel
level in tank reaches reserve level. It also blinks when
engine RPM cross 9000 RPM mark.
4. Tachometer Dial : It shows engine speed in RPM.
5. Odometer : The Odometer shows the total distance
that the vehicle has accumulated.
6. Neutral Indicator : When transmission is in Neutral &
Ignition switch ‘ON’, Neutral indicator will glow.
7. Speedometer: Vehicle speed will be displayed digitally.
8. Trip Meter Reset Button : Both trip meters can be
reset to zero by pressing the button.
9. Trip Meter : The Trip meter shows the distance
traveled since it was last reset to zero.
10. Side Stand Indicator : When Side stand is ‘ON’,
the Side stand indicator will glow.
11. Hi Beam Indicator : When Headlight is ‘ON’ & Hi
beam is selected with engine running, Hi beam
indicator will glow.
12. Turn Signal Indicator (LH & RH) : When Turn
signal switch is turned to Left or Right, Turn pilot
indicator - LH or RH will flash.
+
-
2
5
4
3
1
7
10
11
8
9
12
6
