BATEC MINI User Manual
4
of 1
of 1 rating
119 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
PAGE
42
/ 119
USER MANUAL
NUMBER/VERSI
ON: MU-001
/12.0
APPLICATIO
N DATE: 10
/1
0
/1
9
C/ Illa de Buda,
2 (P.I. Sud-Oest)
08192 Sant Quirze del
Vallès [Bar
celona - Spain
]
T +34 935442003
www.batec-m
obility.com info@b
atec-mobility.c
om
•

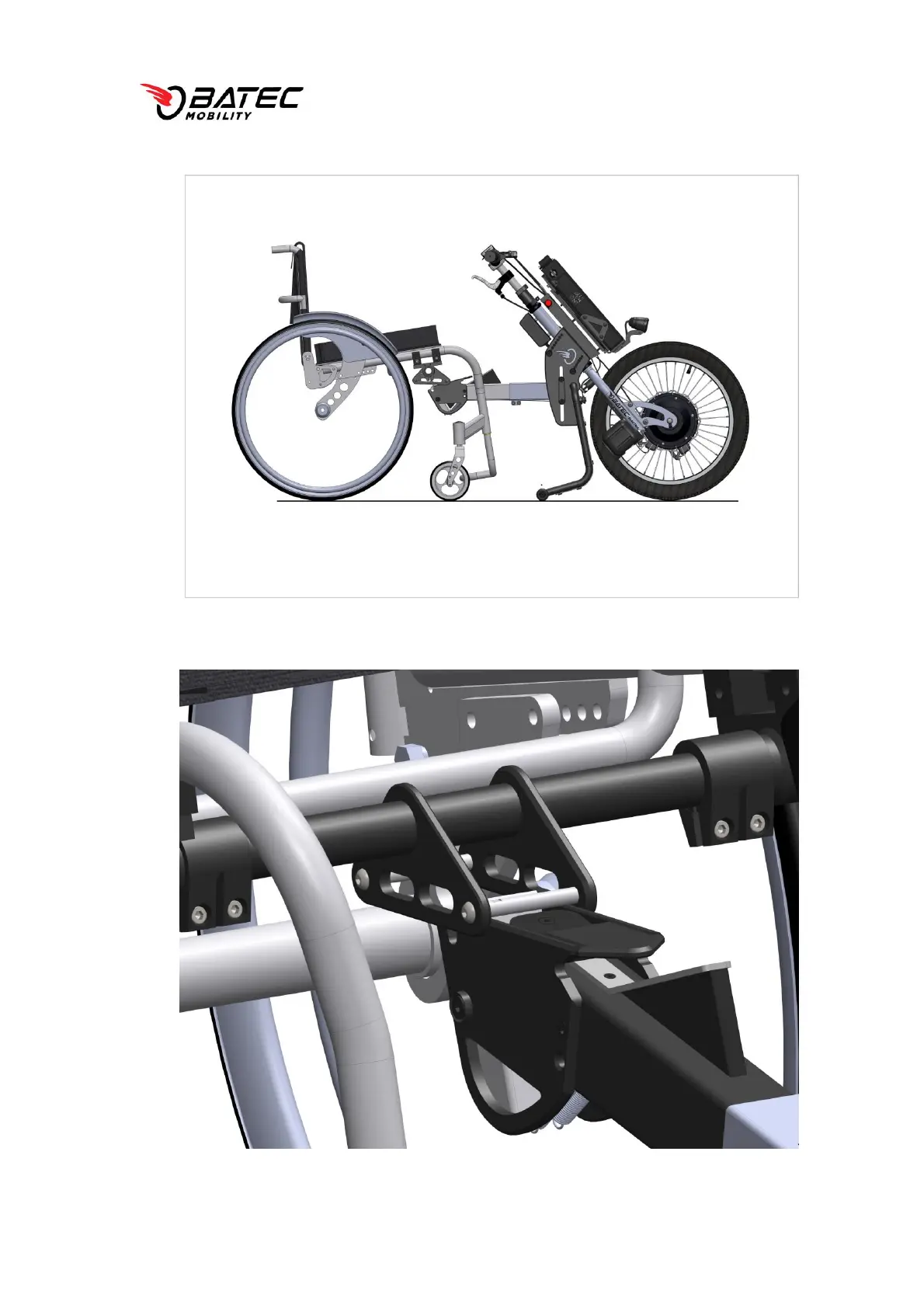

Step 2:
Grab
the Batec by
the handle
bar and pull
it towards you, rolling the
frame
stand
until
the
detaching
r
amp
on
the
anchoring
bar
touc
hes
the
front axle
of the bar
on the
wheelchair.
41
43
Table of Contents
Default Chapter
2
Table of Contents
2
Welcome
4
1 Product Description
5
2 Safety Measures and General Precautions
6
Before Using Your Batec for the First Time
6
During Use
7
General Precautions
9
3 Models: Characteristics and Parts
10
Batec Mini / Electric 2 / Scrambler
13
Characteristics
13
Batec Mini
13
Batec Electric 2
15
Batec Scrambler
17
Partes del BATEC MINI / ELECTRIC 2 / SCRAMBLER
19
Parts of the BATEC QUAD MINI / ELECTRIC 2 / SCRAMBLER
22
Parts of the HEMI Control for the BATEC MINI / ELECTRIC 2 / SCRAMBLER
23
Batec Electric
24
BATEC ELECTRIC Specifications
24
BATEC URBAN Specifications
25
BATEC RAPID Specifications
26
Parts of the BATEC ELECTRIC
27
Parts of the Controls for BATEC QUAD ELECTRIC
30
Batec Manual
31
BATEC MANUAL Specifications
31
Parts of the BATEC MANUAL
32
Parts of the Controls for BATEC QUAD MANUAL
34
Batec Hybrid
35
BATEC HYBRID Specifications
35
Parts of the BATEC HYBRID
36
Parts of the Controls for BATEC QUAD HYBRID
39
4 Operating the Batec / User Guide
40
Delivery
40
Unpacking
40
Lifting and Transport
40
Attaching the Batec
41
Detaching the Batec
46
Using the Batec Mini / Electric 2 / Scrambler Controls
49
Using the Batec Quad Mini / Electric 2 / Scrambler Controls
54
Operating the Batec Mini / Electric 2 / Scrambler Hemi Controls
58
Operating the Batec Electric Controls
63
Operating the Batec Quad Electric Controls
68
Operating the Batec Manual Controls
72
Using the Batec Quad Manual Controls
74
BATEC QUAD GRIPS of BATEC QUAD MANUAL
74
BATEC SHIFT LEVER of BATEC QUAD MANUAL
75
BATEC QUAD MANUAL Back Pedal Brake
78
Batec Quad Manual Magic Lever
78
Operating Batec Hybrid Controls
80
Using Batec Quad Hybrid Controls
85
BATEC QUAD GRIPS of BATEC QUAD HYBRID
85
BATEC SHIFT LEVER of BATEC QUAD HYBRID
86
BATEC QUAD HYBRID Back Pedal Brake
89
Batec Quad Hybrid Magic Lever
89
Battery
94
Basic Battery Use
95
Battery Safety Information
100
Additional Information on the Battery
101
Technical Specifications of the 280 Wh Battery
102
Technical Specifications of the 522 Wh Battery
102
Specifications of the 696-Wh Battery
103
Weights
104
5 Installation and Adjustments
106
Installation of the Batec on a Wheelchair
106
User Adjustments
106
Adjust the Distance between the Batec and the Chair
107
Adjust Stem Angle
108
Adjust Stem Height
109
6 Maintenance and Repairs
110
7 Label
115
8 Warranty
116
Warranty Period
116
Warranty Conditions
116
Warranty Card
119
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the BATEC MINI and is the answer not in the manual?
Ask a question
