8.0 Flue Options
20
© Baxi Heating UK Ltd 2006
8.1 Horizontal Flue Systems
Concentric
The maximum equivalent lengths are 4m (horizontal) or
(vertical). Their lengths exclude the standard elbow and
flue/terminal assembly (horizontal) and terminal assembly
(vertical).
Any additional “in line” bends in the flue system must be
taken into consideration. Their equivalent lengths are:
Concentric Pipes: 45° bend 0.5 m
93° bend 1.0 m
NOTE: Flue length is measured from point X to Y as
shown.
X
Y
X
Y
Plume Displacement 70/110 dia Kit
1M Extensions, 45° & 93° bends
are also available - see Section 9.0
NOTE: Horizontal flue pipes should always be installed with a 1.5° fall from the
terminal to allow condensate to run back to the boiler.
Y
X
This bend is equivalent to
0.5 metre
Total equivalent length (upto 4m) =
A+B+2x45°Bends
B
A
This bend is equivalent to
0.5 metre

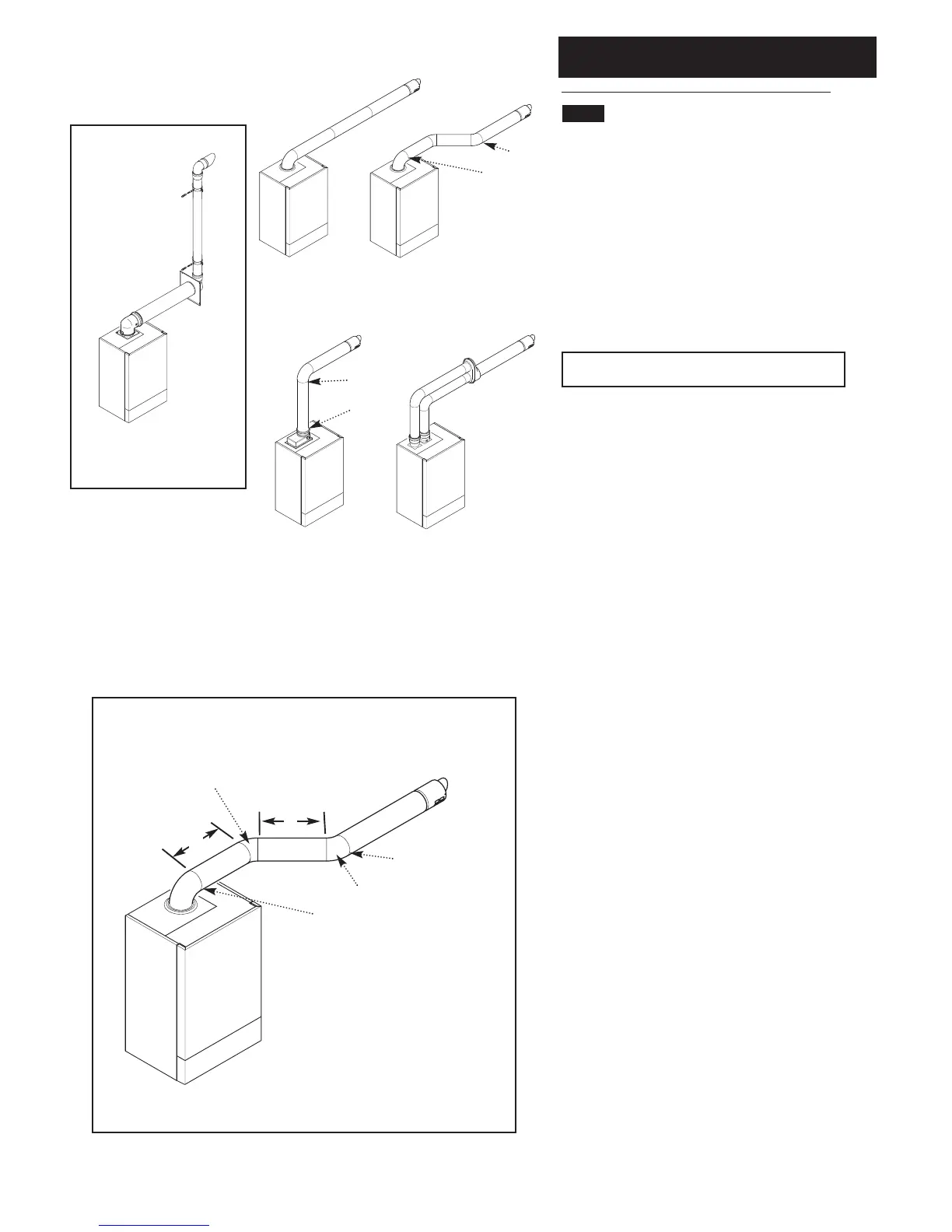

Horizontal
Flue System Examples
To Next Page
