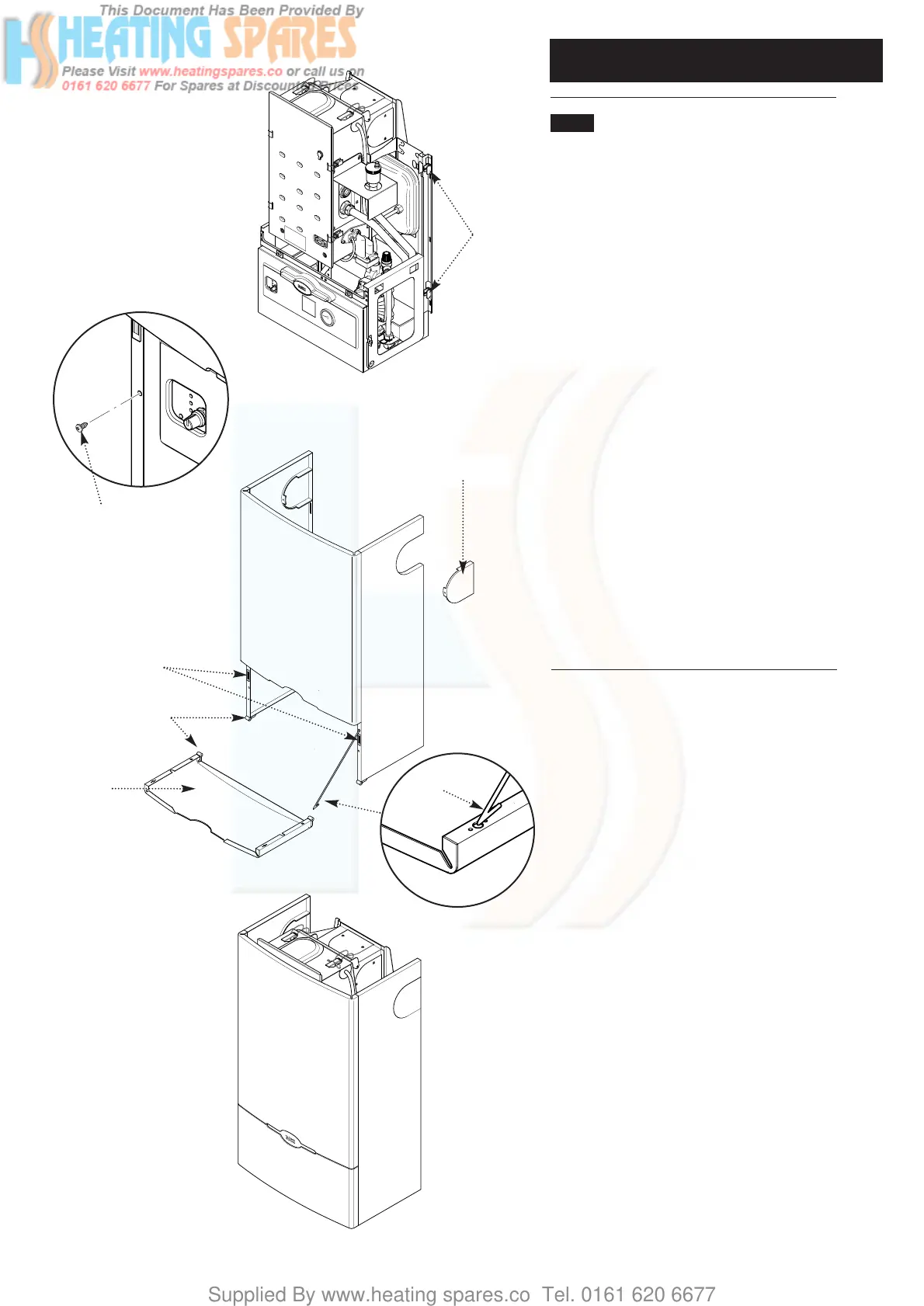

8.0 Fitting the Outercase
34
8.1 Fitting the Outercase
1. The warning label may be removed unless the
boiler is to be fitted within a cupboard or
compartment.
2. If the appliance is flued to the left or to the
right, remove the relevant infill panel from the
case by removing the retaining clips and fixing
screws (Fig. 87).
3. Offer the outer case up to the wall plate.
Engage the slots in the case over the hooks on
the back plate. Ensure that the case is positively
located (Fig. 86).
4. Using the two screws previously removed,
secure the outer case to the combustion box
(Fig. 85).
5. Replace the lower front door panel, relocate
the door stay and hinge upwards, ensuring it is
secured by the two magnets (Fig. 87 & 88).
6. Instruct the user in the operation of the boiler
controls. Hand over the Users Operating,
Installation and Servicing Instructions and the
Log Book giving advice on the necessity of
regular servicing.
Securing Screw
Lower Front
Door Panel
Magnets
Hinge
Infill Panel
Hooks
Fig. 85
Fig. 86
Fig. 87
Fig. 88
Door Stay
