Product Description
2.6 Extension for PCI and PCIe plug-in cards
When ordered with the following options the Control Cabinet Industrial PC C6920-0020 und –0030 can be
extended by two additional plug-in card slots:
Options C6920-0020 and –0030
C9900-B506 2 PCIe plug-in card slots on the passive backplane integrated inside C6920, to plug-in
PCIe x1 cards up to 190 mm (6.3“) length.
C9900-B510 2 PCI plug-in card slots on the passive backplane integrated inside C6920, to plug-in
PCI cards up to 190 mm (6.3“) length.
C9900-B514 1 PCI and 1 PCIe plug-in card slot on a passive backplane integrated inside C6920, to
plug-in one PCI and one PCIe x1 card up to 190 mm (6.3“) length.

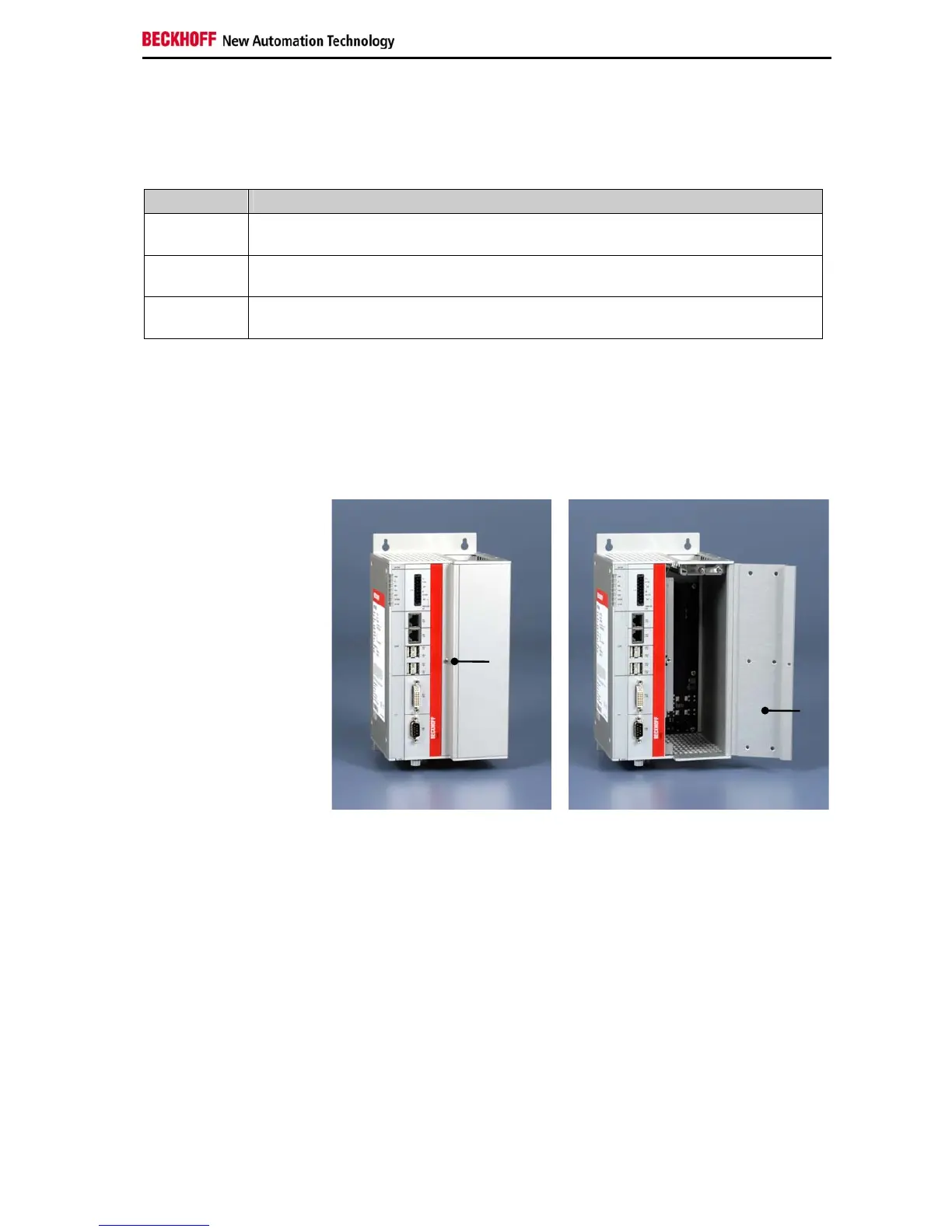

2.6.1 Access to the plug-in card slots
The plug-in card slots are located behind the cover next to the interfaces of the Industrial PC.
For mounting the plug-in cards first solve the cross-head screw (1). The cover (2) can now be opened
and allows to plug in the cards.
Opening the cover
1
2
C6920/ C6925 11
