Commissioning
5 Commissioning
5.1 Configuration of the CX2100-0904 Integrated 24 V UPS
Under Windows Vista or Windows 7 you can reach the UPS configuration dialog via the link in the Start
menu: Start->All Programs->BECKHOFF->UPS Software Components->UPS Configuration
The UPS configuration settings can be made solely by a user with administrator rights. The corresponding
dialogs are disabled for other users.
Language selection: From UPS software version >= 2.0.0.9 the language of the UPS dialogs can be
selected at runtime. The language settings are permanently stored for all users if they have been changed
by a user with administrator rights. All other users can change the language, but the setting is not
permanently saved.
The ‘User Default’ language setting has a special meaning. It is recommended to use this setting on an
operating system with a Multilingual User Interface (MUI). The UPS dialog then appears automatically in the
language that you have set under Control Panel -> Regional Settings for the UI dialogs.
If a language is not supported by the Beckhoff UPS dialog, the dialog appears in US English.

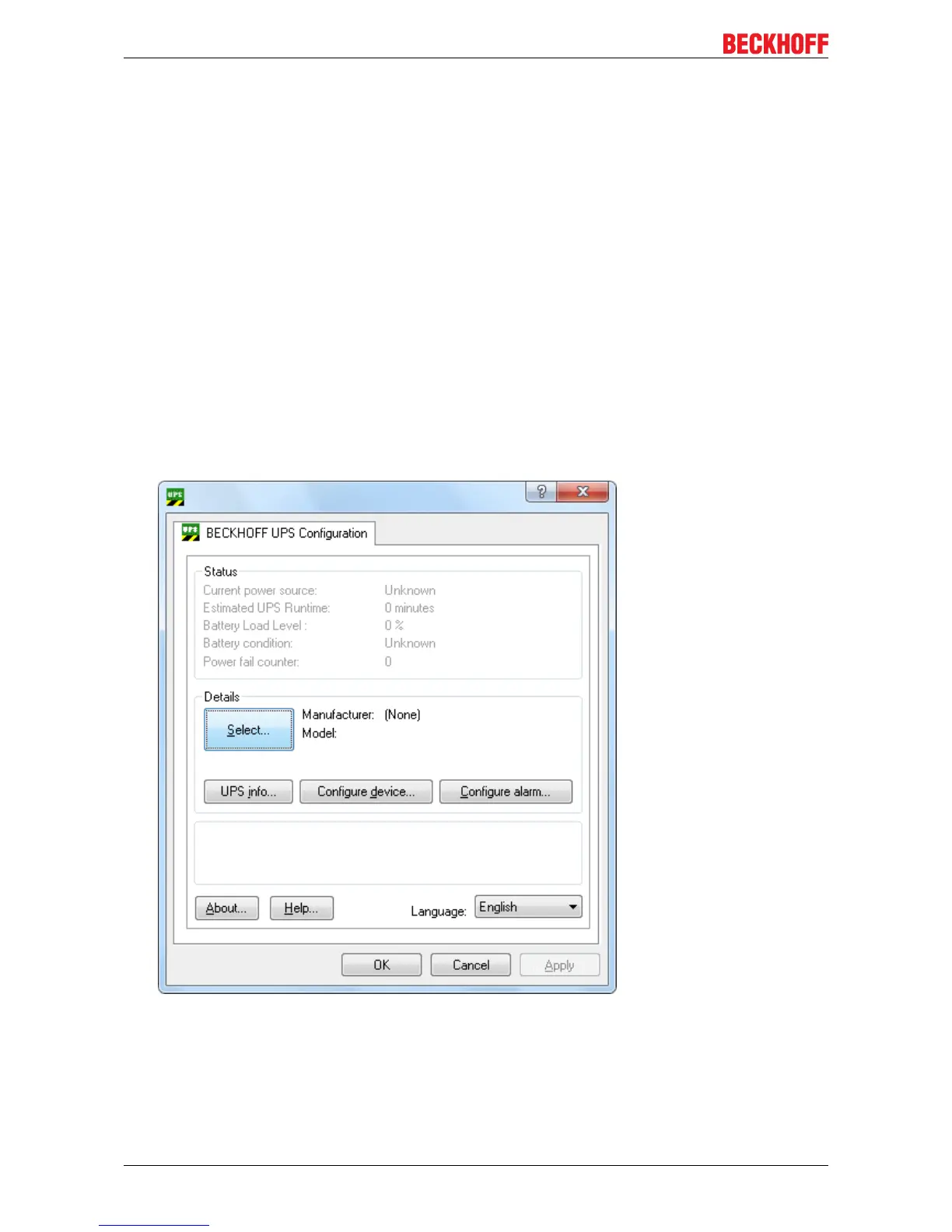

1. Open the BECKHOFF UPS configuration dialog, and then go to Select....
CX2100-09x442 Version: 1.3
