14
4. CONTROL ELEMENTS

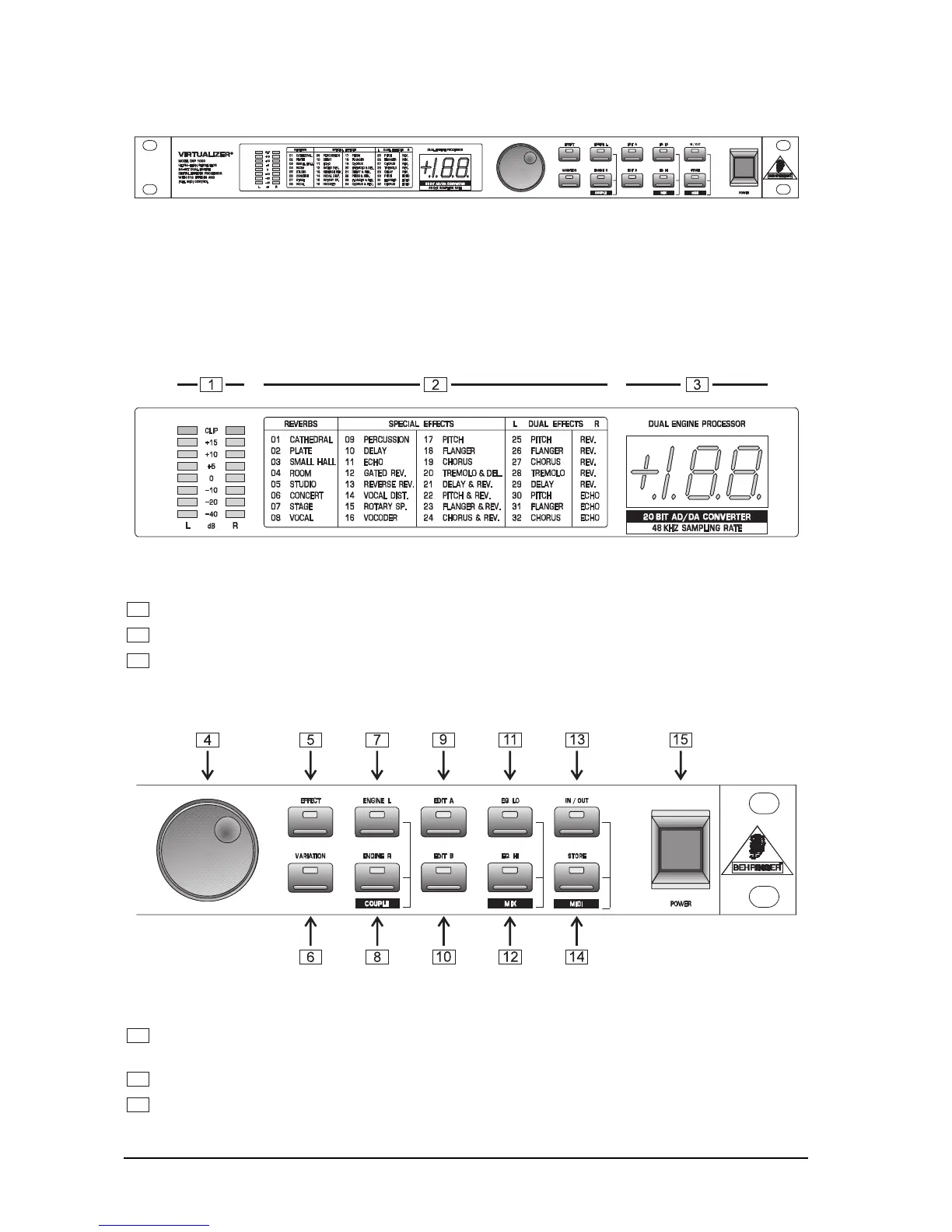

Fig. 4.1: Front panel control elements
The Behringer VIRTUALIZER is equipped with ten parameter keys, one jog wheel (rotary control) and an LED
display. Each of the two fully independent channels can be monitored with an 8-stage LED meter.
4.1 Front panel control elements
Fig. 4.2: Display section of the VIRTUALIZER
1
The two LED chains read the input signal level in dB relative to nominal level.
2
The EFFECT TABLE gives you an overview of the various effect algorithms.
3
After power-up, the LED DISPLAY reads the number of the preset last used. This clearly legible, 2½
digit numeric display has plus/minus indicators to show that parameters are being incremented or
decremented in Edit mode.
Fig. 4.3: Control elements and the jog wheel
4
With the JOG WHEEL, a continuous rotary control, you can freely edit the selected parameters. Turn
the wheel clockwise to increase the values, or counter-clockwise to reduce them.
5
Use the EFFECT key to directly select the 32 main effect algorithms.
6
The VARIATION key allows you to select an alternative variation of each effect algorithm activating a
different setup of the numerous internal effect parameters. With this feature you can extensively manipu-
late the effect sound within a very wide range.
4. CONTROL ELEMENTS
