Instrument and control functions
EN
3
A = 10m
Y = X-10 cm
X
Y

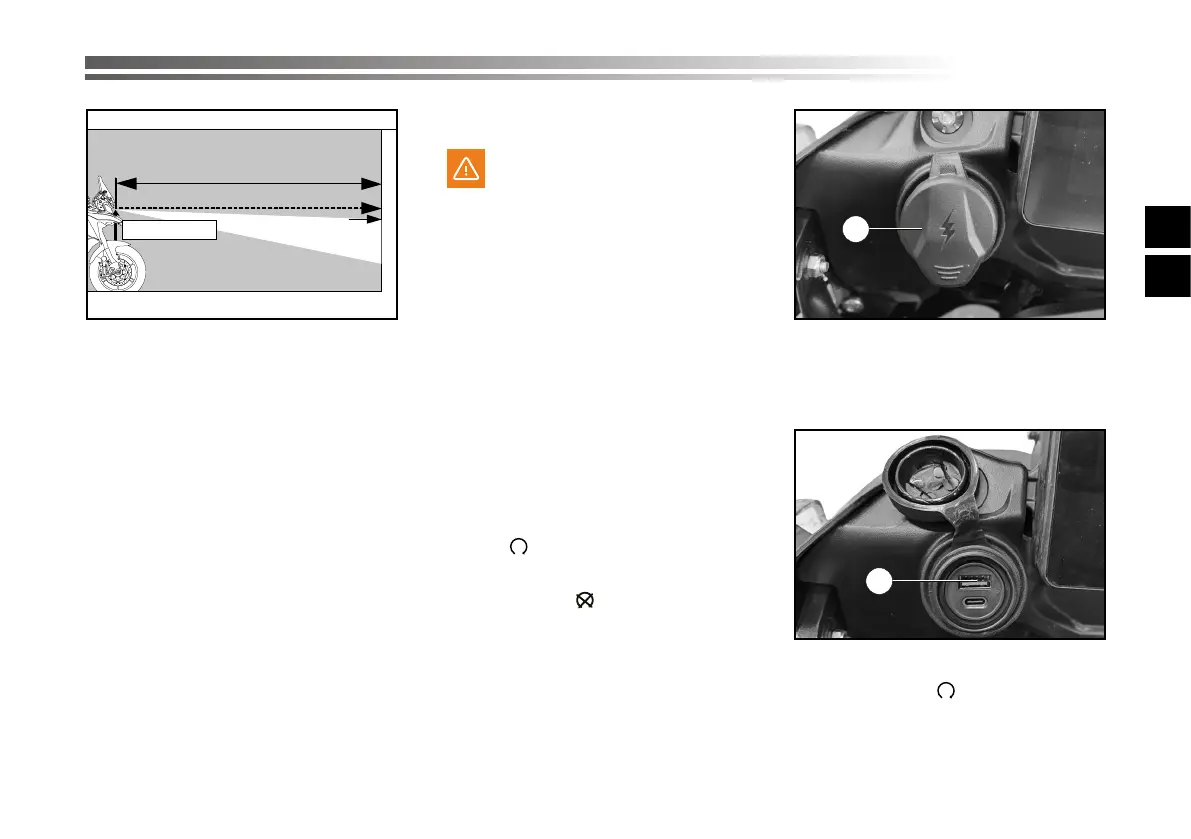

HEADLIGHT HEIGHT
Check if the headlamp is correctly orien-
ted by positioning the vehicle at a distan-
ce (A) 10 m from a vertical wall, on which
you have previously marked the point (X)
corresponding to the height of the center
of the light, and the point (Y) at a height
of 10 cm lower than (X).
The light will be correctly oriented when
the upper limit of the illuminated area
coincides with the reference (Y).
The presence of any passengers or lug-
gage aects the orientation of the light
beam, therefore it is advisable to make the
adjustment in the conguration with whi-
ch you intend to use the vehicle.
Auxiliary USB jack
WARNING
To prevent electrical shock or short-cir-
cuiting, make sure that the cap is instal-
led when the auxiliary (USB) jack is not
being used.
NOTICE
The accessory connected to the auxi-
liary USB jack should not be used with
the engine turned o, and the load
must never exceed 24 W (2A), otherwi-
se the fuse may blow or the battery
may discharge.
This vehicle is equipped with an auxiliary
USB jack.
A 12-V accessory connected to the auxi-
liary USB jack can be used when the key
is in the “ ” position and should only be
used when the engine is running.
To use the auxiliary USB jack
1. Turn the key to “ ”.
2. Remove the auxiliary USB jack cap.
1
1. Auxiliary USB jack cap
3. Switch o the accessory.
4. Insert the accessory plug into the auxi-
liary socket (USB).
1
1. Auxiliary USB jack
5. Turn the key to “ ”, and then start the
engine.
6. Switch on the accessory.
