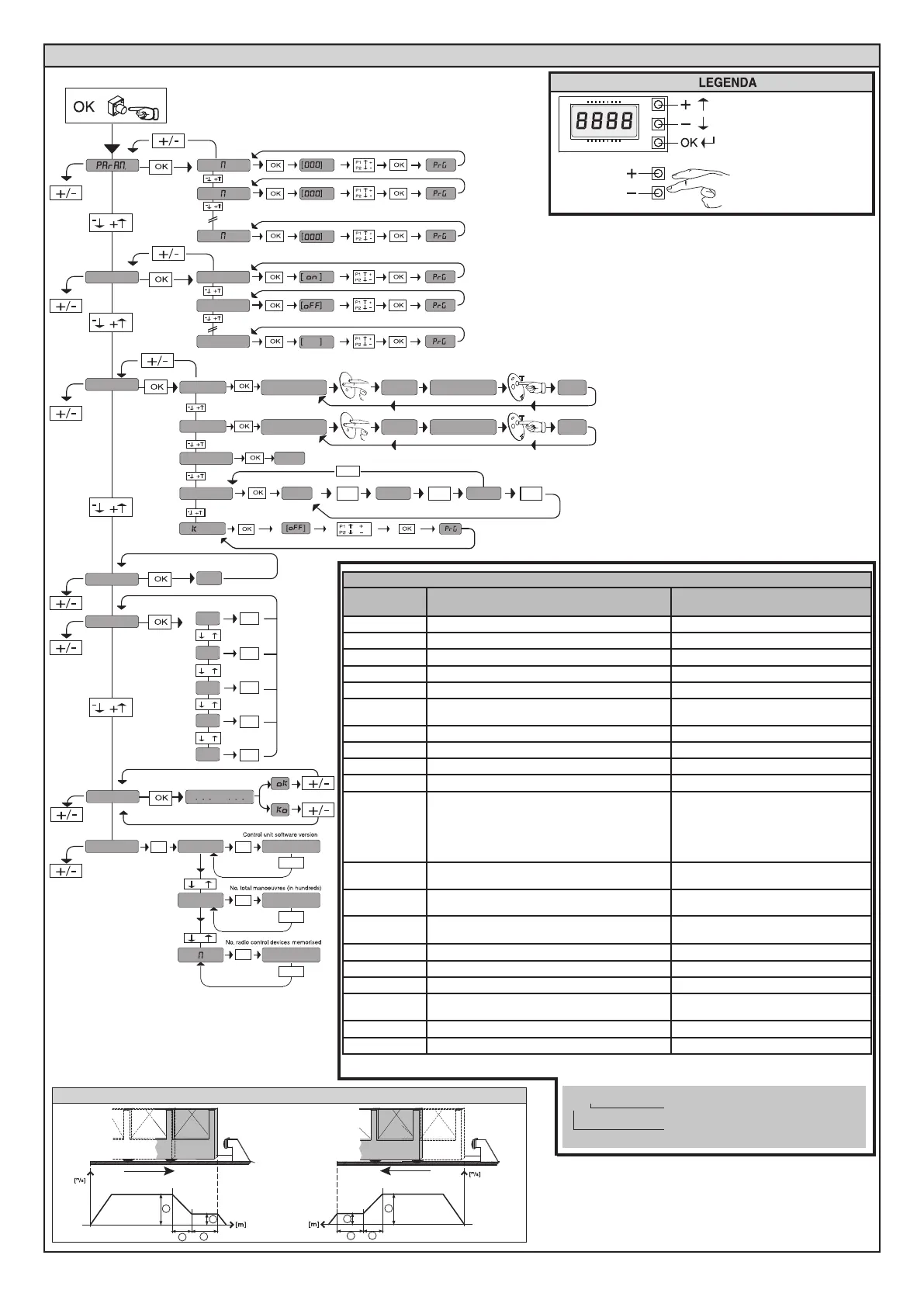

ACCESS TO MENUS Fig. 1
Closing
Opening
para . 1
para . 2
para . . . .
logic. 1logic
logic. 2
logic. . . .
add. start
hidden button
release ok 01
desired button
PRG.
erase 64
COD RX
1 A9C
OK
2 2FD
OK
0 1
OK
Add. 2ch
+/-
radio
ITA
FRA
DEU
ENG
esp
OK
OK
OK
OK
OK
-
+
-
+
-
+
-
+
language
PRG
default
ok 01
hidden button
release
desired button
v
Exit Menù
Conrm/Switch on display
Scroll up
Scroll down
x 2
-
+
-
+
OK OK
stat
vers
bft . . .
+/-
OK
0000
+/-
+/-
n. cycles
OK
00
n. Re otes
autoset
A
F
D
C
B
E
C
F
Fig.2
See PARAMETERS
MENU
See LOGIC
MENU
See RADIO
MENU
DIAGNOSTICS and WARNINGS
DIAGNOSTICS
CODE
DESCRIPTION NOTES
ped
pedestrian input activated
STRE
START input activated
stop
STOP input activated
phot
attivazione ingresso PHOT
bar
SAFETY EDGE input activated
bar2
SAFETY EDGE input activated on slave motor
(opposite leaves connection)
cls
CLOSE input activated
open
OPEN input activated
svo
opening limit switch input activated
svc
closing limit switch input activated
set
the board is standing by to perform a com-
plete opening-closing cycle uninterrupted by
intermediate stops in order to acquire the tor-
que required for movement.
WARNING! Obstacle detection function is
not active
Er01
photocell test error
check photocell connection and/or
logic settings
Er02
safety edge test error
check safety edge connection and/or
logic settings
Er05
safety edge test error on slave motor (opposite
leaves connection)
check safety edge connection and/or
parameter/logic settings
Er1x*
board hardware test error check connections to motor
er3x*
reverse due to obstacle check for obstacles in path
Er4x*
thermal cutout error Allow motor to cool
Er5x*
anomaly in communication w/ remote de-
vices
check Scs1 serial connections
ER61
running o battery --
ErFx*
limit switch error check limit switch connections
* X = 0,1,…,9,A,B,C,D,E,F
35.40
Set torque threshold
Maximum instantaneous motor torque
18 - ARES
D811692 00100_04
