INSTALLATION MANUAL

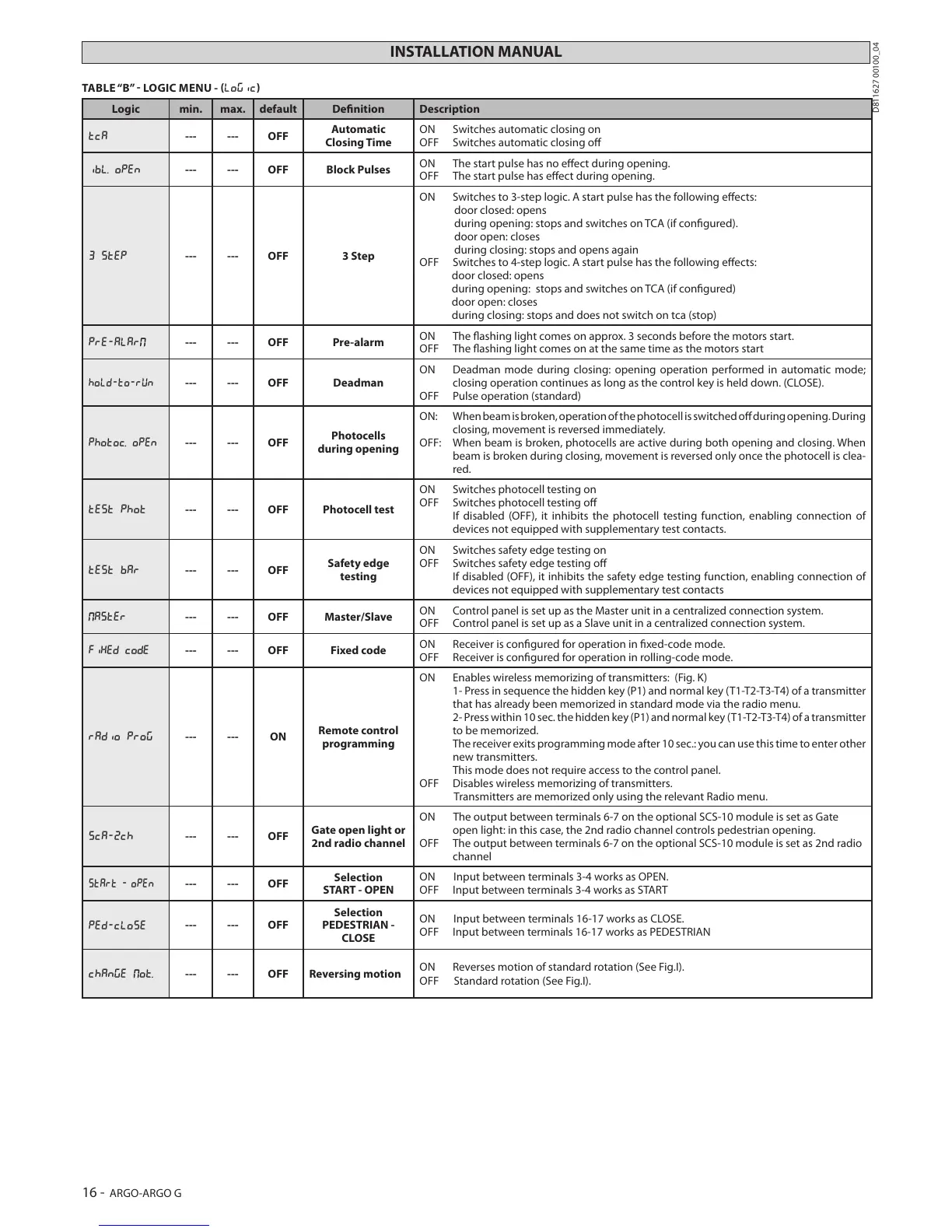

TABLE “B”  LOGIC MENU - logic
Logic min. max. default Denition Description
tca
--- --- OFF
Automatic
Closing Time
ON Switches automatic closing on
OFF Switches automatic closing o
ibl. open
--- --- OFF Block Pulses
ON The start pulse has no eect during opening.
OFF The start pulse has eect during opening.
3 step
--- --- OFF 3 Step
ON Switches to 3-step logic. A start pulse has the following eects:
door closed: opens
during opening: stops and switches on TCA (if congured).
door open: closes
during closing: stops and opens again
OFF Switches to 4-step logic. A start pulse has the following eects:
door closed: opens
during opening: stops and switches on TCA (if congured)
door open: closes
during closing: stops and does not switch on tca (stop)
pre-alar
--- --- OFF Pre-alarm
ON The ashing light comes on approx. 3 seconds before the motors start.
OFF The ashing light comes on at the same time as the motors start
hold-to-run
--- --- OFF Deadman
ON Deadman mode during closing: opening operation performed in automatic mode;
closing operation continues as long as the control key is held down. (CLOSE).
OFF Pulse operation (standard)
photoc. open
--- --- OFF
Photocells
during opening
ON: When beam is broken, operation of the photocell is switched o during opening. During
closing, movement is reversed immediately.
OFF: When beam is broken, photocells are active during both opening and closing. When
beam is broken during closing, movement is reversed only once the photocell is clea-
red.
test phot
--- --- OFF Photocell test
ON Switches photocell testing on
OFF Switches photocell testing o
If disabled (OFF), it inhibits the photocell testing function, enabling connection of
devices not equipped with supplementary test contacts.
test bar
--- --- OFF
Safety edge
testing
ON Switches safety edge testing on
OFF Switches safety edge testing o
If disabled (OFF), it inhibits the safety edge testing function, enabling connection of
devices not equipped with supplementary test contacts
aster
--- --- OFF Master/Slave
ON Control panel is set up as the Master unit in a centralized connection system.
OFF Control panel is set up as a Slave unit in a centralized connection system.
fixed code
--- --- OFF Fixed code
ON Receiver is congured for operation in xed-code mode.
OFF Receiver is congured for operation in rolling-code mode.
radio prog
--- --- ON
Remote control
programming
ON Enables wireless memorizing of transmitters: (Fig. K)
1- Press in sequence the hidden key (P1) and normal key (T1-T2-T3-T4) of a transmitter
that has already been memorized in standard mode via the radio menu.
2- Press within 10 sec. the hidden key (P1) and normal key (T1-T2-T3-T4) of a transmitter
to be memorized.
The receiver exits programming mode after 10 sec.: you can use this time to enter other
new transmitters.
This mode does not require access to the control panel.
OFF Disables wireless memorizing of transmitters.
Transmitters are memorized only using the relevant Radio menu.
sca-2ch
--- --- OFF
Gate open light or
2nd radio channel
ON The output between terminals 6-7 on the optional SCS-10 module is set as Gate
open light: in this case, the 2nd radio channel controls pedestrian opening.
OFF The output between terminals 6-7 on the optional SCS-10 module is set as 2nd radio
channel
start - open
--- --- OFF
Selection
START - OPEN
ON Input between terminals 3-4 works as OPEN.
OFF Input between terminals 3-4 works as START
ped-close
--- --- OFF
Selection
PEDESTRIAN -
CLOSE
ON Input between terminals 16-17 works as CLOSE.
OFF Input between terminals 16-17 works as PEDESTRIAN
change
ot.
--- --- OFF Reversing motion
ON Reverses motion of standard rotation (See Fig.I).
OFF Standard rotation (See Fig.I).
16 - ARGO-ARGO G
D811627 00100_04
