5 Chipset Menu
This submenu allows you to configure the specific features of the chipset installed on
your system. This chipset manage bus speeds and access to system memory
resources, such as DRAM. It also coordinates communications with the PCI bus.

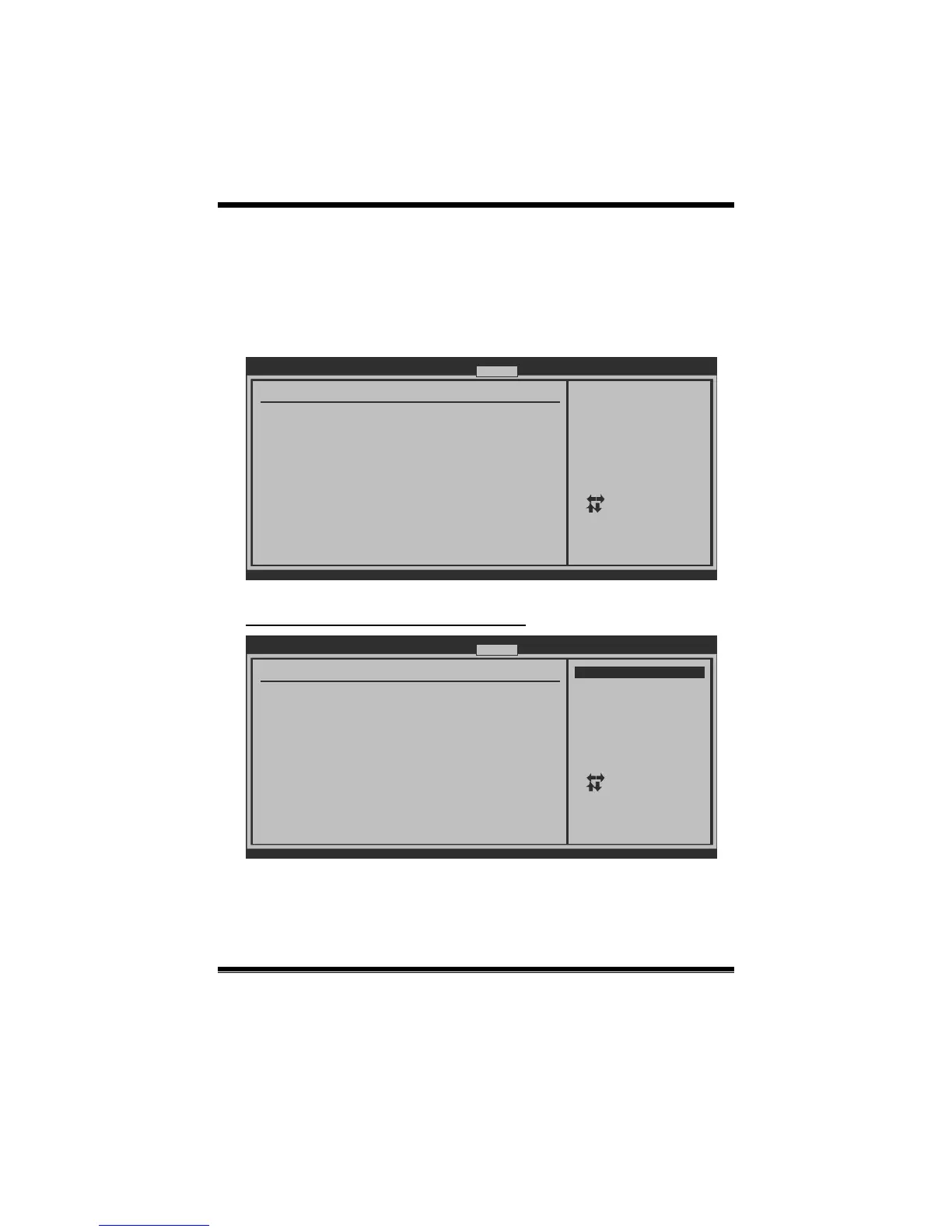

BIOS SETUP UTILITY
Main Advanced
PCIPnP Boot
Chipset Performance
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
Options for SouthBridgAdvanced Chipset Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
> Hyper Transport Configuration
> SouthBridge MCP68 Configuration
Exit
SouthBridge MCP68 Configuration
BIOS SETUP UTILITY
Chipset
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
SouthBridge MCP68 Chipset Configuration
OnChip and PCIe VGA selection[Disable Onchip VGA]
iGPU Frame Buffer Detect [Auto]
AZALIA AUDIO [Auto]
MAC LAN [Auto]
Onboard Lan BootROM [Disabled]
Primary Graphics Adapter [PCI Express -> PCI]
OnChip VGA Frame Buffer Size [32MB]
MAC ID Informaiton :
Options
PCI Express -> PCI ->
IGP -> PCI -> PCI Expr

Biostar N68S3B Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	800, 1066, 1333 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Maximum number of SMP processors	1
Power fan connector	Yes
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Motherboard chipset	Nvidia MCP68S
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista/7
Graphics card	GeForce 7025
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
RAID levels	0, 1
LAN controller	Realtek RTL8201CL
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	170 mm
Width	235 mm
