5
www.bissell.com
This user’s guide has been designed to help
you get the maximum satisfaction from your
BISSELL deep cleaner. You’ll find assembly
and operating instructions, safety precautions,
as well as maintenance and troubleshooting
instructions. Please read this user’s guide
thoroughly before assembling your deep
cleaner.
Your deep cleaner comes in five easy to
assemble components:
• Handle assembly
• Upper body assembly
• Upper hose rack
• Lower body assembly
• Lower hose rack
Three Phillips head screws are included and
can be found taped to the handle assembly.
The only tool you will need to assemble your
cleaner is a Phillips head screwdriver.

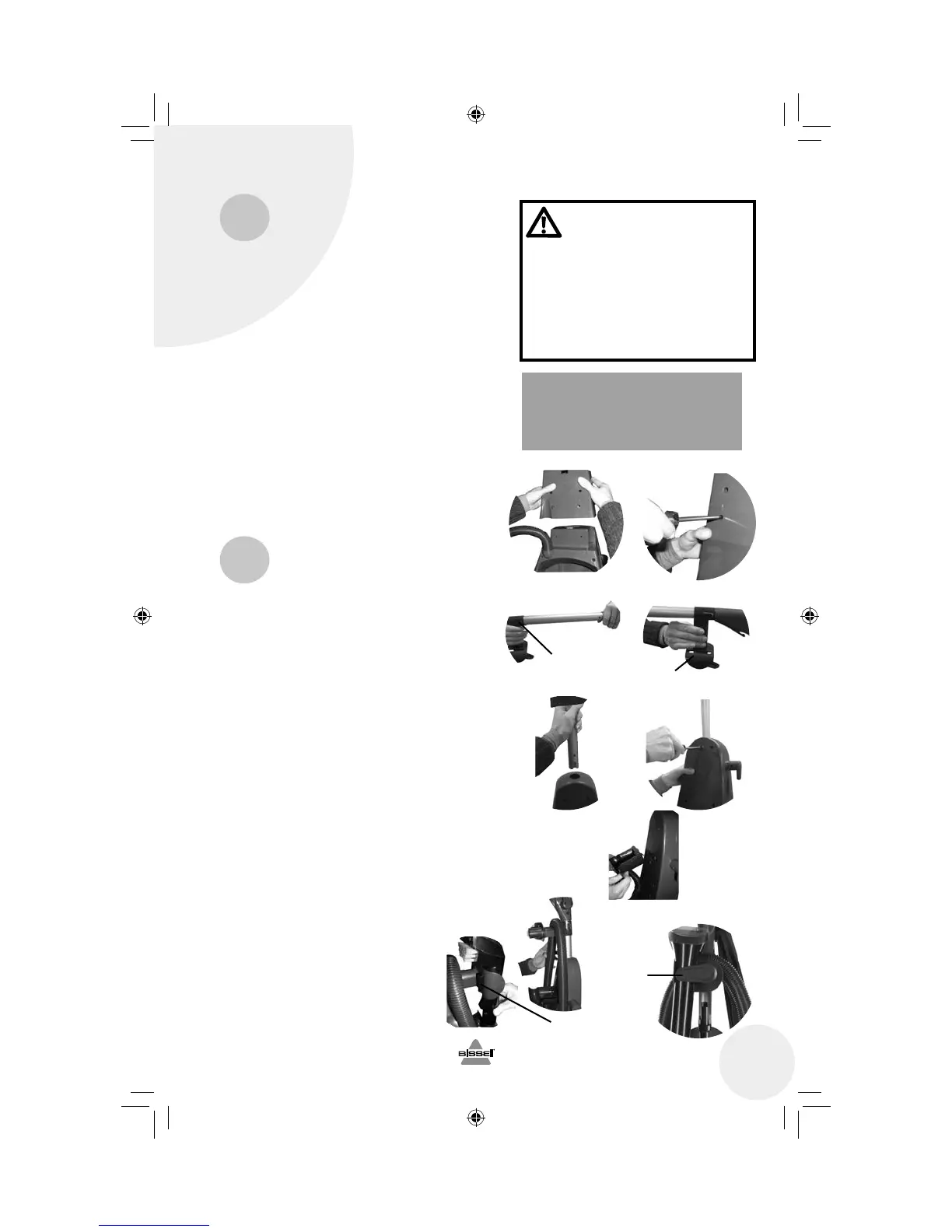

1. Slide upper body assembly onto lower
body and secure with two screws.
2. With the “tabs” on upper hose rack
pointing toward top of handle, attach upper
hose rack to handle assembly by sliding it to
top of handle until it can go no further. Turn
hose rack until it snaps into place.
3. Slide handle assembly down into upper body
until it will go no further and secure with
screw.
4. Attach lower hose rack to back of upper
body by pushing into open slots and sliding
down until it snaps into place.
5. Wrap flex hose around hose rack and secure
it into notched out holder as shown.
6. Keep flex hose locked in place with hose
secure latch.
How to use this guide
Assembly
WARNING:
Do not plug in your cleaner
until you have completely
assembled it per the
following instructions
and are familiar with all
instructions and operating
procedures.
1.
2.
3.
4.
5.
6.
Tip: Deep cleaning carpeting
regularly can reduce dust and allergens
in your home.
Tab
Upper Hose Rack
Notch
Hose
Secure
Latch
ug120-4039_1623E_508.indd 5ug120-4039_1623E_508.indd 5 5/19/08 12:29:17 PM5/19/08 12:29:17 PM
