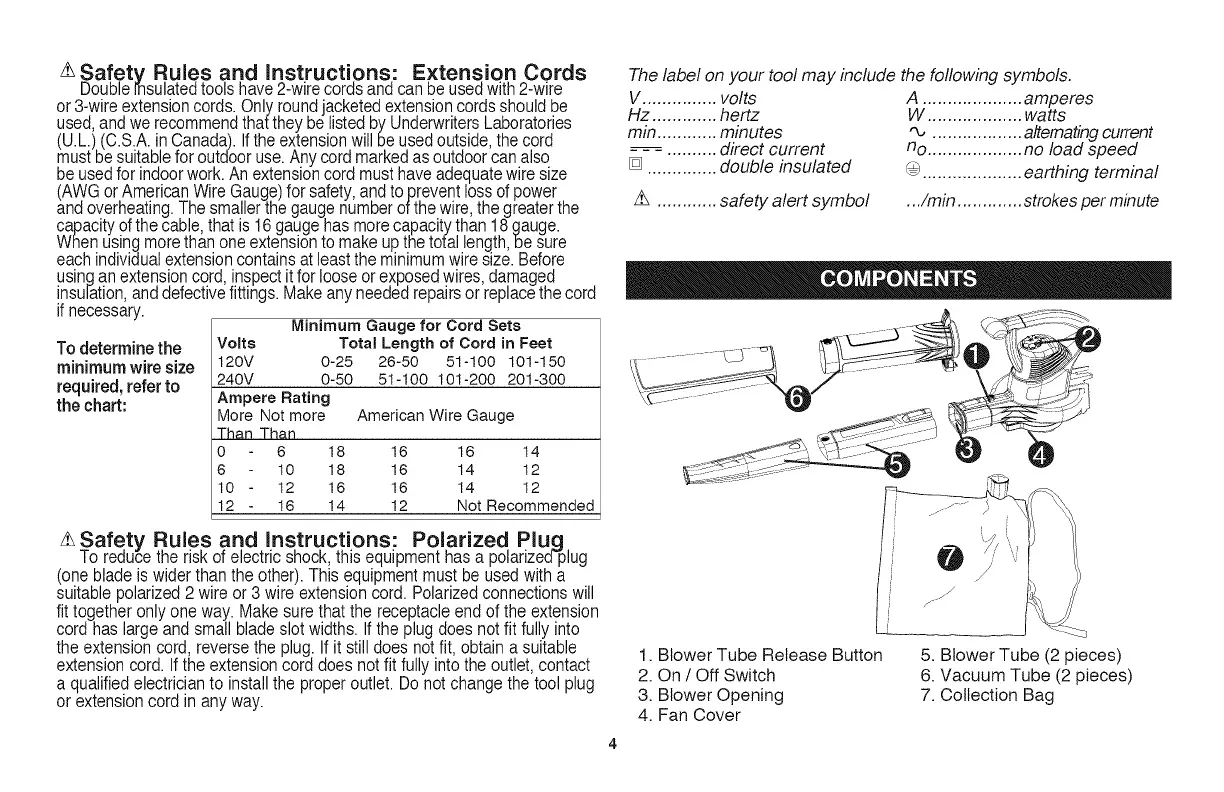

z_Safety Rules and instructions: Extension Cords
Double rnsulatedtools have 2-wire cordsand can be used with 2-wire
or 3-wireextension cords. Only round jacketedextension cords should be
used, and we recommendthat they be listedby UnderwritersLaboratories
(U.L.) (C.S.A.inCanada). Ifthe extension will be used outside,the cord
must be suitable for outdoor use. Any cord marked as outdoor can also
be used for indoorwork. An extension cord must have adequate wire size
(AWG orAmerican Wire Gauge) for safety, and toprevent lossof power
and overheating. Thesmaller the gauge number ofthe wire, the greater the
capacity of the cable, that is 16gauge hasmore capacity than 18gauge.
When using morethan one extension to make upthe total length,be sure
each individual extension contains atleastthe minimum wiresize. Before
using an extension cord,inspect it for loose or exposed wires, damaged
insulation, and defectivefittings. Make any neededrepairs or replace the cord
if necessary.
Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet
Todetermine the
minimum wire size
required, refer to
the chart:
120V 0-25
240V 0-50
Ampere Rating
More Not more
Than Than
0 6 18
6 10 18
10 - 12 16
12 - 16 14
26-50 51-100 101-150
51-100 101-200 201-300
American Wire Gauge
16 16 14
16 14 12
16 14 12
12 Not Recommended
z_Safety Rules and instructions: Polarized Pluq
To reduce the risk of electric shock, this equipment has a polarized-plug
(one blade is wider than the other). This equipment must be used with a
suitable polarized 2 wire or 3 wire extension cord. Polarized connections will
fit together only one way. Make sure that the receptacle end of the extension
cord has large and small blade slot widths. If the plug does not fit fully into
the extension cord, reverse the plug. If it still does not fit, obtain a suitable
extension cord. If the extension cord does not fit fully intothe outlet, contact
a qualifiedelectrician to installthe proper outlet. Do not change the tool plug
or extension cord inany way.
The label on your tool may include the following symbols.
V ............... volts A .................... amperes
Hz ............. hertz W ................... watts
min ............ minutes ,x, .................. alternating current
- - -. ......... direct current no................... no load speed
[] .............. double insulated _ .................... earthing terminal
z_ ............ safety alert symbol .../min ............. strokes per minute
1. Blower Tube Release Button
2. On / Off Switch
3. Blower Opening
4. Fan Cover
5. Blower Tube (2 pieces)
6. Vacuum Tube (2 pieces)
7. Collection Bag
