NOTE:Ensuretheblowerisswitchedoffanddisconnectedfrom
thepowersupplybeforeattachingorremovingtheblowertubes.
Thetubeassemblymustbeassembledtothehousingbeforeuse.

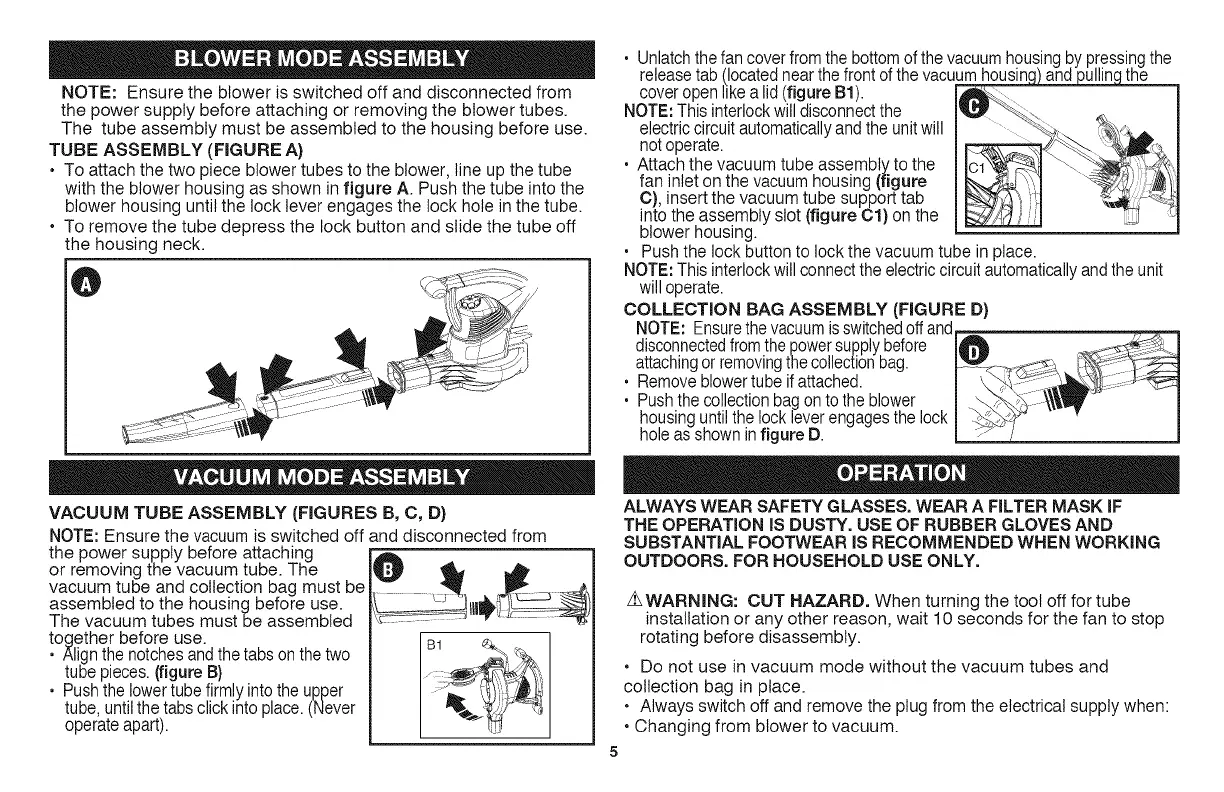

TUBEASSEMBLY(FIGUREA)
• Toattachthetwopieceblowertubestotheblower,lineupthetube
withtheblowerhousingasshowninfigureA.Pushthetubeintothe
blowerhousinguntilthelockleverengagesthelockholeinthetube.
• Toremovethetubedepressthelockbuttonandslidethetubeoff
thehousingneck.
VACUUM TUBE ASSEMBLY (FIGURES B, C, D)
NOTE: Ensure the vacuum is switched off and disconnected from
the power supply before attaching
or removing the vacuum tube. The
vacuum tube and collection bag must be
assembled to the housing before use.
The vacuum tubes must be assembled
together before use.
, Alignthe notchesand the tabs on the two
tube pieces. (figure B)
, Push the lower tubefirmly intothe upper
tube, untilthe tabs click intoplace. (Never
operate apart).
. Unlatch the fan coverfrom the bottom of the vacuumhousin( ;Ingthe
release tab .(locatednear the front ofthe vacuum housinc the
cover open hkea lid(figure B1).
NOTE: This interlockwill disconnect the
electric circuit automaticallyand the unit will
not operate. ....
. Attach the vacuum tube assembly to the
fan inlet on the vacuum housing (figure
C), insert the vacuum tube support tab
into the assembly slot (figure Cl) on the
blower housing.
. Push the lock button to lock the vacuum tube in place.
NOTE: This interlockwill connect the electric circuit automaticallyand the unit
will operate.
COLLECTION BAG ASSEMBLY (FIGURE D}
NOTE: Ensurethevacuum isswitchedoff and--
disconnectedfromthe power supplybefore I0 __ ....
attachingor removingthe collectionbag. [___7_<:_.__-_ T__::_
. Remove blower tube ifattached. | \ _"'_.'
Push the collection bag on tothe blower | ,_
housing untilthe lock lever engagesthe lock | _">_
hole as shown infigure D.
ALWAYS WEAR SAFETY GLASSES. WEAR A FILTER MASK IF
THE OPERATION IS DUSTY. USE OF RUBBER GLOVES AND
SUBSTANTIAL FOOTWEAR iS RECOMMENDED WHEN WORKING
OUTDOORS. FOR HOUSEHOLD USE ONLY.
z_WARNING: CUT HAZARD. When turning the tool off for tube
installation or any other reason, wait 10 seconds for the fan to stop
rotating before disassembly.
• Do not use in vacuum mode without the vacuum tubes and
collection bag in place.
• Always switch off and remove the plug from the electrical supply when:
• Changing from blower to vacuum.
