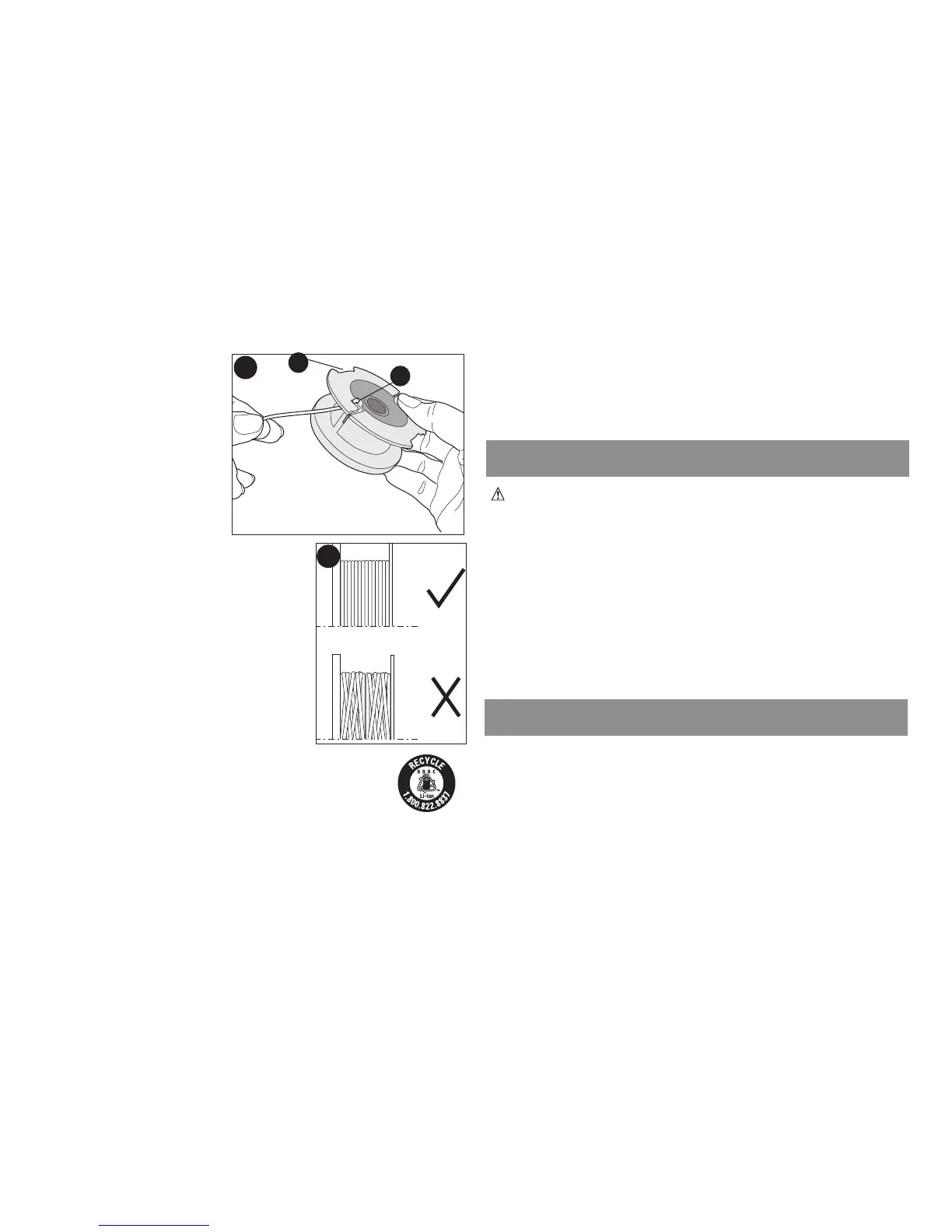

• Insert the 3/4 inch (19mm)
end of the bulk line into the
hole (t) in the spool
adjacent to the slot as
shown in figure 16.
• Wind the cutting line onto the spool in
the direction of the arrow on the spool.
Make sure to wind the line on neatly and
in layers. Do not crisscross (figure 17).
• When the wound cutting line reaches
the recesses (u), cut the line. (figure 16).
• Fit the spool onto the tool as described
in “REPLACING THE SPOOL”.
THE RBRC™ SEAL
The RBRC™ (Rechargeable Battery Recycling
Corporation) Seal on the LI-ION battery (or battery pack)
indicates that the costs to recycle the battery (or battery
pack) at the end of its useful life have already been paid
by Black & Decker.
RBRC™ in cooperation with Black & Decker and other battery users,
has established programs in the United States to facilitate the
collection of spent LI-ION batteries. Help protect our environment and
conserve natural resources by returning the spent LI-ION battery to
an authorized Black & Decker service center or to your local retailer
for recycling. You may also contact your local recycling center for
information on where to drop off the spent battery.
RBRC™ is a
registered trademark of the Rechargeable Battery Recycling
Corporation.
WARNING: To avoid serious injury, remove the battery from
the tool before performing any maintenance.
1. Keep the air intake slots clean to avoid overheating.
2. Your trimmer line can dry out over time. To keep your line in top
condition, store spare pre-wound spools or bulk line in a plastic,
sealable bag with a tablespoon of water.
3. Plastic parts may be cleaned by using a mild soap and a damp rag.
4. The line cutter on the edge of the guard can dull over time. It is
recommended you periodically touch-up the sharpness of the
blade with a file.
IMPORTANT: To assure product SAFETY and RELIABILITY,
repairs, maintenance and adjustment should be performed by
authorized service centers or other qualified service organizations,
always using identical replacement parts.
TOOL RUNS SLOWLY
• Check that the spool housing can rotate freely. Carefully clean it if
necessary.
• Check that the cutting line does not protrude more than
approximately 5-3/8 inches (136mm) from the spool. If it does, cut
it off so that it just reaches the line trimming blade.
AUTOMATIC LINE FEED DOES NOT WORK
• Keep the tabs depressed and remove the spool from the spool
housing in the trimmer head.
