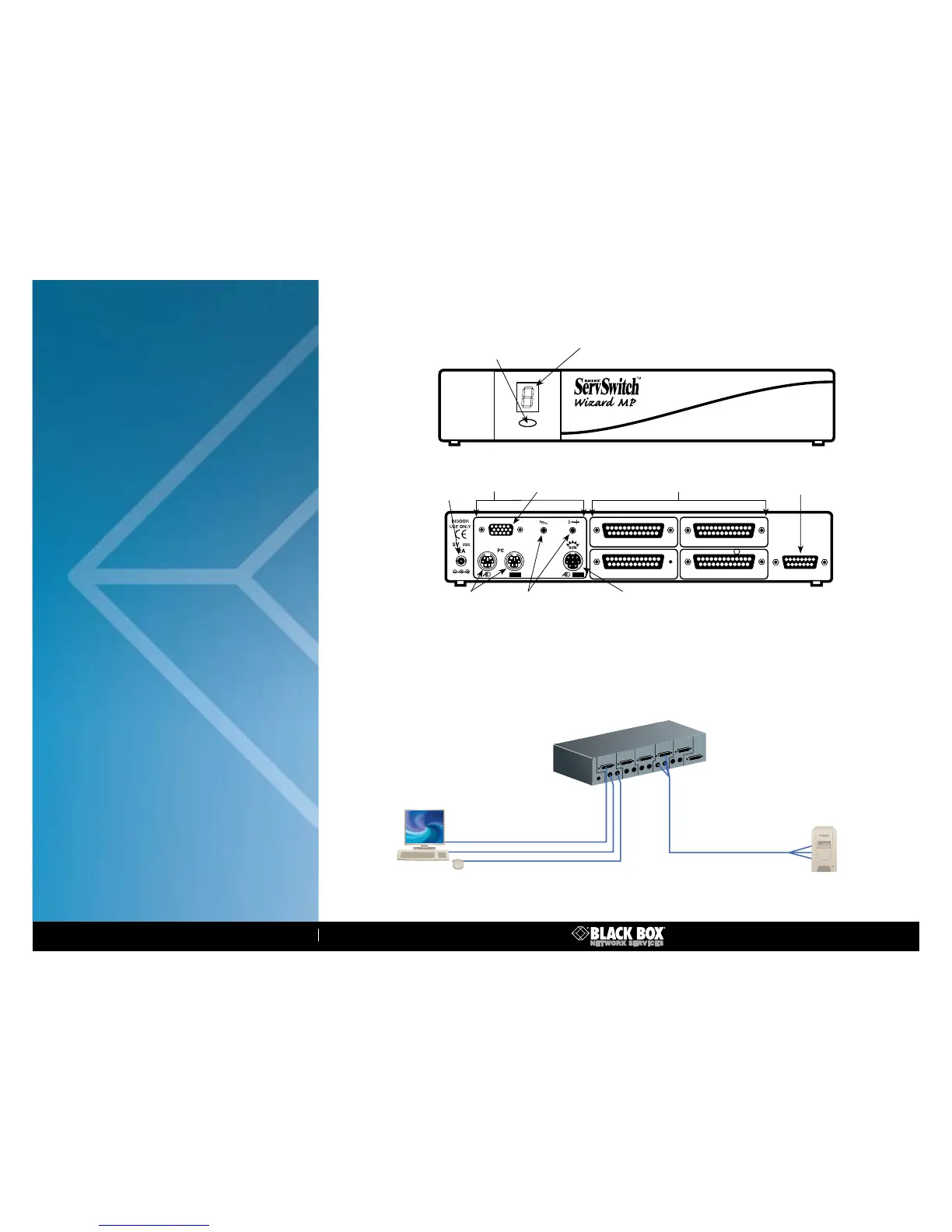

The ServSwitch Wizard MP for PC and Sun (KV804A model shown here) is a KVM- and audio- sharing
device that supports a wide range of IBM PC and Sun compatible hardware and software platforms.
Control port PS/2 mouse
(left) and keyboard (right)
connectors
Control port microphone (left)
and headphone/speaker
(right) connectors
Control port keyboard/
mouse connector
Connector
for optional power
supply
Control port monitor
connector
CPU ports
1 through 4
Expansion port for Remote
Control Module and firmware
upgrades
Control
port
Button for changing channels
and entering configuration
mode
Display shows status and
mouse/keyboard data activity
The ServSwitch Wizard DVI (4-port single-head model shown here) can support DVI video cards
with up to four video outputs. They also support user stations with as many as four monitors.
User Station Monitor,
Keyboard, and Mouse
CPU
EHN450
ServSwitch Wizard DVI
(KV1004A-R2)
