WATER SUPPLY: Connect incoming water supply hose to ½” I.D. hose fitting. Water supply source
must be able to provide 140°F water minimum at 20 PSI flow pressure.
DRAIN: Connect 1 ½” drain tube to waste connection. Machines equipped with optional drain pump
will have a ¾” hose to be inserted into an elevated drain or sink (see section 5).
ELECTRICAL: Check machine data plate before making any electrical connections. All supply
connections must correspond with data plate information. Check pumps rotation, pump turns
clockwise when viewed from rear of motor; if not reverse leads.

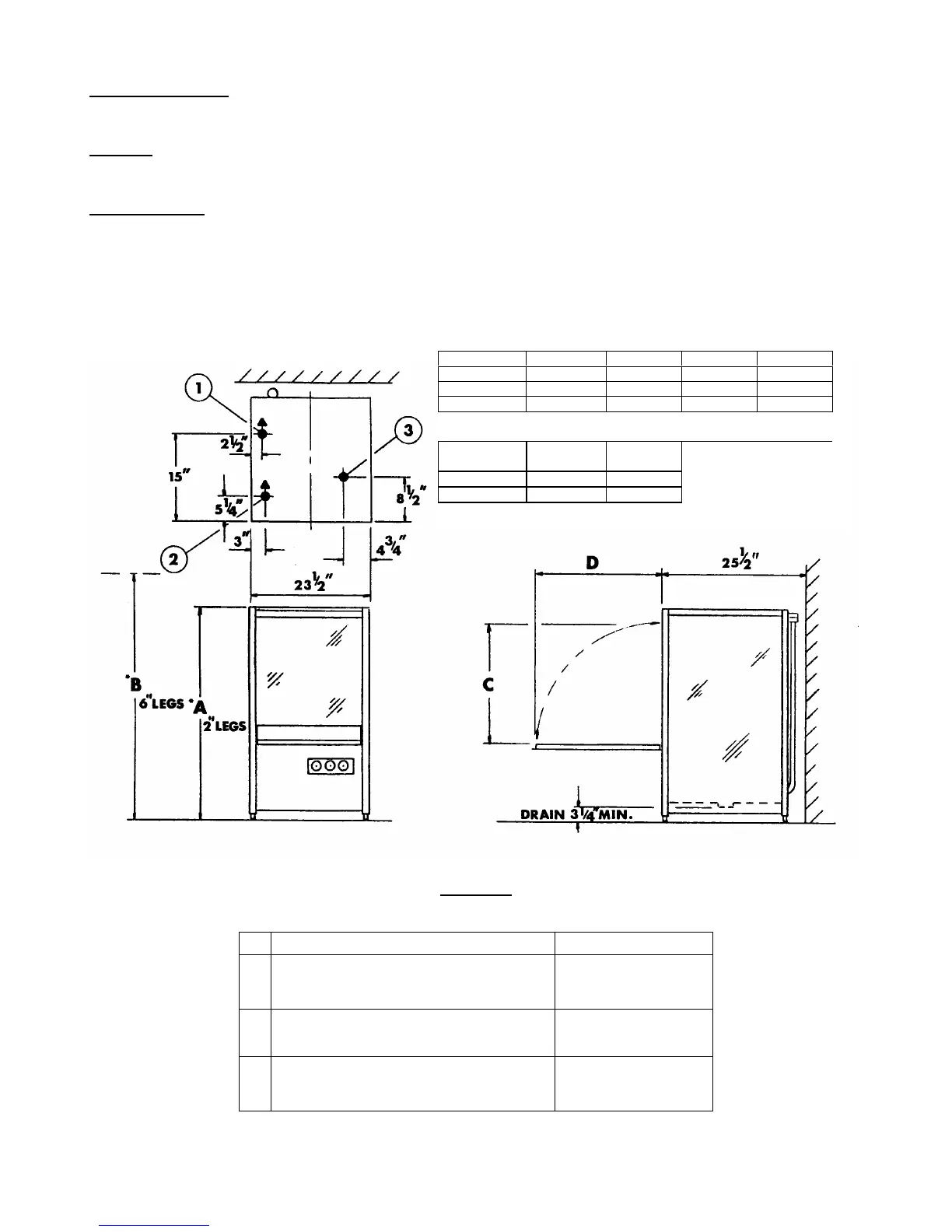

MODEL A B C D
UC-21 33 ¼” 37 ¼” 12” 15 ½”
UC-21T 39 ¼” 43 ¼” 18” 21 ½”
UC-21XT 45 ¼” 49 ¼” 24” 27 ½”
Dimensions A & B are ± 1”
DIM. FROM
FLOOR
2” LEG 6” LEG
1 4” 8”
2 4 ½” 8 ½”
FIGURE 2
Size of Connection
1 140° Hot Water Connection 1/2”
2
Electrical Connection
(Check Data Plate Requirements to Correspond
with Correct Power Supply)
1”
3 Drain 1 ½”
