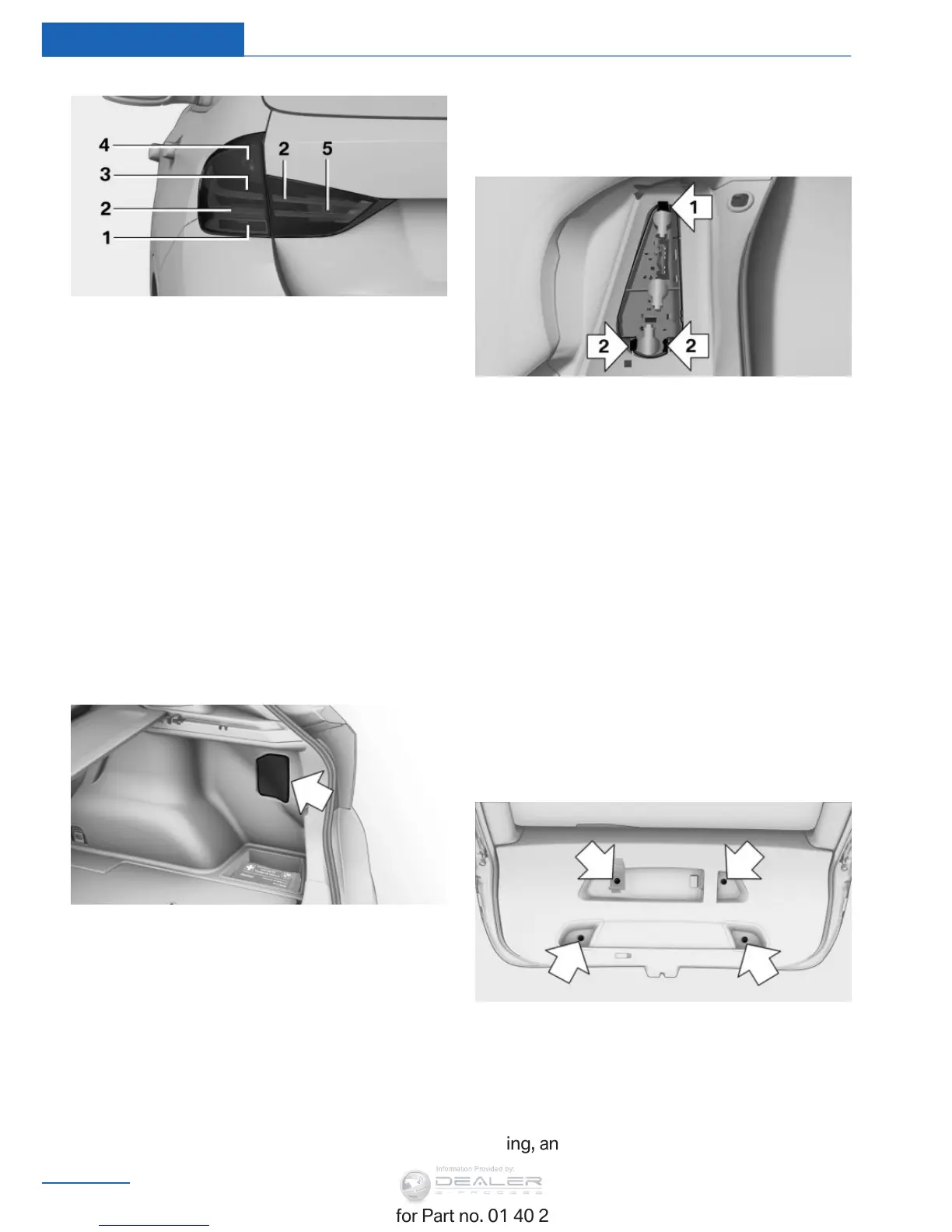

1 Backup lamp
2 Roadside parking lamp/tail lamp LED
3 Brake lamp
4 Turn signal
5 Inner brake lamp
If bulb 2 is defective, please contact the serv‐
ice center.
Lamps in fender
All bulbs are integrated in a central bulb holder.
1. Switch off the lamps and take the remote
control out of the ignition lock.
2. Press the cover out of the rear cargo area
side trim and remove it.
3. Disengage the bulb holder by pressing
down the upper clip, arrow 1.
On the right side, take the button with the
fuel pump symbol out of the holder toward
the front if necessary.
4. Squeeze the lower clips, arrows 2, and take
out the bulb holder.
5. Apply gentle pressure to the bulb while
turning it to the left for removal and re‐
placement.
6. Re-engage the bulb holder so that it audi‐
bly clicks into place.
7. Replace the cover.
Inside brake lamps in the tailgate
1. Switch off the lamps and take the remote
control out of the ignition lock.
2. Take the warning triangle out of the
bracket, refer to page 256.
3. Release the screws of the tailgate panel,
arrows.
4. Unclip the tailgate panel by pulling it down‐
ward.
5. Push out the handle for opening manually
in the event of an electrical malfunction, re‐
fer to page 36, insert it through the open‐
ing, and take off the panel.
Seite 252
Mobility Replacing components
252
Online Edition for Part no. 01 40 2 957 353 - X/14
