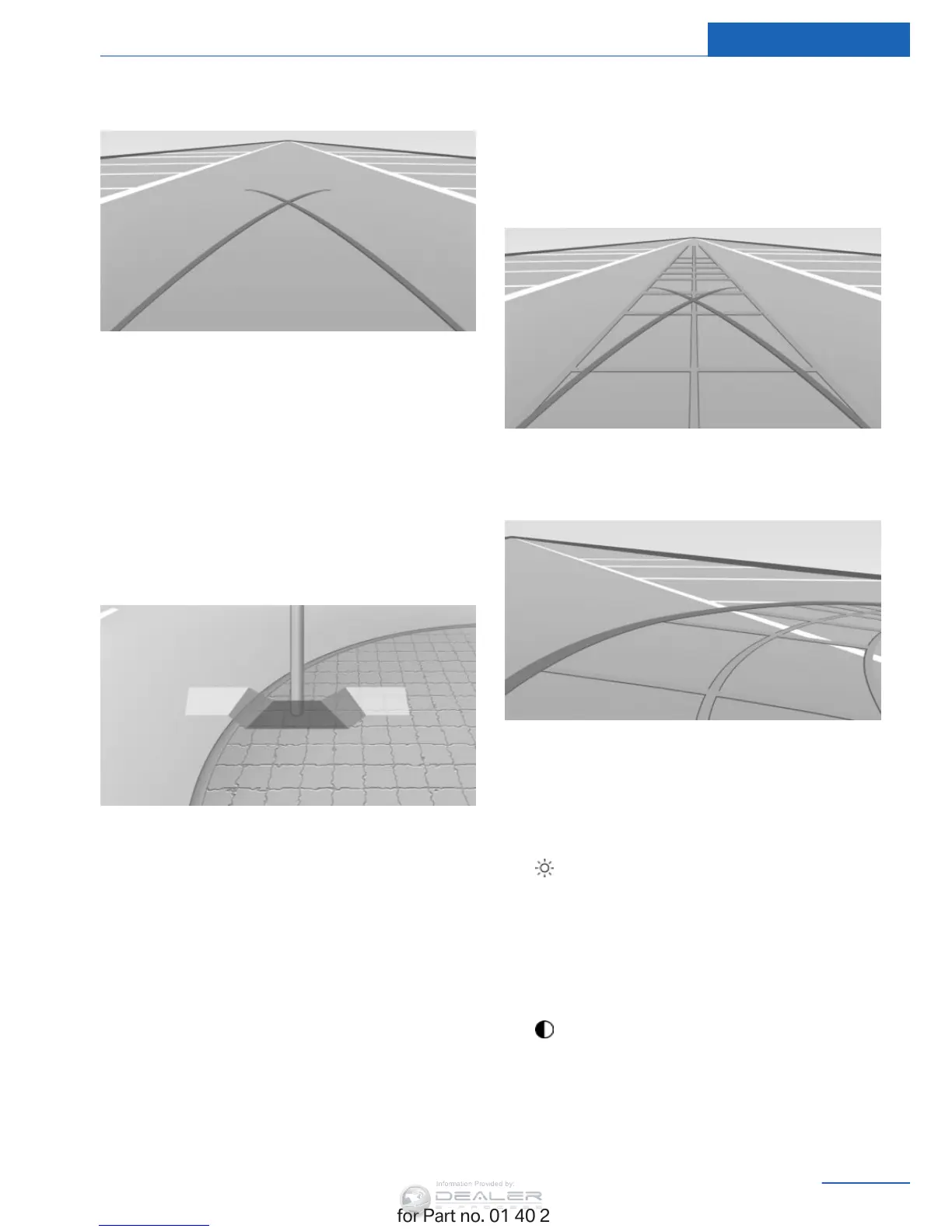

Turning circle lines
▷ Turning circle lines can only be superim‐
posed on the rearview camera image to‐
gether with pathway lines.
▷ They show the course of the smallest pos‐
sible turning radius on a level road.
▷ Only one turning radius line is displayed af‐
ter the steering wheel is turned past a cer‐
tain angle.
Obstacle marking
Obstacle markings can be faded into the image
of the rearview camera.
Their colored margins match the markings of
the PDC. This simplifies estimation of the dis‐
tance to the object shown.
Parking using pathway and turning
radius lines
1. Position the vehicle so that the turning ra‐
dius lines lead to within the limits of the
parking space.
2. Turn the steering wheel to the point where
the pathway line covers the corresponding
turning radius line.
Display settings
Brightness
With the rearview camera switched on:
1. Select the symbol.
2. Turn the controller until the desired setting
is reached, and press the controller.
Contrast
With the rearview camera switched on:
1. Select the symbol.
2. Turn the controller until the desired setting
is reached, and press the controller.
Seite 155
Driving comfort Controls
155
Online Edition for Part no. 01 40 2 954 418 - II/15
