G12�Driver�Assistance�Systems
15.�Cameras
66
The�optional�equipment�Surround�View�(SA�5DL)�is�part�of�ZDB�Driver�Assistance�Plus�and�provides
support�when�parking,�maneuvering,�as�well�as�at�unclear�exits�and�crossroads.�In�the�G12,�the
Surround�View�optional�equipment�(OE�5DL)�is�only�available�in�conjunction�with�the�rear�view�camera
optional�equipment�(OE�3AG).
Panorama�View�is�part�of�the�Surround�View�optional�equipment�(OE�5DL).
The�rear�view�camera�is�available�as�standard�equipment�(OE�3AG).
15.1.�Surround�view
The�Surround�View�optional�equipment�(OE�5DL)�shows�the�vehicle�surroundings�and�displays�them
in�TOP�View�and�3D�View�on�the�central�information�display.
The�system�comprises�the�front�camera,�the�two�cameras�integrated�in�the�exterior�mirrors,�the�rear
view�camera�(RFK)�and�the�top�rear�side�view�camera�(TRSVC)�control�unit.�The�cameras�record
the�area�from�various,�selectable�angles�and�send�this�information�to�the�TRSVC�control�unit�via
Ethernet.�The�images�from�the�four�cameras�are�combined�into�a�panorama�view�around�the�vehicle
from�different�angles�using�3D�computer�graphics.�The�video�signals�are�transmitted�from�the�TRSVC
control�unit�via�an�Ethernet�line�to�the�head�unit.�From�there�the�video�signal�is�transmitted�to�the
central�information�display�via�an�Automotive�Pixel�Link�line.�The�driver�can�choose�from�preset�views
or�can�freely�select�the�view�(for�example�towbar�zoom�and�car�wash�entrances).
In�addition,�assistance�functions�such�as�guidance�lines�can�be�shown�on�the�central�information
display.

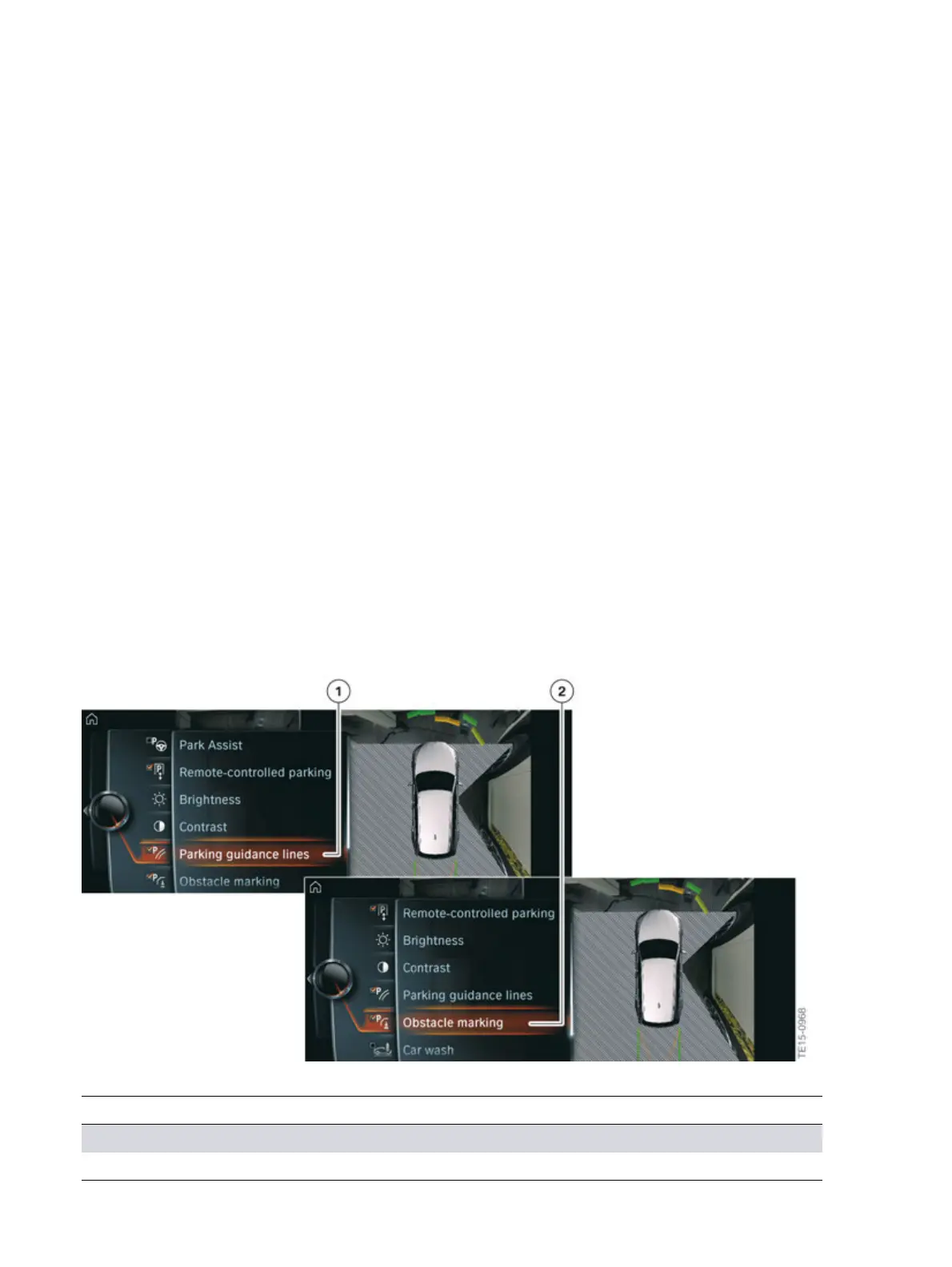

G12�configuration�menu�view�for�Obstacle�marking�and�Parking�assistance�lines�on�the�CID
Index Explanation
1 "Parking�assistance�lines"
2 "Obstacle�marking"
